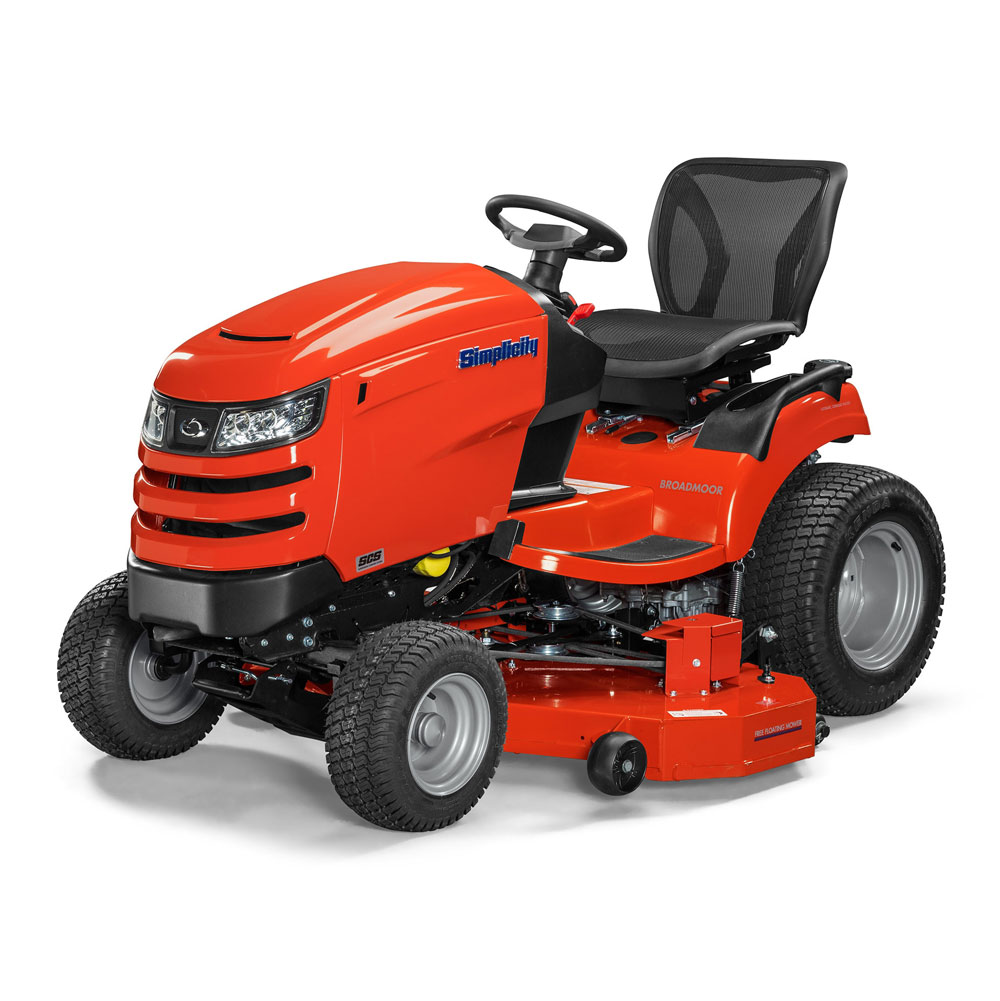

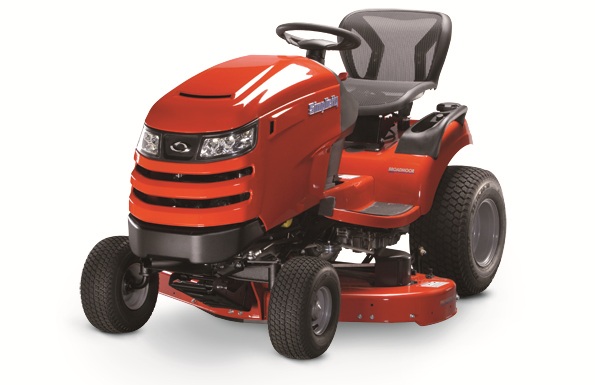

Broadmoor™ Lawn Tractor

LUXURIOUS MOWING

The Broadmoor lawn tractor has what it takes to create the best looking lawn on the block. By marrying performance features with comfort features, we've created a masterpiece that is more like a luxury experience than a chore.

Features

AUTOMOTIVE-LIKE POWER STEERING

Reduce steering effort for a more enjoyable cutting or plowing experience with the automotive-like power steering. Select models.

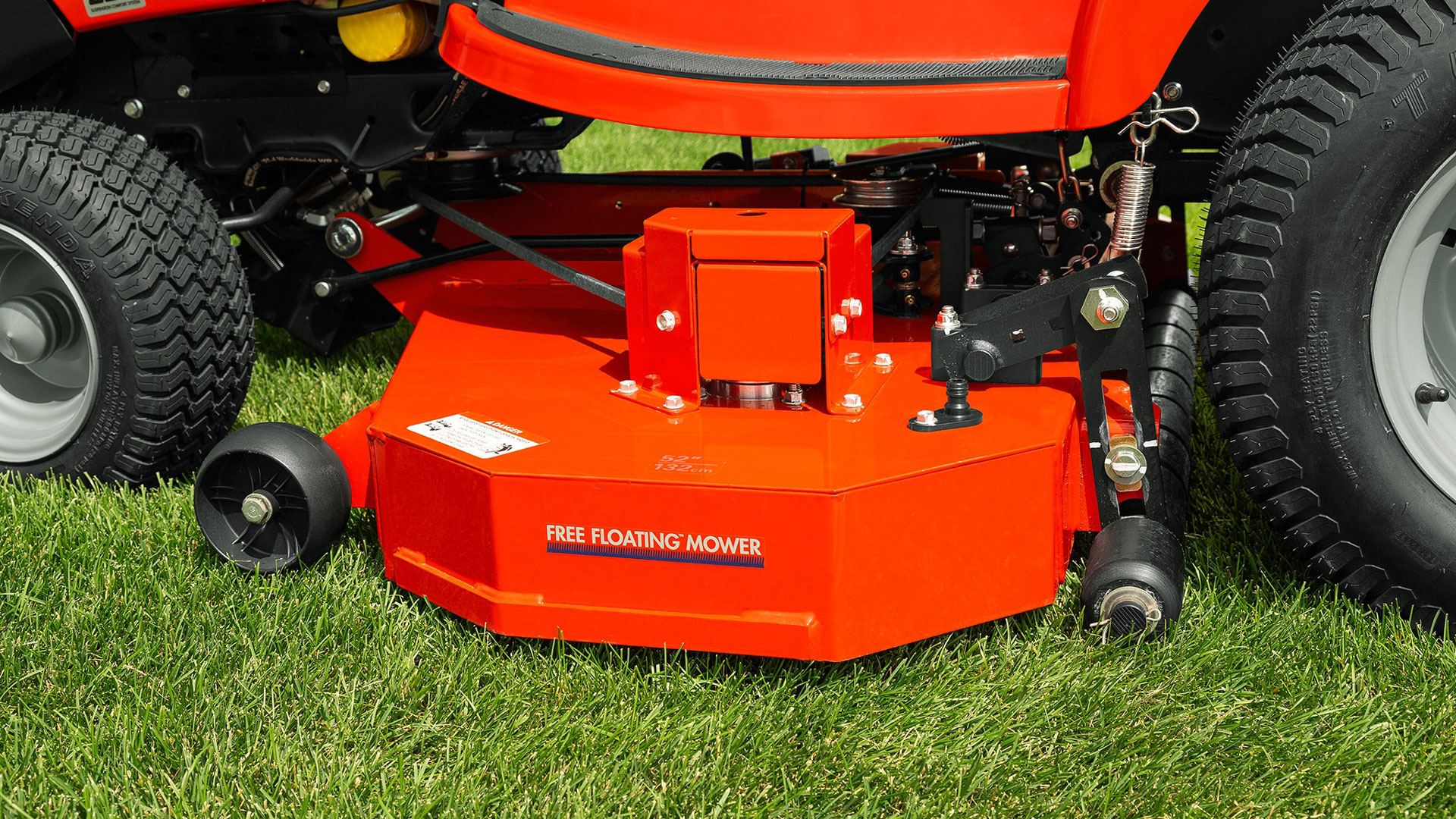

FREE FLOATING™ MOWER DECK

Simplicity's fabricated mower deck allows the mower to follow the contours of your lawn giving a scalp-free cut. The full-width rear rollers provide a smooth finish allowing you to create ballpark lawn stripes and be the envy of the neighborhood.

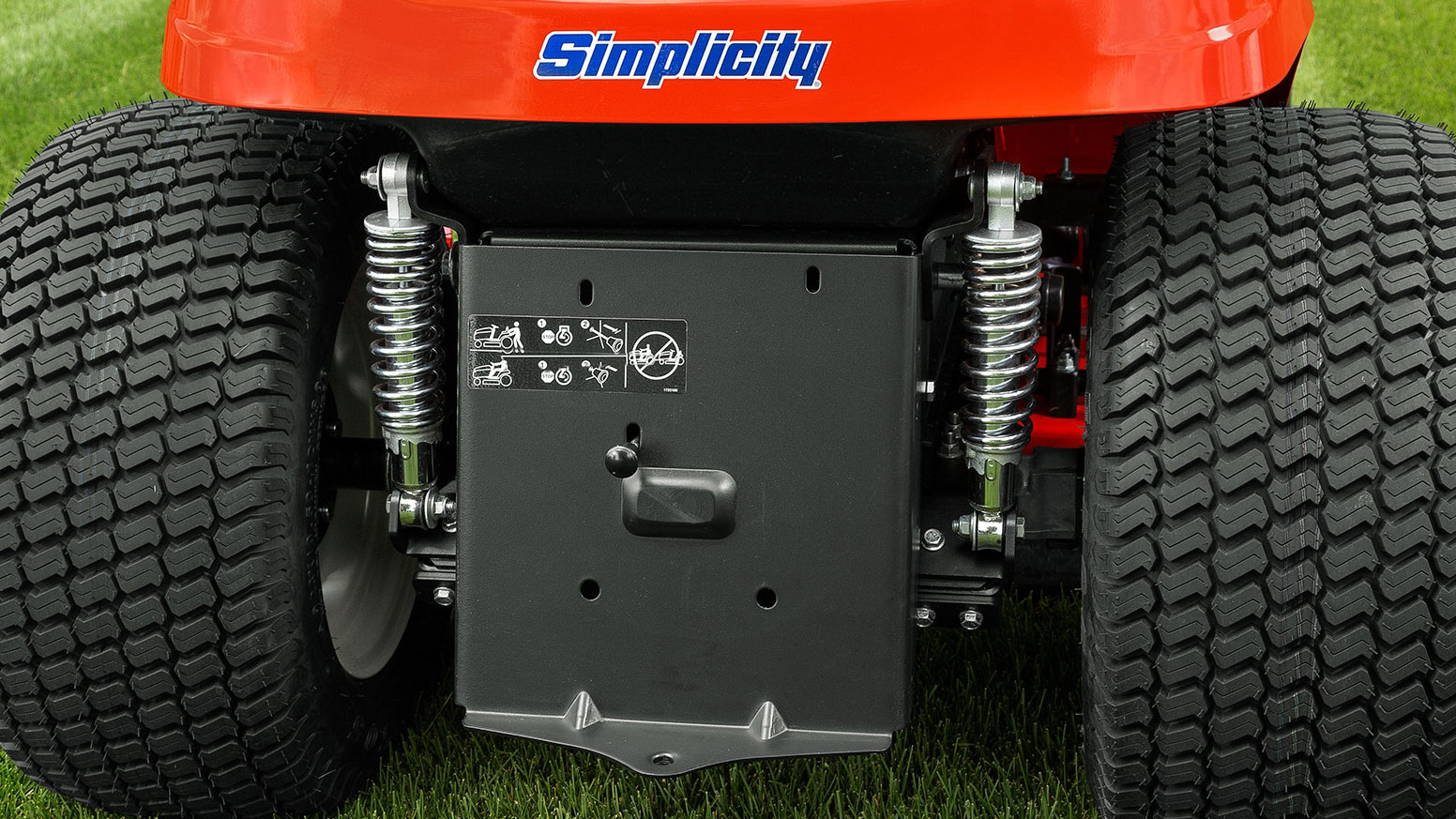

SUSPENSION COMFORT SYSTEM™

The exclusive rear Suspension Comfort System™ (SCS) reduces the impact felt at faster mowing speeds. Plus, an ergonomic mesh seat keeps you cool and comfortable.

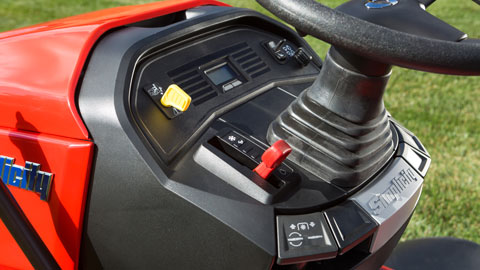

DELUXE TRACTOR CONTROL PANEL

Everything you need is right on the dash. Whether it's the clock, hour monitor, height-of-cut adjustment, or the push button start, you will be able to operate your tractor with ease.

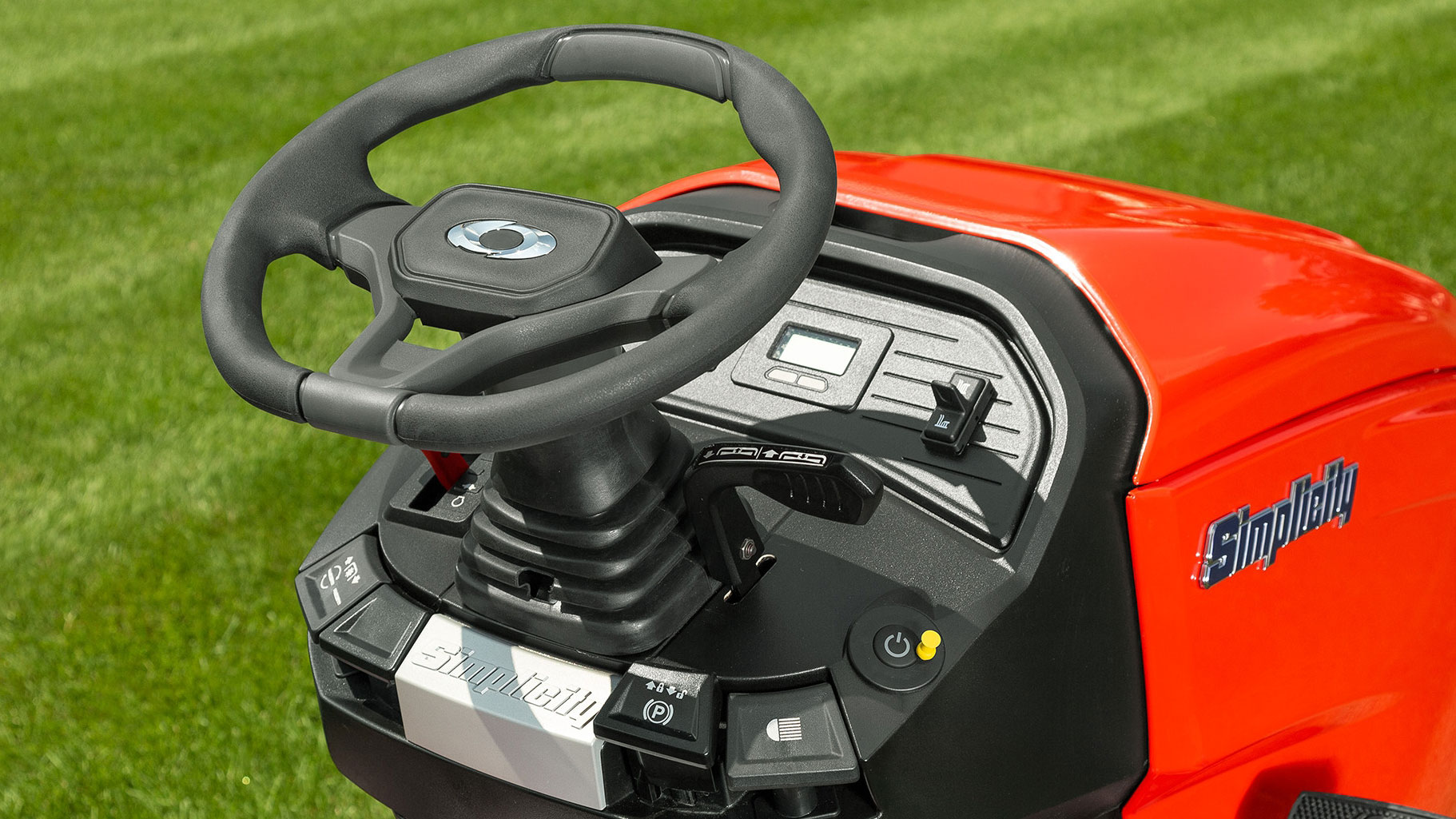

ELECTRIC HEIGHT-OF-CUT

Easily change the cutting height of the mower deck with the simple touch of a switch.

RELIABLE POWER AND PERFORMANCE

Designed to deliver world-class endurance and power, the Briggs & Stratton PXi Series™ Engine comes fully featured. Enhanced power, easy starting, smooth and quiet operation, and professional results are just a few of them.

Specs

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
2691670
Marketing Model
23/44"
US MSRP †
$5,499.00
CAN MSRP †
$7,149.00
Start Type
Electric, Push Button
Power Rating **
23
Cylinders
2
Engine Displacement (cc)
724
Choke/Throttle
No Choke
Fuel Tank Capacity (gal)
3.6
Battery (cca)
230
Transmission Type
Tuff Torq® K57
Transmission Differential
Hydrostatic
Ground Speed-Fwd (mph)
0 - 5.8
Ground Speed-Rev (mph)
0 - 3.5
Automatic Controlled Traction™
Standard
4-Wheel Drive
N/A
Brake
Disc
Frame Steel
10-Gauge
Front Axle
Cast-Iron
Front Tires (in)
15 x 6 - 6 / Turf
Rear Tires (in)
22 x 10 - 10 / Turf
Attachment Lift
Manual
Seat
High-Back Mesh
Suspension
N/A
Mower Deck Type
Deep Profile Free Floating™
Cutting Width (in)
44
Number of Blades
3
Height-of-Cut (in)
1.5 - 4
Height-of-Cut Positions
Infinite/Electric
Blade Engagement
Electric PTO Switch
Rear Rollers
Standard, Full-Width Striping
Mower Deck Removal
Quick Hitch™
Spindle
Cast-Aluminum
Mower Steel Gauge
12-Gauge
Washout Port
Standard
Cruise Control
Standard
Steering
Manual
Headlights
Standard, LED
Hour Meter
Standard
Fuel Level Indicator
Digital, Dash
12 Volt DC Outlet
true
Hand Grips
Standard
Deluxe Instrumental Panel
N/A
Cup Holder
Standard
Turning Radius (in)
18
Assembled Length (in)
75
Assembled Width (in)
54
Assembled Height (in)
47
Consumer Warranty (Product) ***
3-Years
Commercial Warranty (Product) ***
90-Days

*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
2691671
Marketing Model
23/48
US MSRP †
$5,849.00
CAN MSRP †
$7,599.00
Start Type
Electric, Push Button
Power Rating **
23
Cylinders
2
Engine Displacement (cc)
724
Choke/Throttle
Ready Start®, Single-Lever
Fuel Tank Capacity (gal)
3.6
Battery (cca)
230
Transmission Type
Tuff Torq® K57
Transmission Differential
Hydrostatic
Ground Speed-Fwd (mph)
0 - 5.8
Ground Speed-Rev (mph)
0 - 3.5
Automatic Controlled Traction™
Standard
4-Wheel Drive
N/A
Brake
Disc
Frame Steel
10-Gauge
Front Axle
Cast-Iron
Front Tires (in)
15 x 6 - 6 / Turf
Rear Tires (in)
22 x 10-10 / Turf
Attachment Lift
Manual
Seat
High-Back Mesh
Suspension
N/A
Mower Deck Type
Fabricated Free Floating™
Cutting Width (in)
48
Number of Blades
3
Height-of-Cut (in)
1.5 - 4
Height-of-Cut Positions
Infinite/Electric
Blade Engagement
Electric PTO Switch
Rear Rollers
Standard, Full-Width Striping
Mower Deck Removal
Quick Hitch™
Spindle
Cast-Aluminum w/ Zerk Fittings
Mower Steel Gauge
10-Gauge
Washout Port
Standard
Cruise Control
Standard
Steering
Power Steering
Headlights
Standard, LED
Hour Meter
Standard
Fuel Level Indicator
Digital, Dash
12 Volt DC Outlet
true
Hand Grips
Standard
Deluxe Instrumental Panel
N/A
Cup Holder
Standard
Turning Radius (in)
18
Assembled Length (in)
75
Assembled Width (in)
59
Assembled Height (in)
47
Consumer Warranty (Product) ***
3-Years
Commercial Warranty (Product) ***
90-Days

*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
2691673
Marketing Model
25/48" SCS
US MSRP †
$7,099.00
CAN MSRP †
$9,249.00
Start Type
Electric, Push Button
Power Rating **
25
Cylinders
2
Engine Displacement (cc)
724
Choke/Throttle
Ready Start®, Single-Lever
Fuel Tank Capacity (gal)
3.6
Battery (cca)
230
Transmission Type
Tuff Torq® K62
Transmission Differential
Hydrostatic
Ground Speed-Fwd (mph)
0-6.7
Ground Speed-Rev (mph)
0-4.0
Automatic Controlled Traction™
Standard
4-Wheel Drive
N/A
Brake
Disc
Frame Steel
10-Gauge
Front Axle
Cast-Iron
Front Tires (in)
16 x 6.5-8 / Turf
Rear Tires (in)
22 x 10 - 10/Turf
Attachment Lift
Manual
Seat
High-Back Mesh
Suspension
SCS, Rear
Mower Deck Type
Fabricated Free Floating™
Cutting Width (in)
48
Number of Blades
3
Height-of-Cut (in)
1.5 - 4
Height-of-Cut Positions
Infinite/Electric
Blade Engagement
Electric PTO Switch
Rear Rollers
Standard, Full-Width Striping
Mower Deck Removal
Quick Hitch™
Spindle
Cast-Aluminum w/ Zerk Fittings
Mower Steel Gauge
10-Gauge
Washout Port
Standard
Cruise Control
Standard
Steering
Power Steering
Headlights
Standard, LED
Hour Meter
Standard
Fuel Level Indicator
Digital, Dash
12 Volt DC Outlet
true
Hand Grips
Standard
Deluxe Instrumental Panel
N/A
Cup Holder
Standard
Turning Radius (in)
18
Assembled Length (in)
76
Assembled Width (in)
60
Assembled Height (in)
47
Consumer Warranty (Product) ***
3-Years
Commercial Warranty (Product) ***
90-Days

*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
2691674
Marketing Model
25/52" SCS
US MSRP †
$7,899.00
CAN MSRP †
$10,249.00
Start Type
Electric, Push Button
Power Rating **
25
Cylinders
2
Engine Displacement (cc)
724
Choke/Throttle
Ready Start®, Single-Lever
Fuel Tank Capacity (gal)
3.6
Battery (cca)
230
Transmission Type
Tuff Torq® K62
Transmission Differential
Hydrostatic
Ground Speed-Fwd (mph)
0-6.7
Ground Speed-Rev (mph)
0-4.0
Automatic Controlled Traction™
Standard
4-Wheel Drive
N/A
Brake
Disc
Frame Steel
10-Gauge
Front Axle
Cast-Iron
Front Tires (in)
16 x 6.5 - 8 /Turf
Rear Tires (in)
23 x 10.5 - 12 /Turf
Attachment Lift
Integrated Hydraulic Dash Lever
Seat
High-Back Mesh
Suspension
SCS, Rear
Mower Deck Type
Fabricated Free Floating™
Cutting Width (in)
52
Number of Blades
3
Height-of-Cut (in)
1.25 - 4.5
Height-of-Cut Positions
Infinite/Electric
Blade Engagement
Electric PTO Switch
Rear Rollers
Standard, Full-Width Striping
Mower Deck Removal
Integrated Hydraulic Dash Lever
Spindle
Commercial Aluminum w/ Zerk Fittings
Mower Steel Gauge
10-Gauge
Washout Port
Standard
Cruise Control
Standard
Steering
Power Steering
Headlights
Standard, LED
Hour Meter
Standard
Fuel Level Indicator
Digital, Dash
12 Volt DC Outlet
true
Hand Grips
Standard
Deluxe Instrumental Panel
N/A
Cup Holder
Standard
Turning Radius (in)
18
Assembled Length (in)
76
Assembled Width (in)
63
Assembled Height (in)
48
Consumer Warranty (Product) ***
3-Years
Commercial Warranty (Product) ***
90-Days

*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
2691670
2691671
2691673
2691674
Marketing Model
23/44"
23/48
25/48" SCS
25/52" SCS
US MSRP †
$5,499.00
$5,849.00
$7,099.00
$7,899.00
CAN MSRP †
$7,149.00
$7,599.00
$9,249.00
$10,249.00
Start Type
Electric, Push Button
Electric, Push Button
Electric, Push Button
Electric, Push Button
Power Rating **
23
23
25
25
Cylinders
2
2
2
2
Engine Displacement (cc)
724
724
724
724
Choke/Throttle
No Choke
Ready Start®, Single-Lever
Ready Start®, Single-Lever
Ready Start®, Single-Lever
Fuel Tank Capacity (gal)
3.6
3.6
3.6
3.6
Battery (cca)
230
230
230
230
Transmission Type
Tuff Torq® K57
Tuff Torq® K57
Tuff Torq® K62
Tuff Torq® K62
Transmission Differential
Hydrostatic
Hydrostatic
Hydrostatic
Hydrostatic
Ground Speed-Fwd (mph)
0 - 5.8
0 - 5.8
0-6.7
0-6.7
Ground Speed-Rev (mph)
0 - 3.5
0 - 3.5
0-4.0
0-4.0
Automatic Controlled Traction™
Standard
Standard
Standard
Standard
4-Wheel Drive
N/A
N/A
N/A
N/A
Brake
Disc
Disc
Disc
Disc
Frame Steel
10-Gauge
10-Gauge
10-Gauge
10-Gauge
Front Axle
Cast-Iron
Cast-Iron
Cast-Iron
Cast-Iron
Front Tires (in)
15 x 6 - 6 / Turf
15 x 6 - 6 / Turf
16 x 6.5-8 / Turf
16 x 6.5 - 8 /Turf
Rear Tires (in)
22 x 10 - 10 / Turf
22 x 10-10 / Turf
22 x 10 - 10/Turf
23 x 10.5 - 12 /Turf
Attachment Lift
Manual
Manual
Manual
Integrated Hydraulic Dash Lever
Seat
High-Back Mesh
High-Back Mesh
High-Back Mesh
High-Back Mesh
Suspension
N/A
N/A
SCS, Rear
SCS, Rear
Mower Deck Type
Deep Profile Free Floating™
Fabricated Free Floating™
Fabricated Free Floating™
Fabricated Free Floating™
Cutting Width (in)
44
48
48
52
Number of Blades
3
3
3
3
Height-of-Cut (in)
1.5 - 4
1.5 - 4
1.5 - 4
1.25 - 4.5
Height-of-Cut Positions
Infinite/Electric
Infinite/Electric
Infinite/Electric
Infinite/Electric
Blade Engagement
Electric PTO Switch
Electric PTO Switch
Electric PTO Switch
Electric PTO Switch
Rear Rollers
Standard, Full-Width Striping
Standard, Full-Width Striping
Standard, Full-Width Striping
Standard, Full-Width Striping
Mower Deck Removal
Quick Hitch™
Quick Hitch™
Quick Hitch™
Integrated Hydraulic Dash Lever
Spindle
Cast-Aluminum
Cast-Aluminum w/ Zerk Fittings
Cast-Aluminum w/ Zerk Fittings
Commercial Aluminum w/ Zerk Fittings
Mower Steel Gauge
12-Gauge
10-Gauge
10-Gauge
10-Gauge
Washout Port
Standard
Standard
Standard
Standard
Cruise Control
Standard
Standard
Standard
Standard
Steering
Manual
Power Steering
Power Steering
Power Steering
Headlights
Standard, LED
Standard, LED
Standard, LED
Standard, LED
Hour Meter
Standard
Standard
Standard
Standard
Fuel Level Indicator
Digital, Dash
Digital, Dash
Digital, Dash
Digital, Dash
12 Volt DC Outlet
true
true
true
true
Hand Grips
Standard
Standard
Standard
Standard
Deluxe Instrumental Panel
N/A
N/A
N/A
N/A
Cup Holder
Standard
Standard
Standard
Standard
Turning Radius (in)
18
18
18
18
Assembled Length (in)
75
75
76
76
Assembled Width (in)
54
59
60
63
Assembled Height (in)
47
47
47
48
Consumer Warranty (Product) ***
3-Years
3-Years
3-Years
3-Years
Commercial Warranty (Product) ***
90-Days
90-Days
90-Days
90-Days

*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Attachments

Turbo Collection System

The turbo blower tractor attachment easily attaches to the mower and gets power directly from the mower rather than an expensive auxiliary engine design.

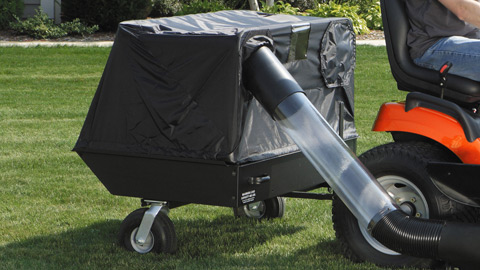

Wide Body Cart Collector

The 17-bushel hopper tilts for easy emptying; swivel-wheel design makes yard cleanup easy.

Snow Cab-Soft Side

The snow cab snow blower attachment is made of vinyl with clear, shatterproof, non-fogging Lexan windows and a glass windshield; no wiper.

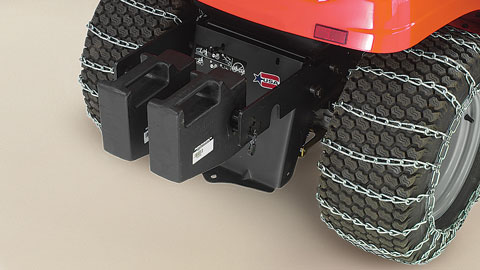

Tractor Tire Chains, Rear Weights & Carrier

Tire chains and weights (33- or 50-lbs each) enhance traction on your mower with front tractor attachments or on slippery ground.

Mulching Kit

Our innovative system reduces grass clippings and returns them to your lawn. Available for the 44”, 48”, 50”, and 52” mower deck sizes.

Clean Sweep™ Triple Grass Catcher

Collect up to 10 bushels of grass clippings in three removable bags.

Dump Cart

This sturdy, 10-cu. ft., multi-purpose cart is great for yard chores and easy to attach.

Front Carrier and Weights

Maintain responsive handling and traction with heavy, rear-mounted attachments.

48'' Snow/Dozer Blade

Can be angled in multiple positions and is spring-loaded to absorb shock and clear snow away from driveways or sidewalks.

42'' Single-Stage Snow Blower

Make short work of deep snow with this rugged single-stage snow blower.

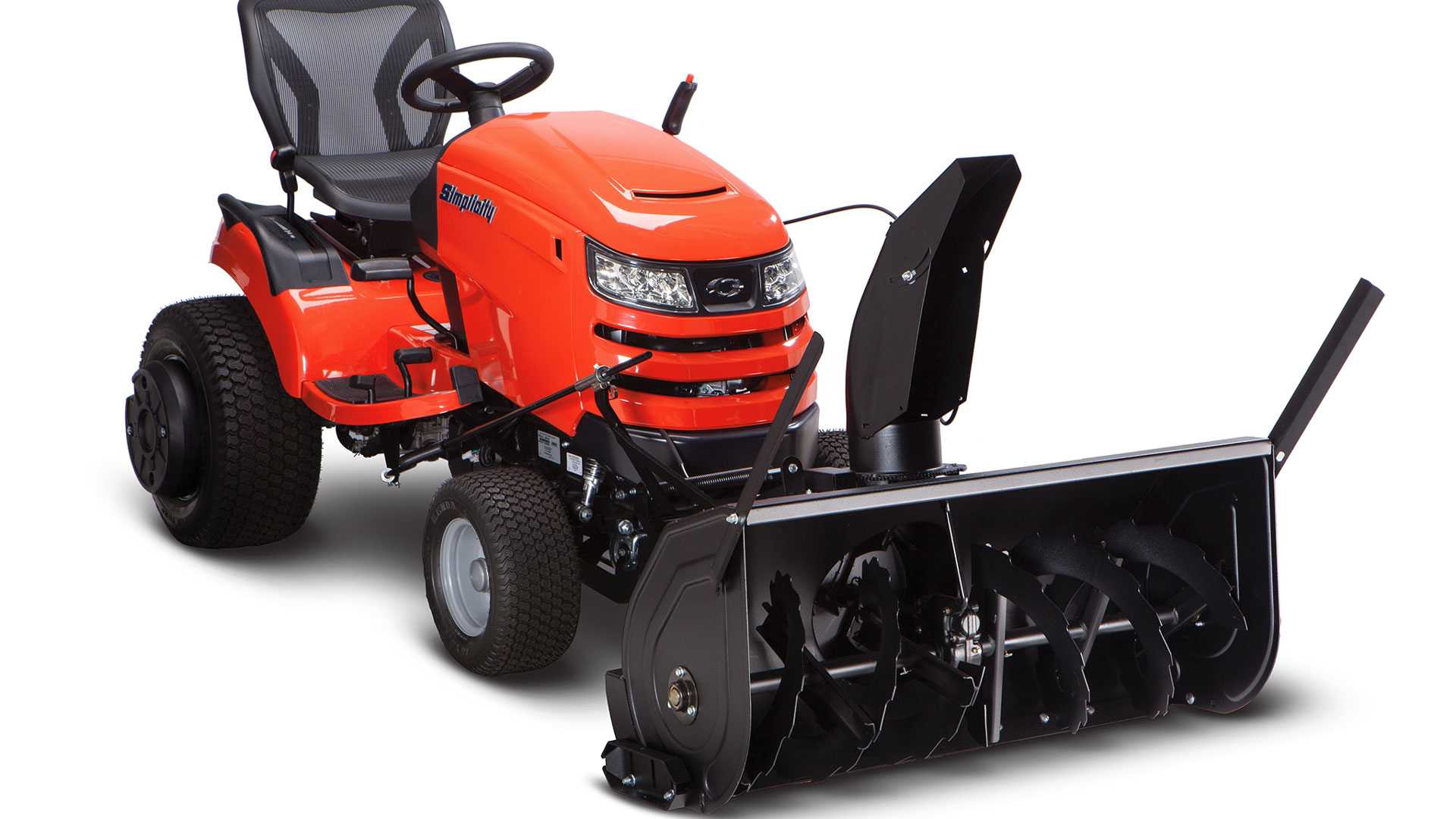

42'' Two Stage Snow Blower

Make heavy-duty snow removal easy with a two-stage snow blower.

36" Tow-Behind Tiller

Easily prepare your soil for spring with the 36" tow-behind gas powered tiller.
