Cobalt LE Zero Turn Mower

UNPARALLELED PERFORMANCE

When you’re ready for the best, it’s time to upgrade to the Cobalt LE for the ultimate zero turn experience. It features our biggest deck and an engine typically reserved for commercial machines, which means no lawn is too big. Professional landscapers will be jealous of this feature-packed mower and your neighbors will be envious of the perfect lawn it leaves behind.

Features

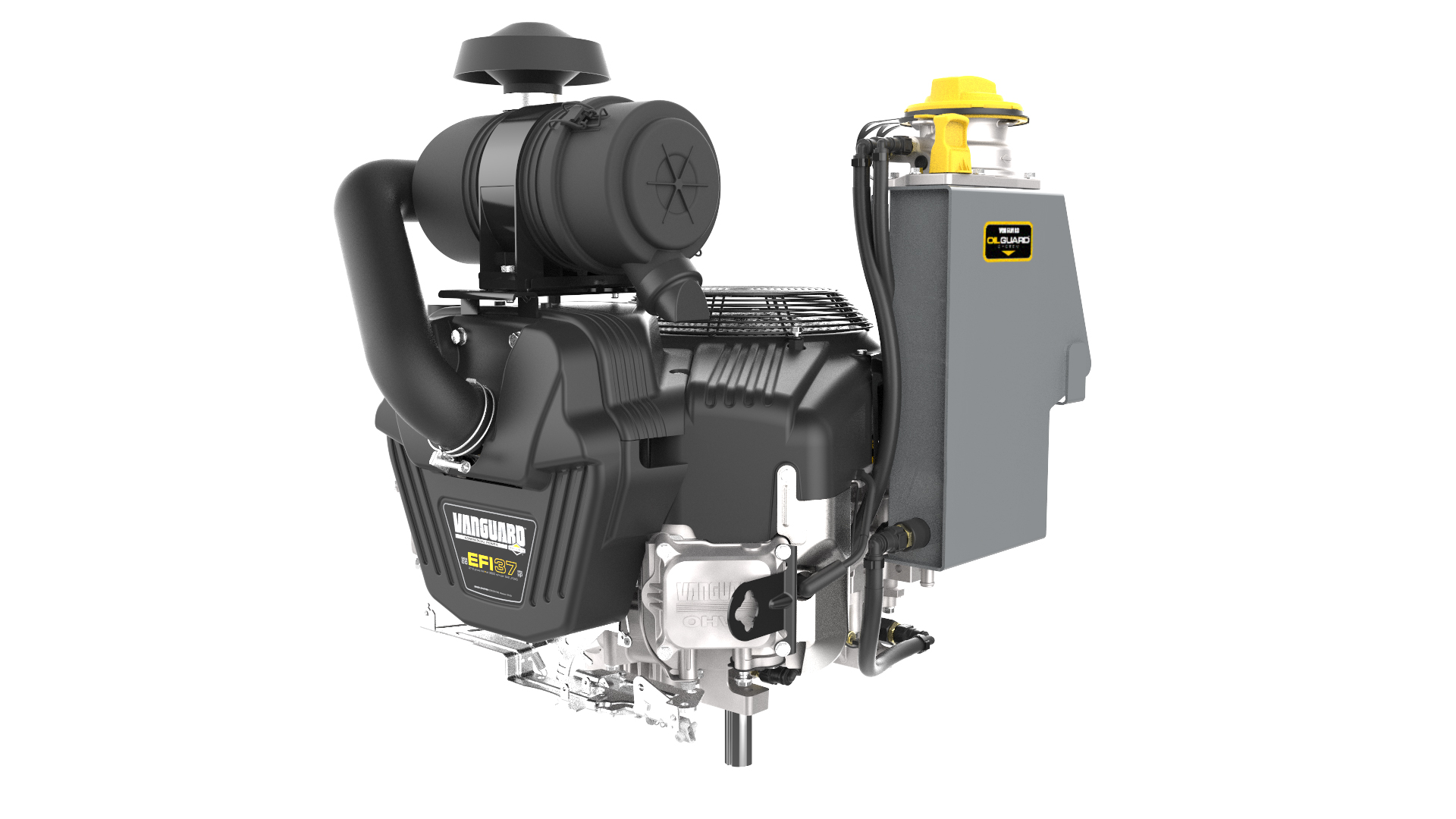

Vanguard™ Big Block Engine

For the most challenging applications, this Big Block engine with EFI has been expertly engineered to deliver the dependability to get more done in less time. Plus, the 500-hour oil change interval with the Oil Guard System means less time changing the oil and more time mowing.

Learn More >

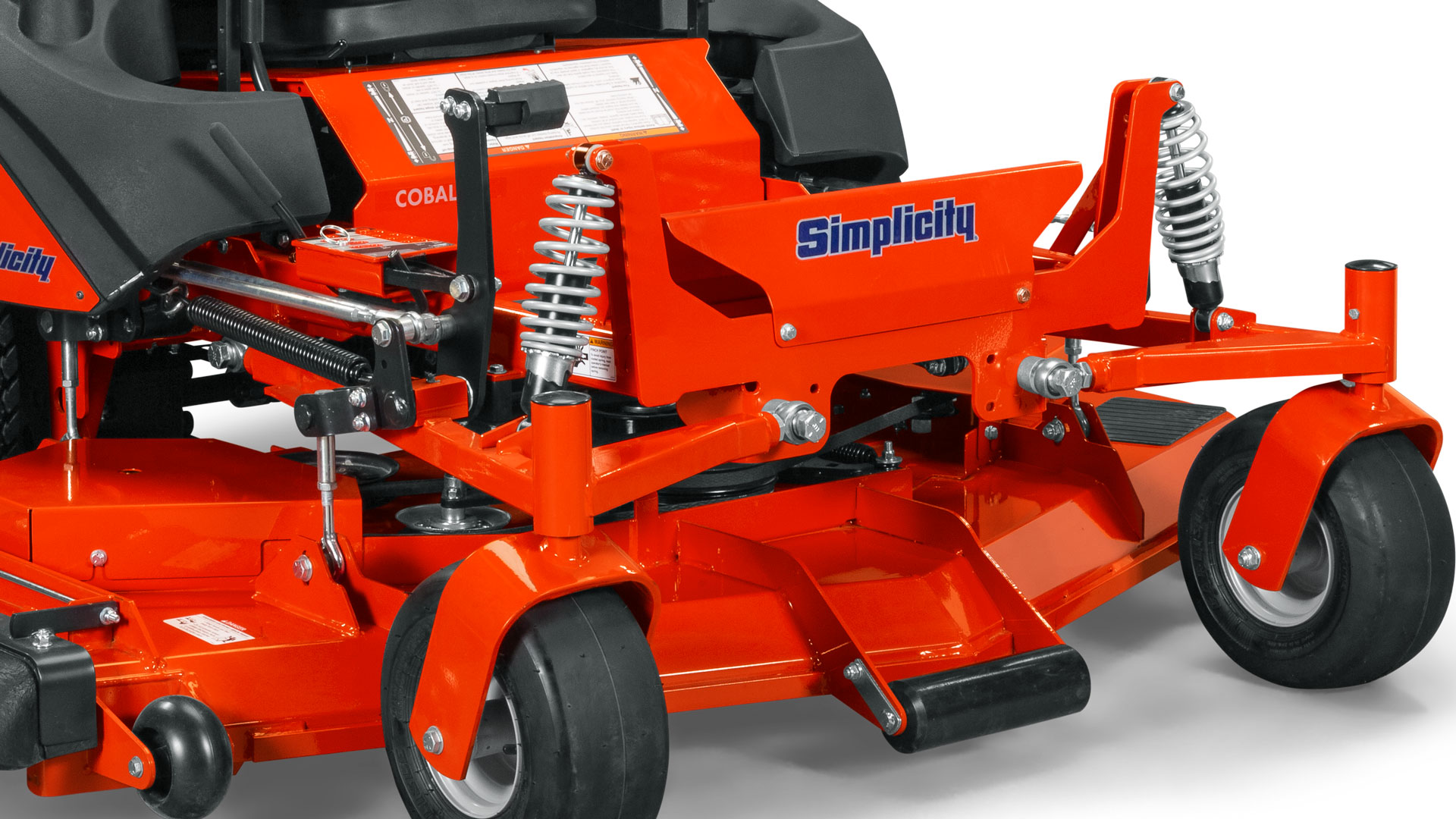

Suspension

The 4-wheel suspension system and adjustable rear coil-over shocks reduces vibration to the chassis and operator, giving you a smoother ride at fast mowing speeds.

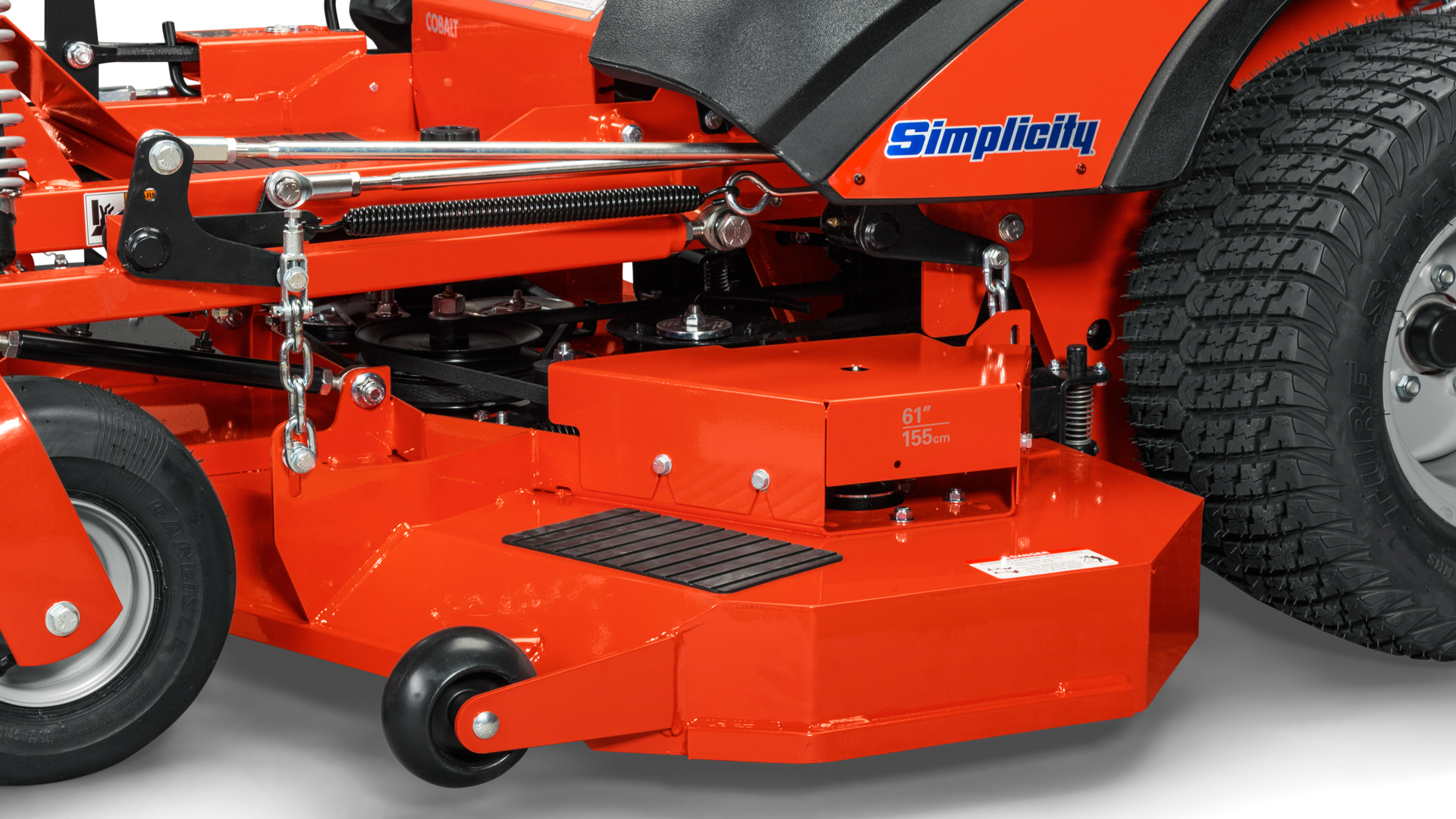

Fabricated Mowing Deck

An innovative grass cutting system has the center point offset, allowing for supreme cutting and excellent discharge leaving you with a superior cut. The reinforced leading edge provides protection where the mower deck needs it most. Large deck options are available with cutting widths up to 72" so you can make quick work of any size lawn. (Image is for representation purposes only and doesn't reflect the final product.)

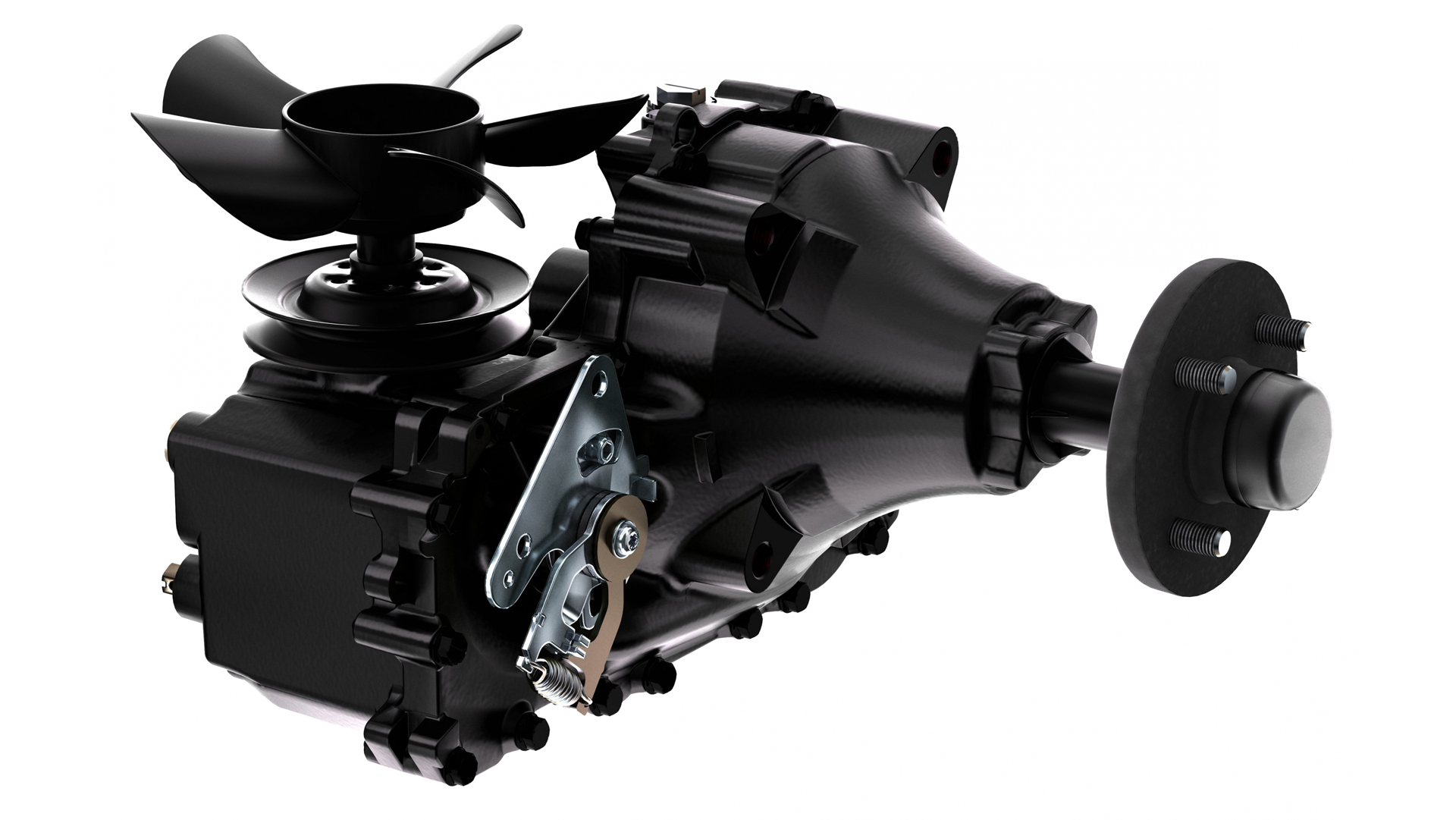

High Quality Drive System

Dual, commercial Hydro-Gear^® ZT-5400 Powertrain^® transaxles deliver unmatched power and durability.

Specs

Model

5901798

Marketing Model

37/61

US MSRP †

$17,849.00

CAN MSRP †

$23,199.00

Engine Brand

Vanguard^®

Engine Model

Big Block™ V-Twin, EFI & Oil Guard Technology

Start Type

Electric, Key

Power Rating *

37 gross hp

Cylinders

Choke/Throttle

Single Control

Engine Displacement (cc)

993

Fuel Tank Capacity (gal)

11 (Twin 5.5 Gallon Tanks)

Battery (cca)

350

Transmission Type

Hydro-Gear^® ZT-5400 Powertrain™

Ground Speed-Fwd (mph)

0 - 1 2

Ground Speed-Rev (mph)

0 - 6

Brake

Internal

Frame

11-Gauge

Front Tires (in)

13 x 6.5-6 / 4-Ply Smooth

Front Axle

Steel Independent & Adjustable Pivoting

Rear Tires (in)

26 x 12-12 / Turf Smart

Seat

18" Suspension High-Back

Suspension

SCS, Front & Rear

Cutting Width (in)

Mower Deck Type

Fabricated

Height-of-Cut (in)

1.5 - 5

Height-of-Cut Positions

Number of Blades

Mower Deck Removal

Frame Mounted

Anti-Scalp Wheels

3-Front

Spindle

Cast-Iron w/ Grease Zerk

Cargo Bed +

N/A

Steering

Twin Levers

Headlights

Optional

Fuel Level Indicator

Tank Gauge

Cup Holder

Standard

Bumper

Steel

Roll Over Protection (ROPS)

Standard, Folding

Assembled Width (in)

Assembled Height (in)

Assembled Length (in)

84.5

Consumer Warranty (Product) **

4-Year or 500 Hours, whichever occurs first

Commercial Warranty (Product) **

4-Years or 500 Hours, whichever occurs first

Blade Type

Electric PTO Switch

Fuel Gauge Location

Standard Gauge / Right & Left Hand Console

Rear Fenders

Standard

Manuals

Operator's Manual - English
Download

Illustrated Parts List - English
Download

Wiring Diagram Schematic - English

^{*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices in U.S. dollars. Set-up, delivery, documentation, and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice. Not all models available in California.}

Model

5901799

Marketing Model

37/72

US MSRP †

$18,699.00

CAN MSRP †

$24,299.00

Engine Brand

Vanguard^®

Engine Model

Big Block™ V-Twin, EFI & Oil Guard Technology

Start Type

Electric, Key

Power Rating *

37 gross hp 1/2

Choke/Throttle

Single Control

Engine Displacement (cc)

993

Fuel Tank Capacity (gal)

11 (Twin 5.5 Gallon Tanks)

Battery (cca)

350

Transmission Type

Hydro-Gear^® ZT-5400 Powertrain™

Ground Speed-Fwd (mph)

0 - 12

Ground Speed-Rev (mph)

0 - 6

Brake

Internal

Frame

11-Gauge

Front Tires (in)

13 x 6.5-6 / 4-Ply Smooth

Front Axle

Steel Independent & Adjustable Pivoting

Rear Tires (in)

26 x 12-12 / Turf Smart

Seat

18" Suspension High-Back

Suspension

SCS, Front & Rear

Cutting Width (in)

Mower Deck Type

Fabricated

Height-of-Cut (in)

1.5 - 5

Height-of-Cut Positions

Number of Blades

Mower Deck Removal

Frame Mounted

Anti-Scalp Wheels

3-Front

Spindle

Cast-Iron w/ Grease Zerk

Cargo Bed +

N/A

Steering

Twin Levers

Headlights

Optional

Fuel Level Indicator

Tank Gauge

Cup Holder

Standard

Bumper

Steel

Roll Over Protection (ROPS)

Standard, Folding

Assembled Width (in)

Assembled Height (in)

Assembled Length (in)

Consumer Warranty (Product) **

4-Years or 500 Hours, whichever occurs first

Commercial Warranty (Product) **

4-Years or 500 Hours, whichever occurs first

Blade Type

Electric PTO Switch

Fuel Gauge Location

Standard Gauge / Right & Left Hand Console

Rear Fenders

Standard

Manuals

Operator's Manual - English
Download

Illustrated Parts List - English
Download

Wiring Diagram Schematic - English

Model

5901798

5901799

Marketing Model

37/61

37/72

US MSRP †

$17,849.00

$18,699.00

CAN MSRP †

$23,199.00

$24,299.00

Engine Brand

Vanguard^®

Engine Model

Big Block™ V-Twin, EFI & Oil Guard Technology

Start Type

Electric, Key

Power Rating *

37 gross hp

37 gross hp 1/2

Cylinders

Choke/Throttle

Single Control

Engine Displacement (cc)

993

Fuel Tank Capacity (gal)

11 (Twin 5.5 Gallon Tanks)

Battery (cca)

350

Transmission Type

Hydro-Gear^® ZT-5400 Powertrain™

Ground Speed-Fwd (mph)

0 - 1 2

0 - 12

Ground Speed-Rev (mph)

0 - 6

Brake

Internal

Frame

11-Gauge

Front Tires (in)

13 x 6.5-6 / 4-Ply Smooth

Front Axle

Steel Independent & Adjustable Pivoting

Rear Tires (in)

26 x 12-12 / Turf Smart

Seat

18" Suspension High-Back

Suspension

SCS, Front & Rear

Cutting Width (in)

Mower Deck Type

Fabricated

Height-of-Cut (in)

1.5 - 5

Height-of-Cut Positions

Number of Blades

Mower Deck Removal

Frame Mounted

Anti-Scalp Wheels

3-Front

Spindle

Cast-Iron w/ Grease Zerk

Cargo Bed +

N/A

Steering

Twin Levers

Headlights

Optional

Fuel Level Indicator

Tank Gauge

Cup Holder

Standard

Bumper

Steel

Roll Over Protection (ROPS)

Standard, Folding

Assembled Width (in)

Assembled Height (in)

Assembled Length (in)

84.5

Consumer Warranty (Product) **

4-Year or 500 Hours, whichever occurs first

4-Years or 500 Hours, whichever occurs first

Commercial Warranty (Product) **

4-Years or 500 Hours, whichever occurs first

Blade Type

Electric PTO Switch

Fuel Gauge Location

Standard Gauge / Right & Left Hand Console

Rear Fenders

Standard

Attachments

Mulch Kit

Our innovative mulching kit reduces grass clippings and returns them to your lawn. Available for 61" and 72" mower decks. Shredder blades (sold separately) install to shred leaves with ease.
