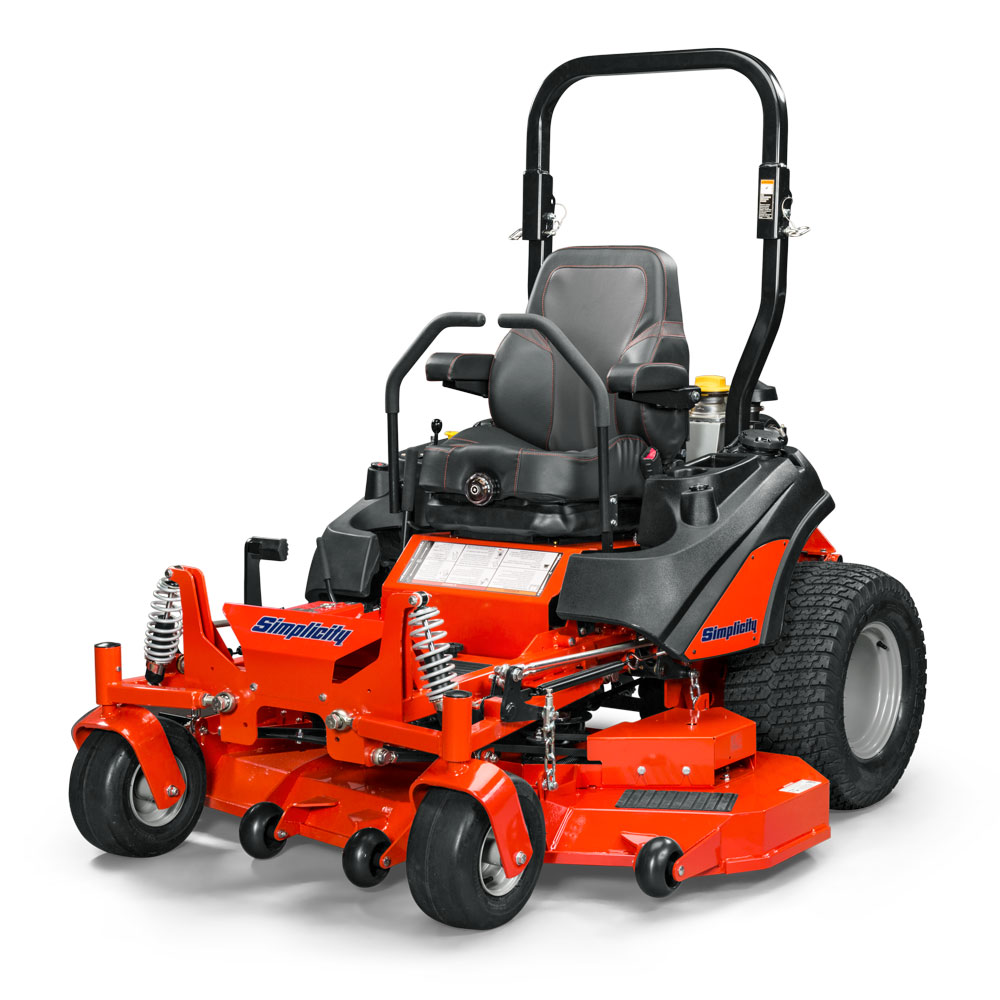

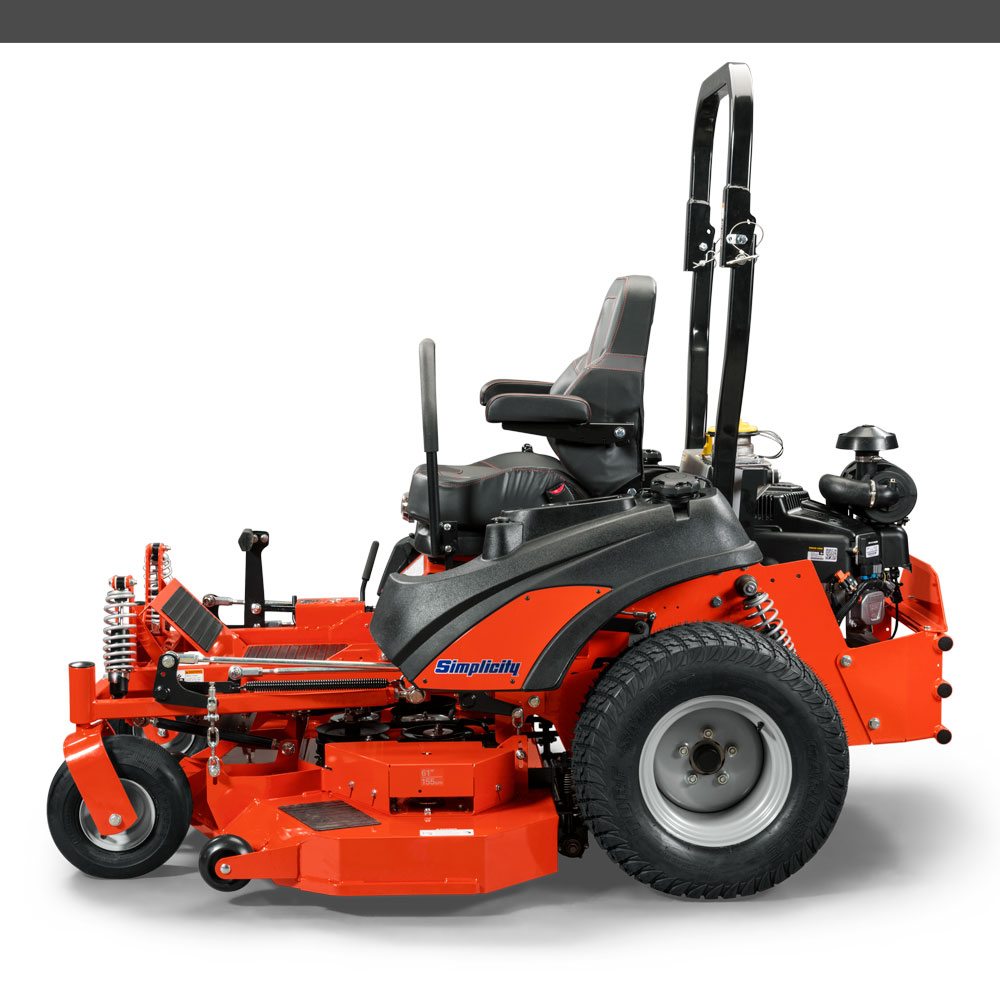

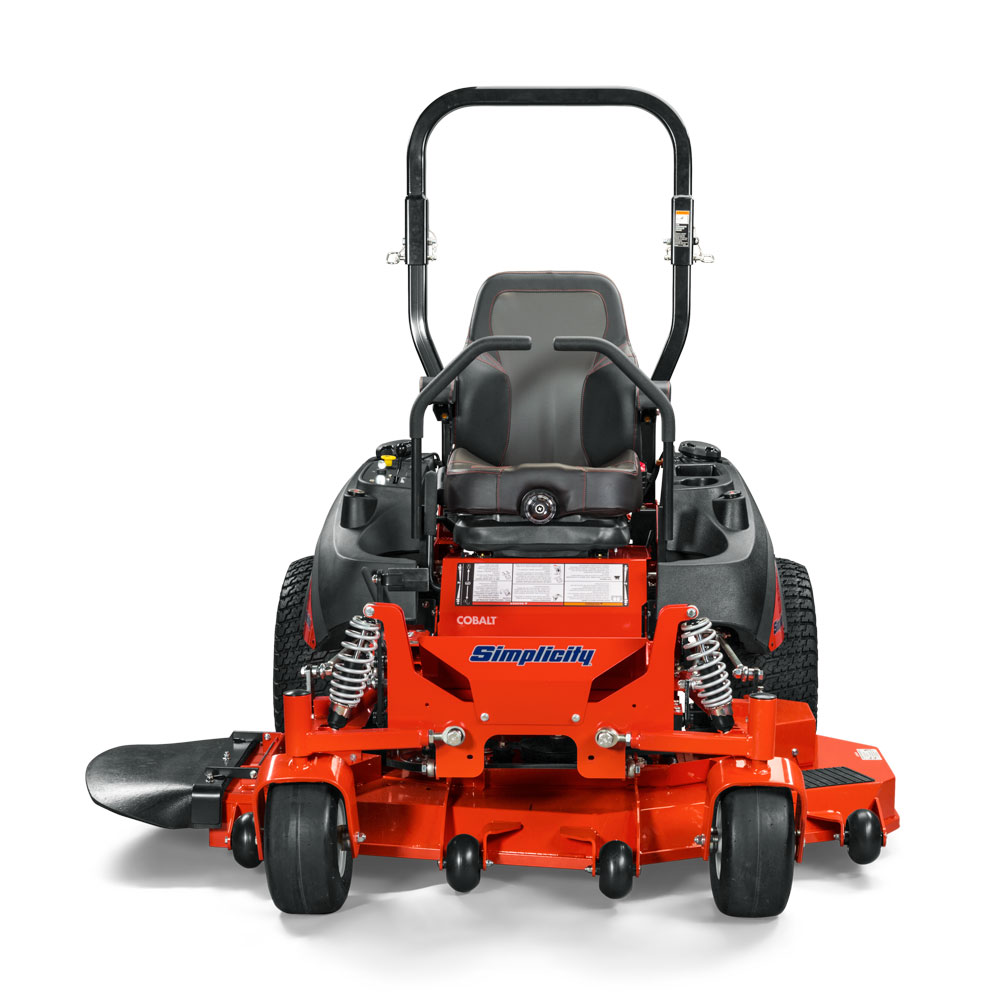

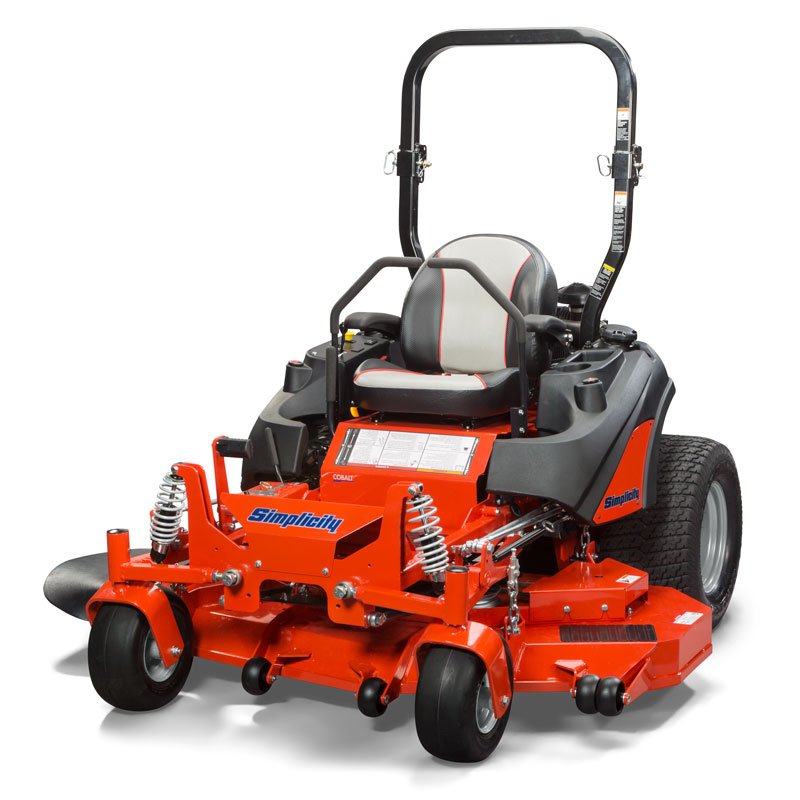

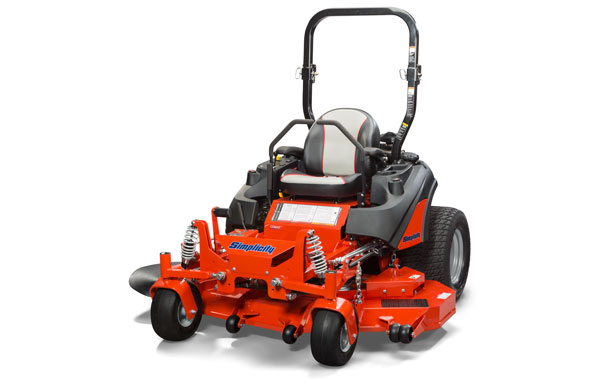

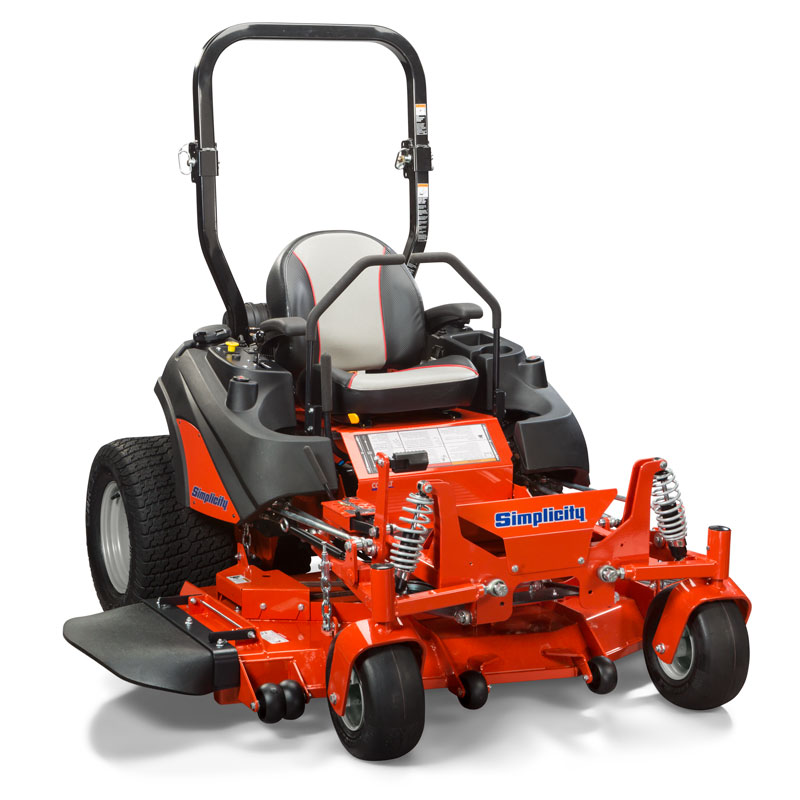

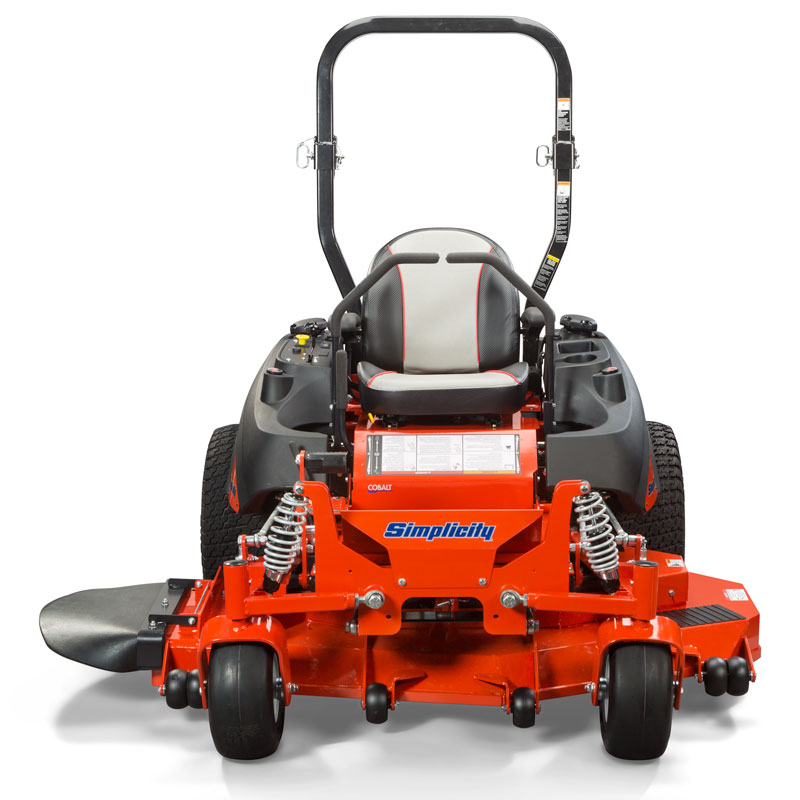

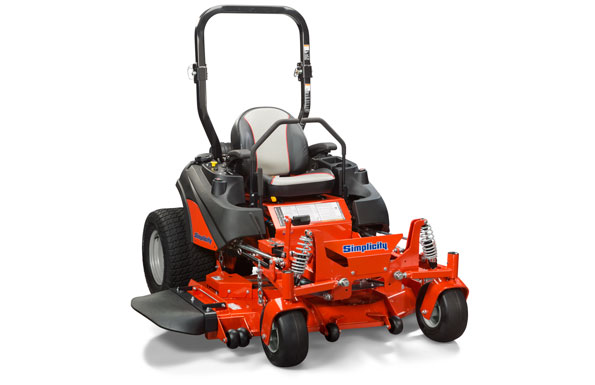

Cobalt™ Zero Turn Mower

OUTPERFORM THE COMPETITION

The Cobalt pairs an upgraded Vanguard^® commercial engine with features that allow you to mow faster and with confidence. One of the fastest units we offer, the Cobalt is your key to increased productivity, while delivering a professional-quality cut you can take pride in.

Features

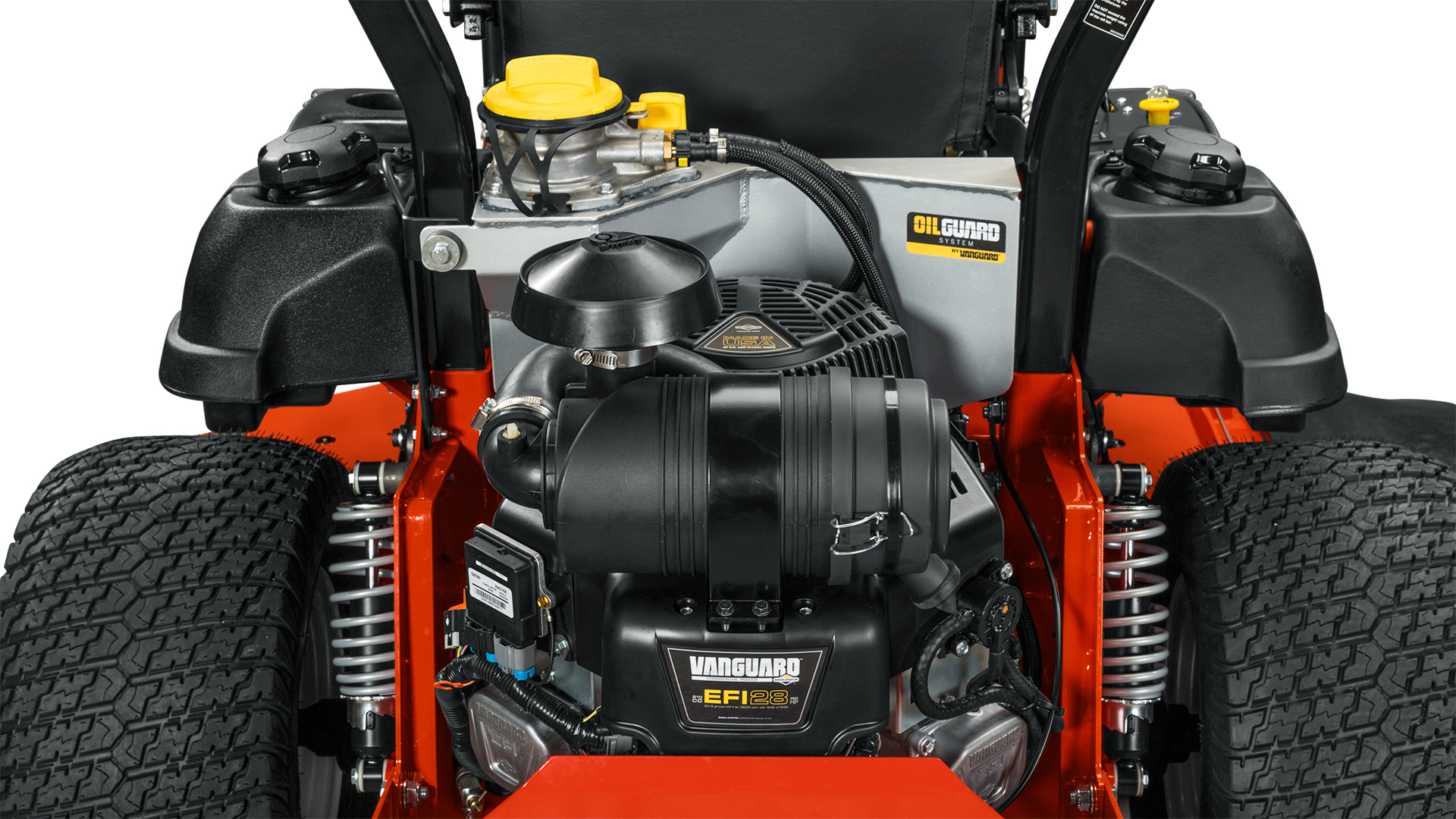

VANGUARD™ 810 ENGINE

Redefining commercial mower efficiency, the Vanguard^® 810 Engine with EFI and the Oil Guard™ System (select models) is the best engine for getting work done, reliably. Plus, with a massive 500 hour* oil change interval, your mower will spend more time mowing and less time in routine maintenance.

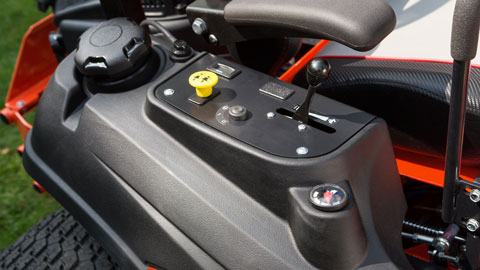

CONTROLS

Every control is tailored to the demands of homeowners with larger properties to maintain: easy-to-use, conveniently located and extremely durable.

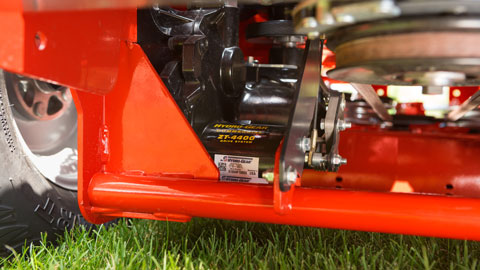

COMMERCIAL TRANSAXLES

The ZT-4400™ transaxles are commercially engineered to deliver smooth, unmatched power and durability. Featuring cooling fans and a robust planetary gear reduction, this transaxle is designed for powerful machines.

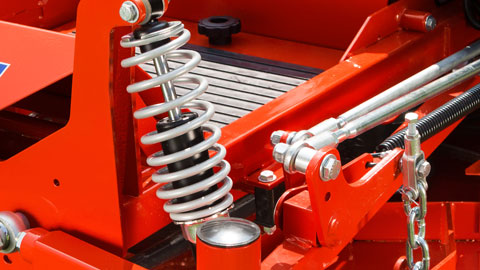

SUSPENSION

The Cobalt's 4-wheel suspension system reduces vibration to the chassis and operator, giving you a smoother ride at faster mowing speeds.

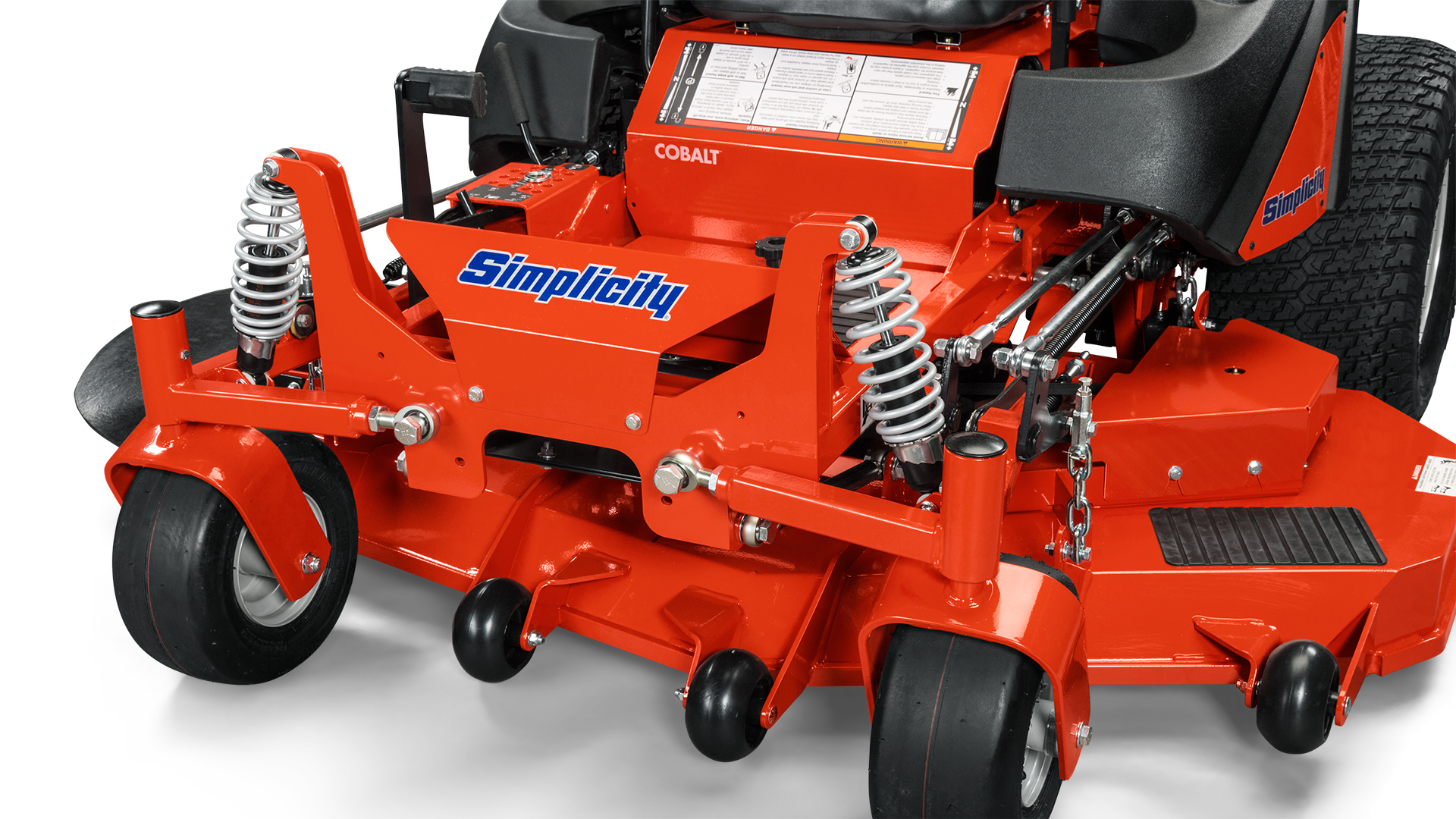

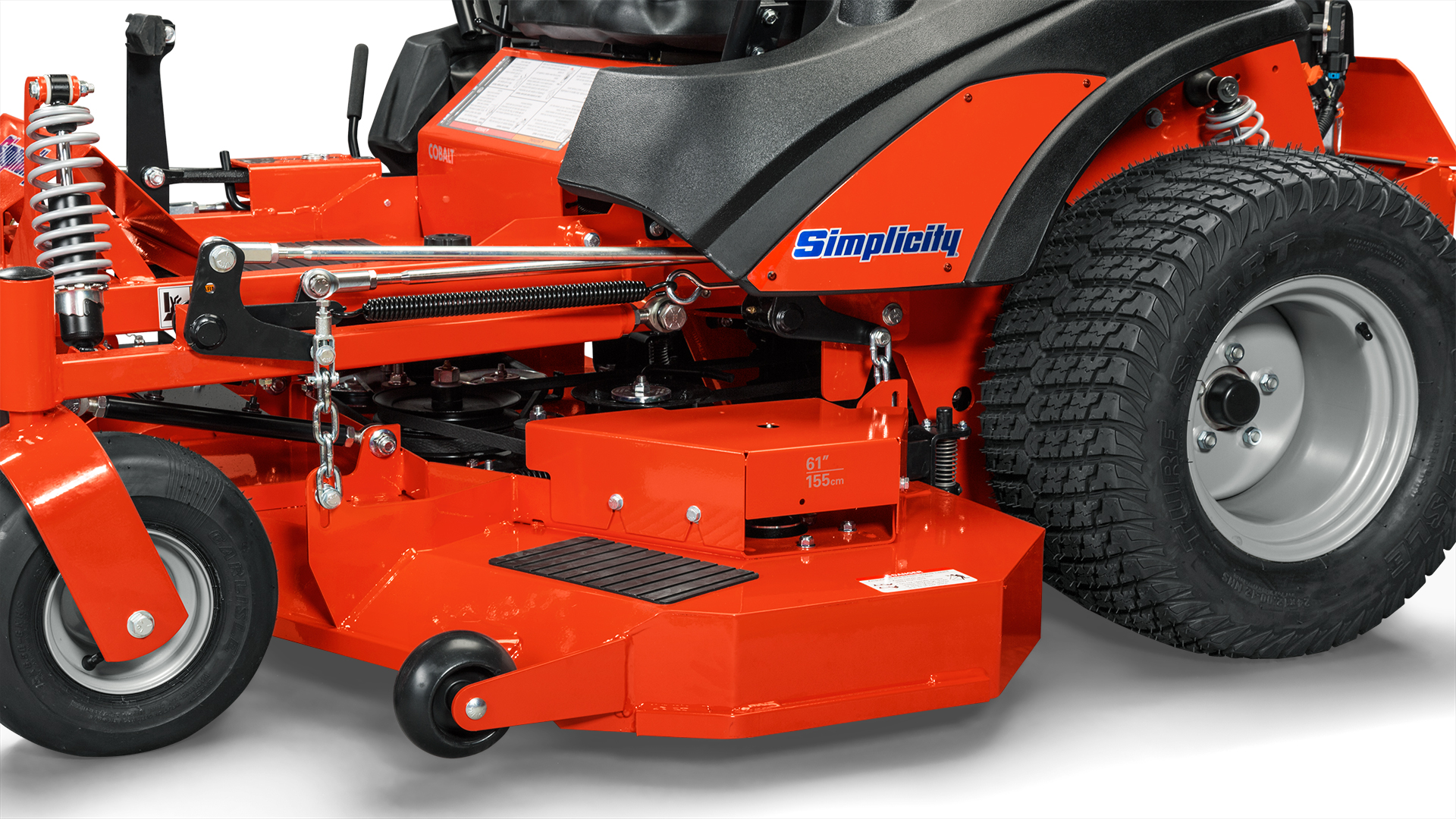

FABRICATED DECK

An innovative grass cutting system has the center point offset, allowing for supreme cutting and excellent discharge leaving you with a superior cut. The reinforced leading edge provides protection where the mower deck needs it most.

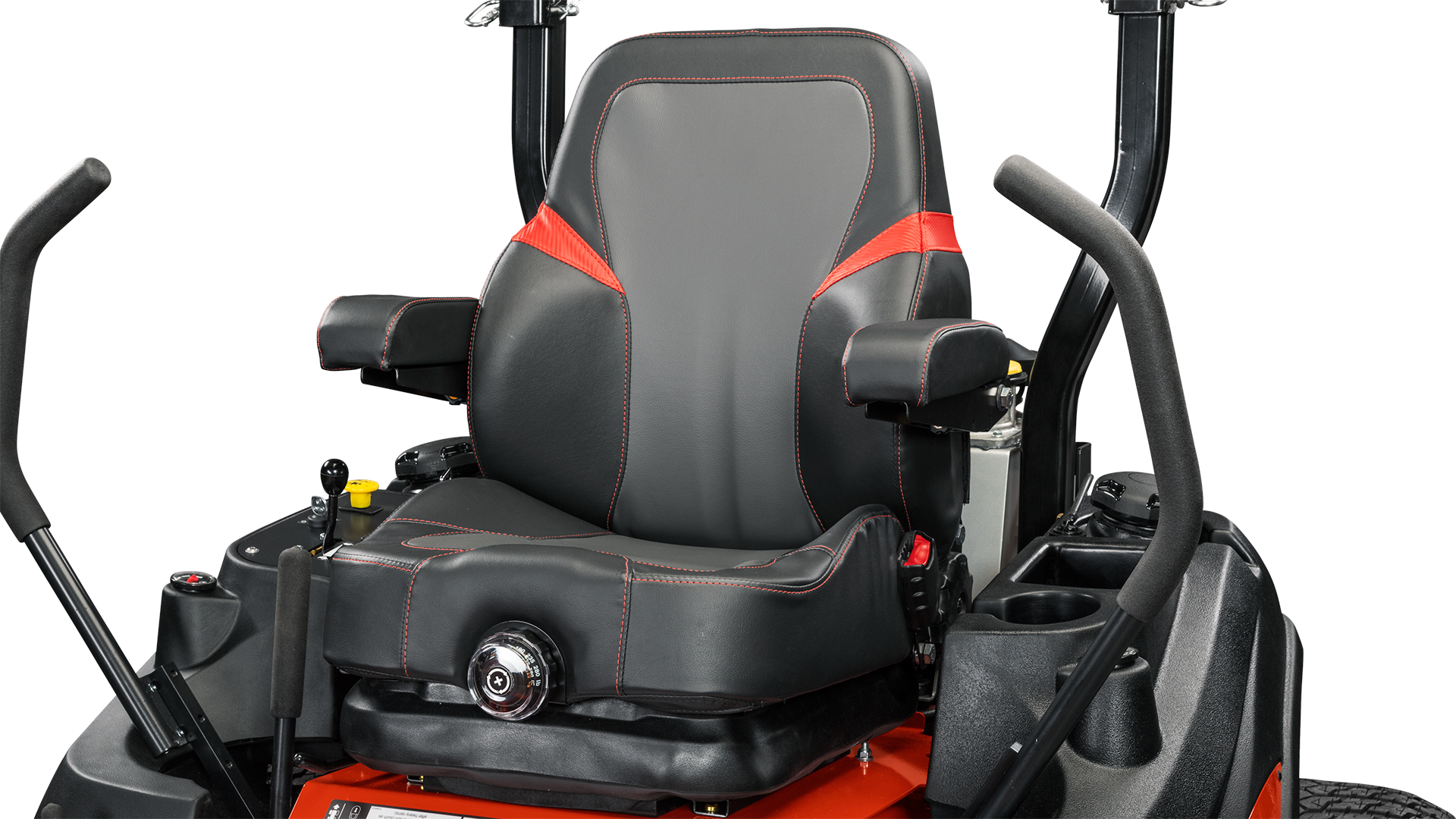

COMFORT

The deep cushioned 18-inch high-back seat, armrests and adjustable steering levers are built for convenient, comfortable operation.

EASY ZERO TURN MAINTENANCE

Turn the knob on the foot pan to gain access to the top of the deck when zero turn lawn mower maintenance is needed, allowing you to get back to the job quickly and easily.

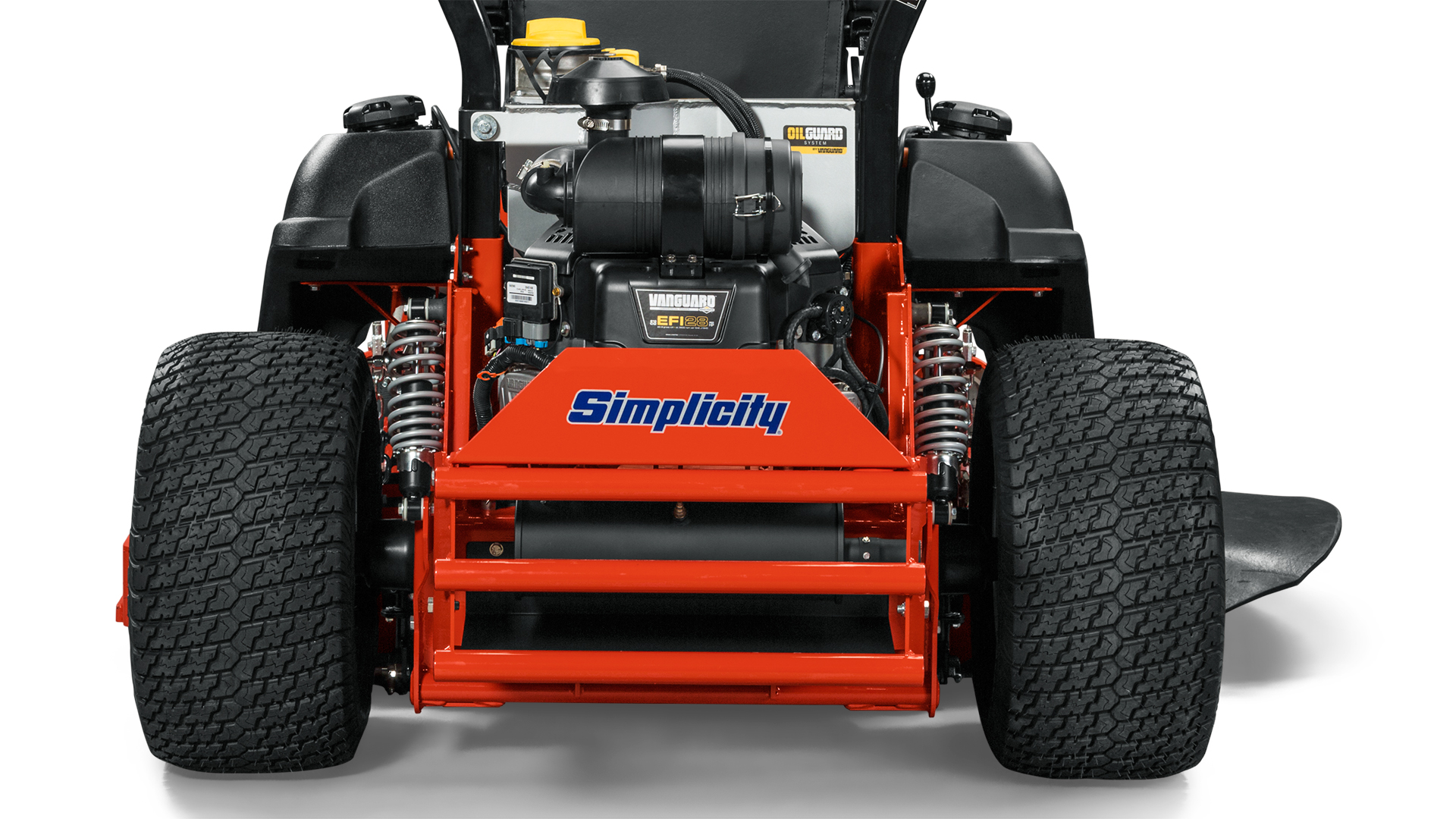

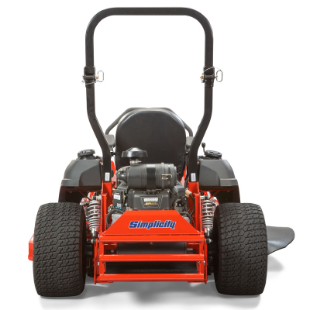

REAR BUMPER

Three steel bars wrap-around the rear of the zero turn protecting the mower engine and operating components from damage.

^{*Based on average residential usage. Only available on models with Oil Guard™ and does not extend the warranty period. Required oil change interval is 500 hours. Check oil levels before each use. See operator's manual or www.vanguardengines.com for details.}

Specs

Model

5901748

Marketing Model

28/61"

Engine Brand

Vanguard^®

Engine Model

810 V-Twin, EFI & Oil Guard Technology

Start Type

Electric, Key

Power Rating *

Cylinders

Choke/Throttle

Single Control

Engine Displacement (cc)

810

Fuel Tank Capacity (gal)

11 (Twin 5.5 Gallon Tanks)

Battery (cca)

350

Transmission Type

Hydro-Gear^® ZT-4400™

Ground Speed-Fwd (mph)

0 - 10

Ground Speed-Rev (mph)

0 - 5

Brake

Internal

Frame

11-Gauge

Front Tires (in)

13 x 6.5-6 / 4-Ply Smooth

Front Axle

Steel Independent Pivoting

Rear Tires (in)

24 x 12-12 / Turf Smart

Seat

18" Suspension High-Back

Suspension

SCS, Front & Rear

Cutting Width (in)

Mower Deck Type

10 Gauge Fabricated Steel

Height-of-Cut (in)

1.5 - 5

Height-of-Cut Positions

Number of Blades

Mower Deck Removal

Frame Mounted

Anti-Scalp Wheels

6-Front

Spindle

Cast-Iron w/ Grease Zerk

Cargo Bed +

N/A

Steering

Twin Levers

Headlights

Optional

Fuel Level Indicator

Tank Gauge

Cup Holder

Standard, 2

Bumper

Steel

Roll Over Protection (ROPS)

Standard, Folding

Assembled Width (in)

Assembled Height (in)

Assembled Length (in)

82.5

Consumer Warranty (Product) **

4- Years or 500 Hours, whichever occurs first

Commercial Warranty (Product) **

4- Years or 500 Hours, whichever occurs first

Fabricated Mower Deck Warranty **

Lifetime

Blade Type

Electric PTO Switch

Fuel Gauge Location

Standard Gauge / Left & Right Hand Console

Rear Fenders

Standard, Steel

Manuals

Operator's Manual - English
Download

Illustrated Parts List - English

^{*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
+50 lb (Courier™) or 100 lb (Contender™) capacity, do not overload; do not carry passengers. See operator's manual for details.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices in U.S. dollars. Set-up, delivery, documentation, and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice. Not all models available in California.}

Attachments

MULCHING KIT

Our innovative 61" mulching kit reduces grass clippings and returns them to your lawn.

TRIPLE GRASS CATCHER

Vacuums the lawn for grass clippings with a clean finish. Includes three easy-to-empty bags. Capacity: 13 bushels. (Note: Product may vary from image shown.)
