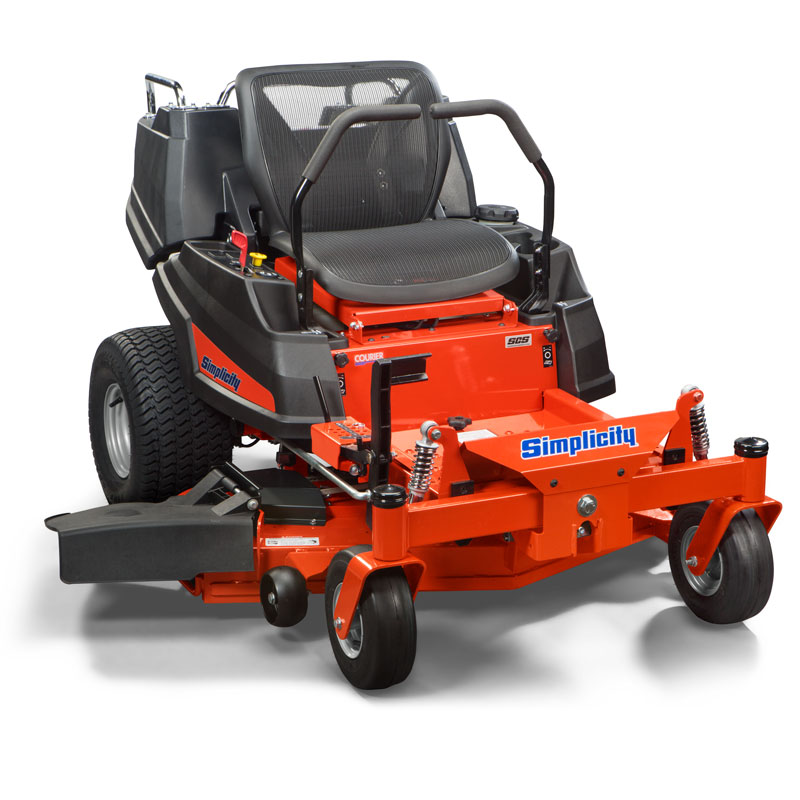

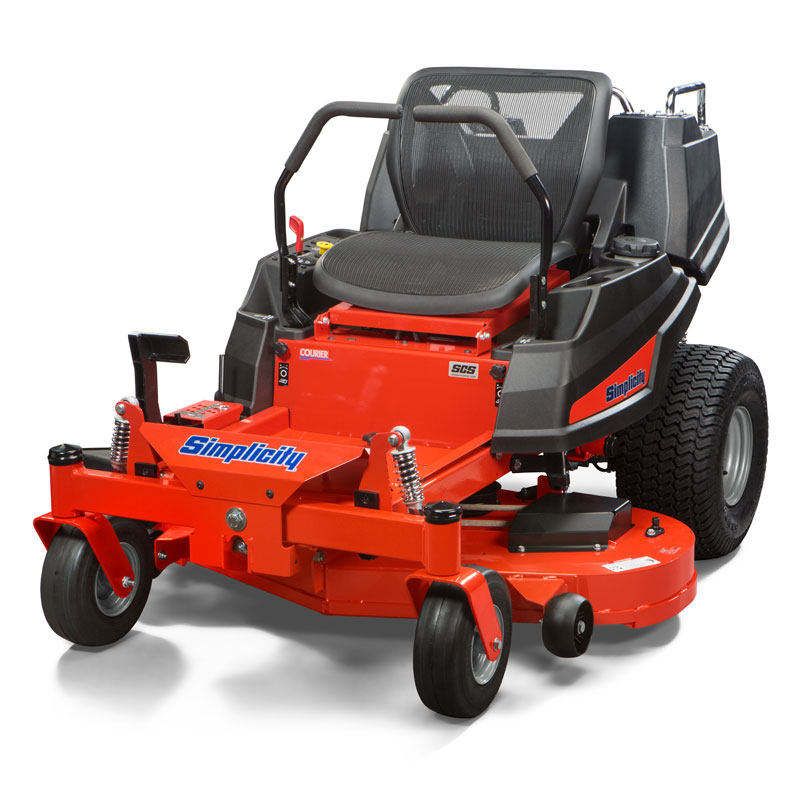

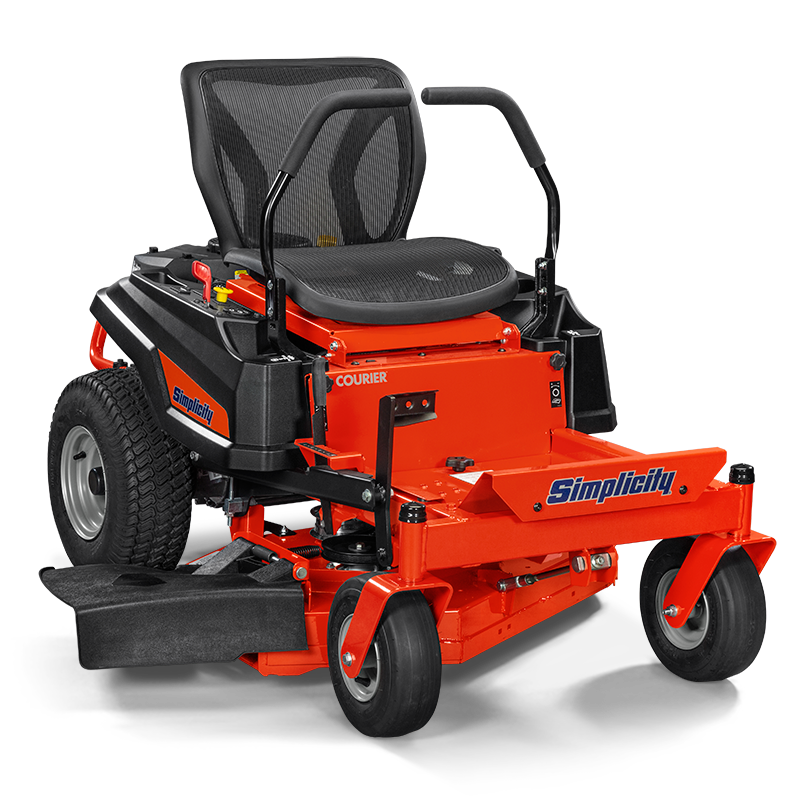

Courier™ Zero Turn Mower
UNRIVALED CUTTING COMFORT & UTILITY
The versatile and functional Courier™ Zero Turn Mower has the features you want and the compact footprint you need for your home. With the Suspension Comfort System™ (select models) taking the bumps out of your ride and the utility cargo bed (select models) making yard chores that much easier, the Courier is made to get things done comfortably. Plus, with compact 36-inch deck options available, you are able to mow even the tightest areas of your lawn.
Click and drag image to rotate.
Features
*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
+50 lb. capacity, do not overload; do not carry passengers. See operator’s manual for details.
**See operator’s manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices in U.S. dollars. Set-up, delivery, documentation, and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice. Not all models available in California.
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Model
2691502
Marketing Model
23/44"
US MSRP †
$2,849.00
CAN MSRP †
$3,699.00
Engine Brand
Briggs & Stratton®
Engine Model
Professional Series™
Start Type
Key
Power Rating *
23
Cylinders
2
Choke/Throttle
ReadyStart® - No Prime, No Choke
Engine Displacement (cc)
724
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hydro-Gear® EZT®
Ground Speed-Fwd (mph)
0 - 6.0
Ground Speed-Rev (mph)
0 - 3.0
Brake
Integrated
Frame
12-Gauge Steel
Front Tires (in)
11 x 4-5
Front Axle
Steel Fixed
Rear Tires (in)
18 x 8.5 - 8
Seat
Mid-Back Mesh
Suspension
None
Cutting Width (in)
44

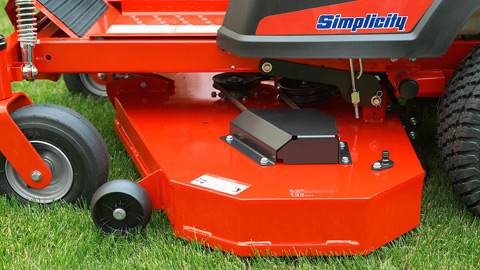

Mower Deck Type
Stamped
Height-of-Cut (in)
1.5 - 4.5

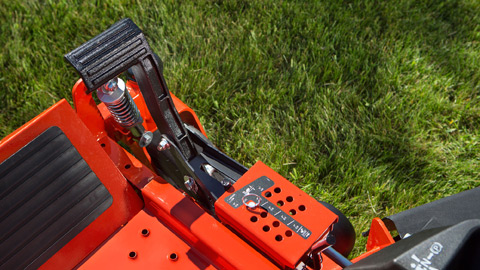

Height-of-Cut Positions
7-Foot Assist
Number of Blades
3
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
None, Rear Roller
Spindle
Cast-Aluminum

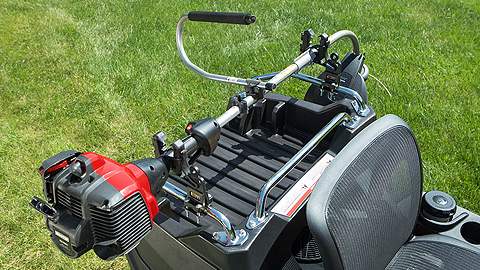

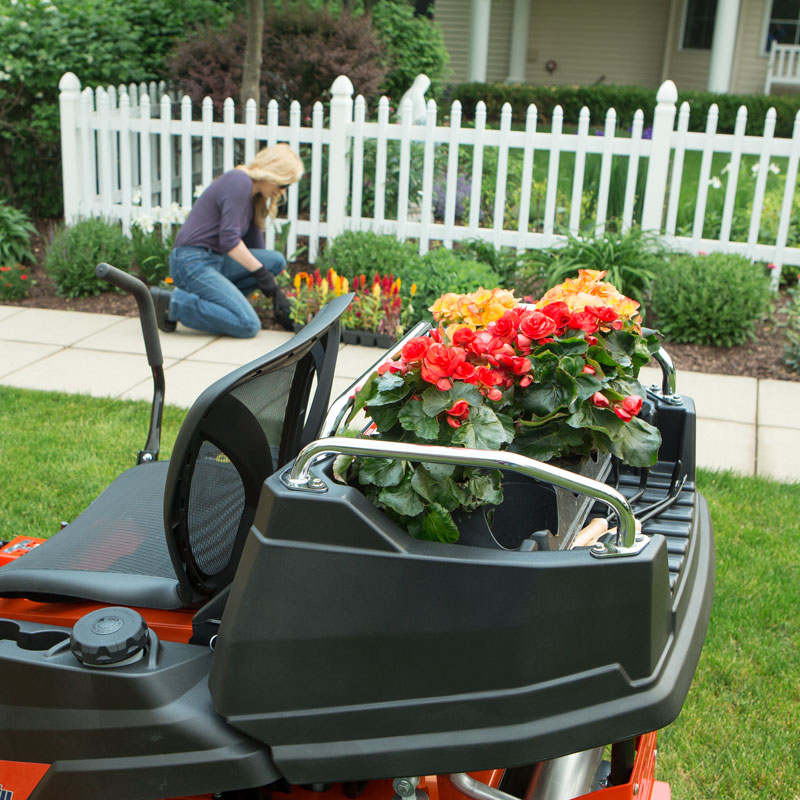

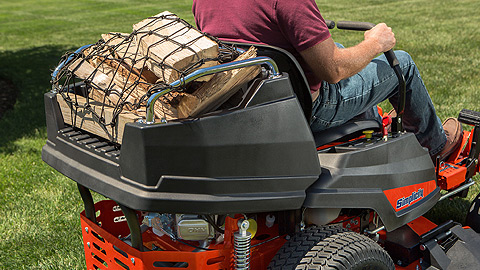

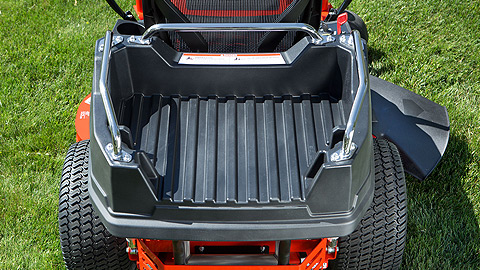

Cargo Bed +
Optional
Steering
Twin-Levers
Headlights
Optional
Fuel Level Indicator
Sight
Cup Holder
One / Fender
Assembled Length (in)
70
Roll Over Protection (ROPS)
N/A
Assembled Width (in)
54
Assembled Height (in)
43
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
N/A
Rear Bumper
Standard, Steel Rear
Model
2691501
Marketing Model
19/36"
US MSRP †
$2,649.00
CAN MSRP †
$3,499.00
Engine Brand
Briggs & Stratton®
Engine Model
Professional Series™
Start Type
Key
Power Rating *
19
Cylinders
1
Choke/Throttle
Choke-A-Matic
Engine Displacement (cc)
500
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hyrdo-Gear® EZT®
Ground Speed-Fwd (mph)
0 - 6.0
Ground Speed-Rev (mph)
0 - 3.0
Brake
Integrated
Frame
12-Gauge Steel
Front Tires (in)
11 x 4-5
Front Axle
Steel Fixed
Rear Tires (in)
18 x 6.5-8
Seat
Mid-Back Mesh
Suspension
None
Cutting Width (in)
36
Mower Deck Type
Fabricated
Height-of-Cut (in)
1.5 - 4.5
Height-of-Cut Positions
7-Foot Assist
Number of Blades
2
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
None, Rear Roller
Spindle
Cast-Aluminum
Cargo Bed +
N/A
Steering
Twin-Levers
Headlights
Optional
Fuel Level Indicator
Sight
Cup Holder
One / Fender
Assembled Length (in)
66
Rear Bumper
Standard, Tube Rear
Roll Over Protection (ROPS)
N/A
Assembled Width (in)
50
Assembled Height (in)
43
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
Model
2691322
Marketing Model
23/44
US MSRP †
$3,599.00
CAN MSRP †
$4,649.00
Engine Brand
Briggs & Stratton
Engine Model
Professional Series™ V-Twin
Start Type
Key
Power Rating *
23
Cylinders
2
Choke/Throttle
ReadyStart® - No Prime, No Choke
Engine Displacement (cc)
724
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hydro-Gear® EZT®
Ground Speed-Fwd (mph)
0-7.0
Ground Speed-Rev (mph)
0-4.0
Brake
Integrated
Frame
12-Gauge Steel
Front Tires (in)
11 x 4 - 5
Front Axle

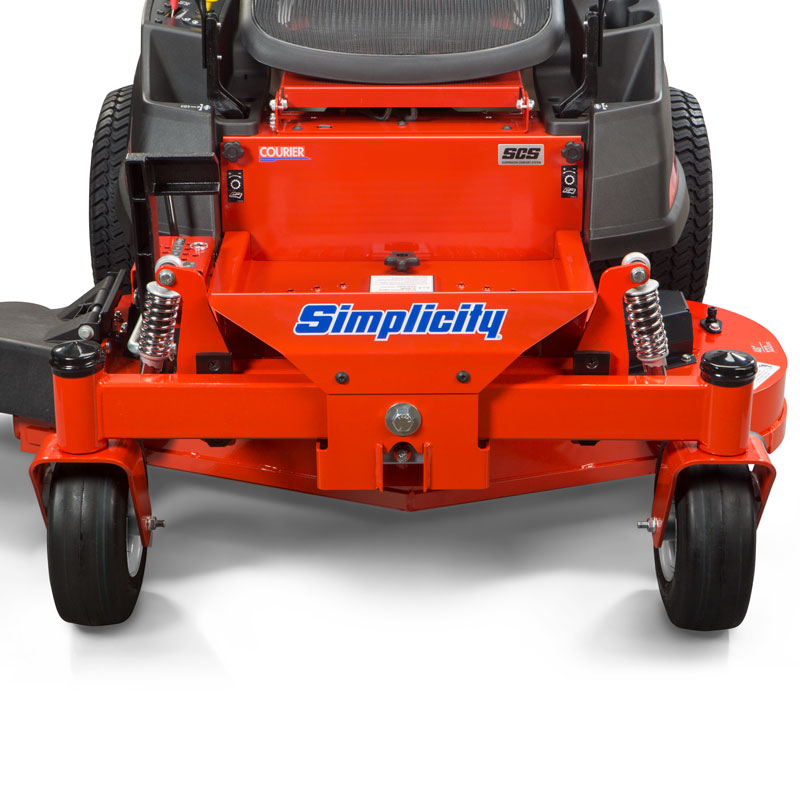

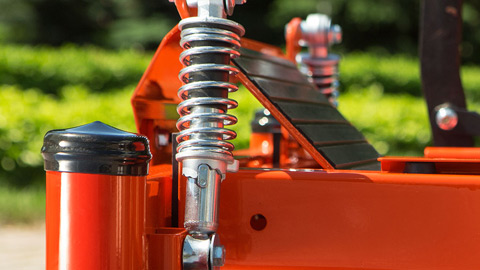

Pivoting w/ shocks
Rear Tires (in)
20 x 8 - 8
Seat
Mid-Back Mesh
Suspension
Front
Cutting Width (in)
44
Mower Deck Type
Deep Profile
Height-of-Cut (in)
1.5-4.5
Height-of-Cut Positions
13-Foot Assist
Number of Blades
3
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
2 Front/Rear Roller
Spindle
Cast-Aluminum
Cargo Bed +
Standard
Steering
Twin-Levers
Headlights
Optional
Fuel Level Indicator
Sight
Cup Holder
Two sizes / Fender
Assembled Length (in)
72
Rear Bumper
Standard, Steel Rear
Roll Over Protection (ROPS)
N/A
Assembled Width (in)
54
Assembled Height (in)
42
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
N/A
Manuals
Customer Contact Guide - English, Spanish, FrenchCustomer Contact Guide - English, Spanish, FrenchCustomer Contact Guide - English, Spanish, FrenchIllustrated Parts List - EnglishIllustrated Parts List - EnglishIllustrated Parts List - EnglishInstruction Sheet - English, Spanish, FrenchMaintenance Guide - Eastern EuropeanOperator's Manual - English, Spanish, FrenchOperator's Manual - English, Spanish, FrenchOperator's Manual - English, Spanish, FrenchOperator's Manual - English, Spanish, FrenchSetup Guide - English, Spanish, FrenchSetup Guide - English, Spanish, FrenchSetup Guide - English, Spanish, FrenchSetup Guide - English, Spanish, FrenchSetup Guide - English, Spanish, FrenchSetup Guide - English, Spanish, FrenchSetup Guide - English, Spanish, FrenchModel
2691519
Marketing Model
23/36"
US MSRP †
$2,949.00
CAN MSRP †
$3,799.00
Engine Brand
Briggs & Stratton®
Engine Model
Professional Series™
Start Type
Key
Power Rating *
23
Cylinders
2
Choke/Throttle
ReadyStart® - No Prime, No Choke
Engine Displacement (cc)
724
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hydro-Gear® EZT®
Ground Speed-Fwd (mph)
0 - 6.0
Ground Speed-Rev (mph)
0 - 3.0
Brake
Integrated
Frame
12-Gauge Steel
Front Tires (in)
11 x 4-5
Front Axle
Steel Fixed
Rear Tires (in)
18 x 6.5-8
Seat
Mid-Back Mesh
Suspension
None
Cutting Width (in)
36
Mower Deck Type
Fabricated
Height-of-Cut (in)
1.5 - 4.5
Height-of-Cut Positions
7-Foot Assist
Number of Blades
2
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
None, Rear Roller
Spindle
Cast-Aluminum
Cargo Bed +
Optional
Steering
Twin-Levers
Headlights
Optional
Fuel Level Indicator
Sight
Cup Holder
One / Fender
Assembled Length (in)
70
Rear Bumper
Standard, Steel Rear
Roll Over Protection (ROPS)
N/A
Assembled Width (in)
50
Assembled Height (in)
43
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
Model
2691520
Marketing Model
18/36"
US MSRP †
$3,049.00
CAN MSRP †
$3,999.00
Engine Brand
Kawasaki®
Engine Model
FR600V
Start Type
Key
Power Rating *
18
Cylinders
2
Choke/Throttle
Separate Choke & Throttle
Engine Displacement (cc)
603
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hydro-Gear® EZT®
Ground Speed-Fwd (mph)
0 - 6.0
Ground Speed-Rev (mph)
0 - 3.0
Brake
Integrated
Frame
12-Gauge Steel
Front Tires (in)
11 x 4-5
Front Axle
Steel Fixed
Rear Tires (in)
18 x 6.5-8
Seat
Mid-Back Mesh
Suspension
None
Cutting Width (in)
36
Mower Deck Type
Fabricated
Height-of-Cut (in)
1.5 - 4.5
Height-of-Cut Positions
7-Foot Assist
Number of Blades
2
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
None, Rear Roller
Spindle
Cast-Aluminum
Cargo Bed +
Optional
Steering
Twin-Levers
Headlights
Sight
Fuel Level Indicator
Sight
Cup Holder
One / Fender
Assembled Length (in)
70
Rear Bumper
Standard, Steel Rear
Roll Over Protection (ROPS)
N/A
Assembled Width (in)
50
Assembled Height (in)
43
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
Model
2691657
Marketing Model
23/42
US MSRP †
$3,149.00
CAN MSRP †
$4,199.00
Engine Brand
Briggs & Stratton
Engine Model
Professional Series™ V-Twin
Start Type
Key
Power Rating *
23
Cylinders
2
Choke/Throttle
ReadyStart® - No Prime, No Choke
Engine Displacement (cc)
724
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hydro-Gear® EZT®
Ground Speed-Fwd (mph)
0-7.0
Ground Speed-Rev (mph)
0-4.0
Brake
Integrated
Frame
12-Gauge Steel
Front Tires (in)
11 x 6.5
Front Axle
Pivoting w/ shocks
Rear Tires (in)
20 x 8 - 8
Seat
Mid-Back Mesh
Suspension
Front
Cutting Width (in)
42
Mower Deck Type
Fabricated
Height-of-Cut (in)
1.5-4.5
Height-of-Cut Positions
13-Foot Assist
Number of Blades
2
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
Rear Roller
Spindle
Cast-Aluminum
Cargo Bed +
Optional
Steering
Twin-Levers
Headlights
Optional
Fuel Level Indicator
Sight
Cup Holder
Two sizes / Fender
Assembled Length (in)
72
Rear Bumper
Standard, Steel Rear
Roll Over Protection (ROPS)
N/A
Assembled Width (in)
55
Assembled Height (in)
42
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
Model
2691658
Marketing Model
21.5/42
US MSRP †
$3,399.00
CAN MSRP †
$4,449.00
Engine Brand
Kawasaki®
Engine Model
FR651 V-Twin OHV
Start Type
Key
Power Rating *
21.5
Cylinders
2
Choke/Throttle
Separate Choke & Throttle
Engine Displacement (cc)
726
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hydro-Gear® EZT®
Ground Speed-Fwd (mph)
0-7.0
Ground Speed-Rev (mph)
0-4.0
Brake
Integrated
Frame
12-Guage Steel
Front Tires (in)
11 x 6.5
Front Axle
Pivoting w/ shocks
Rear Tires (in)
20 x 8-8
Seat
Mid-Back Mesh
Suspension
Front
Cutting Width (in)
42
Mower Deck Type
Fabricated
Height-of-Cut (in)
1.5 - 4.5
Height-of-Cut Positions
13
Number of Blades
2
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
Rear Roller
Spindle
Cast-Aluminum
Cargo Bed +
Optional
Steering
Twin-Levers
Headlights
Optional
Fuel Level Indicator
Sight
Cup Holder
Two sizes / Fender
Assembled Length (in)
72
Assembled Width (in)
55
Assembled Height (in)
42
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
Rear Bumper
Standard, Steel Rear
Model
2691659
Marketing Model
23/48
US MSRP †
$3,899.00
CAN MSRP †
$5,049.00
Engine Brand
Briggs & Stratton
Engine Model
Professional Series™ V-Twin
Start Type
Key
Power Rating *
23
Cylinders
2
Choke/Throttle
ReadyStart® - No Prime, No Choke
Engine Displacement (cc)
724
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hydro-Gear® EZT®
Ground Speed-Fwd (mph)
0-7.0
Ground Speed-Rev (mph)
0-4.0
Brake
Integrated
Frame
12-Gauge Steel
Front Tires (in)
11 x 6.5
Front Axle
Pivoting w/ shocks
Rear Tires (in)
20 x 10 - 8
Seat
Mid-Back Mesh
Suspension
Front & Rear
Cutting Width (in)
48
Mower Deck Type
Fabricated
Height-of-Cut (in)
1.5-4.5
Height-of-Cut Positions
13-Foot Assist
Number of Blades
3
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
2 Front/Rear Roller
Spindle
Cast-Aluminum
Cargo Bed +
Standard
Steering
Twin-Levers
Headlights
Optional
Fuel Level Indicator
Standard Gauge / On Fuel Tank
Cup Holder
Two sizes / Fender
Assembled Length (in)
72
Rear Bumper
Standard, Steel Rear
Roll Over Protection (ROPS)
N/A
Assembled Width (in)
59
Assembled Height (in)
42
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
Model
2691660
Marketing Model
21.5/48
US MSRP †
$4,099.00
CAN MSRP †
$5,249.00
Engine Brand
Kawasaki®
Engine Model
FR651 V-Twin OHV
Start Type
Key
Power Rating *
21.5
Cylinders
2
Choke/Throttle
Separate Choke & Throttle
Engine Displacement (cc)
726
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hydro-Gear® EZT®
Ground Speed-Fwd (mph)
0-7.0
Ground Speed-Rev (mph)
0-4.0
Brake
Integrated
Frame
12-Guage Steel
Front Tires (in)
11 x 6.5
Front Axle
Pivoting w/ shocks
Rear Tires (in)
20 x 10-8
Seat
Mid-Back Mesh
Suspension
Front & Rear
Cutting Width (in)
48
Mower Deck Type
Fabricated
Height-of-Cut (in)
1.5 - 4.5
Height-of-Cut Positions
13
Number of Blades
3
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
2 Front, Rear Roller
Spindle
Cast-Aluminum
Cargo Bed +
Standard
Steering
Twin-levers
Headlights
Optional
Fuel Level Indicator
Standard Gauge / On Fuel Tank
Cup Holder
Two sizes / Fender
Assembled Length (in)
72
Rear Bumper
Standard, Steel Rear
Assembled Width (in)
59
Assembled Height (in)
42
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
Model
2691661
Marketing Model
25/52
US MSRP †
$4,449.00
CAN MSRP †
$5,699.00
Engine Brand
Briggs & Stratton
Engine Model
Professional Series™ V-Twin
Start Type
Key
Power Rating *
25
Cylinders
2
Choke/Throttle
ReadyStart® - No Prime, No Choke
Engine Displacement (cc)
724
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hydro-Gear® ZT-2800®
Ground Speed-Fwd (mph)
0-8.0
Ground Speed-Rev (mph)
0-4.0
Brake
Integrated
Frame
12-Gauge Steel
Front Tires (in)
11 x 6.5
Front Axle
Pivoting w/ shocks
Rear Tires (in)
20 x 10 - 10
Seat
Mid-Back Mesh
Suspension
Front & Rear
Cutting Width (in)
52
Mower Deck Type
Fabricated
Height-of-Cut (in)
1.5-4.5
Height-of-Cut Positions
13-Foot Assist
Number of Blades
3
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
2 Front/Rear Roller
Spindle
Cast-Aluminum
Cargo Bed +
Standard
Steering
Twin-Levers
Headlights
Optional
Fuel Level Indicator
Standard Gauge / On Fuel Tank
Cup Holder
Two sizes / Fender
Assembled Length (in)
72
Rear Bumper
Standard, Steel Rear
Roll Over Protection (ROPS)
N/A
Assembled Width (in)
65
Assembled Height (in)
43
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
Model
2691662
Marketing Model
21.5/52
US MSRP †
$4,649.00
CAN MSRP †
$5,899.00
Engine Brand
Kawasaki®
Engine Model
FR651 V-Twin OHV
Start Type
Key
Power Rating *
21.5
Cylinders
2
Choke/Throttle
Separate Choke & Throttle
Engine Displacement (cc)
726
Fuel Tank Capacity (gal)
3
Battery(cca)
230
Transmission Type
Hydro-Gear® ZT-2800®
Ground Speed-Fwd (mph)
0-8.0
Ground Speed-Rev (mph)
0-4
Brake
Integrated
Frame
12-Guage Steel
Front Tires (in)
11 x 6.5
Front Axle
Pivoting w/ shocks
Rear Tires (in)
20 x 10-10
Seat
Mid-Back Mesh
Suspension
Front & Rear
Cutting Width (in)
52
Mower Deck Type
Fabricated
Height-of-Cut (in)
1.5 - 4.5
Height-of-Cut Positions
13
Number of Blades
3
Blade Engagement
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Anti-Scalp Wheels
2 Front, Rear Roller
Spindle
Cast-Aluminum
Cargo Bed +
Standard
Steering
Twin-Levers
Headlights
Optional
Fuel Level Indicator
Standard Gauge / On Fuel Tank
Cup Holder
Two sizes / Fender
Assembled Length (in)
72
Rear Bumper
Standard, Steel Rear
Assembled Width (in)
65
Assembled Height (in)
43
Consumer Warranty (Product) **
3-Years
Commercial Warranty (Product) **
90-Days
Fabricated Mower Deck Warranty **
Lifetime
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
+50 lb. capacity, do not overload; do not carry passengers. See operator’s manual for details.
**See operator’s manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model
2691501
2691502
2691501
Marketing Model
19/36"
23/44"
19/36"
US MSRP †
$2,649.00
$2,849.00
$2,649.00
CAN MSRP †
$3,499.00
$3,699.00
$3,499.00
Engine Brand
Briggs & Stratton®
Briggs & Stratton®
Briggs & Stratton®
Engine Model
Professional Series™
Professional Series™
Professional Series™
Start Type
Key
Key
Key
Power Rating *
19
23
19
Cylinders
1
2
1
Choke/Throttle
Choke-A-Matic
ReadyStart® - No Prime, No Choke
Choke-A-Matic
Engine Displacement (cc)
500
724
500
Fuel Tank Capacity (gal)
3
3
3
Battery(cca)
230
230
230
Transmission Type
Hyrdo-Gear® EZT®
Hydro-Gear® EZT®
Hyrdo-Gear® EZT®
Ground Speed-Fwd (mph)
0 - 6.0
0 - 6.0
0 - 6.0
Ground Speed-Rev (mph)
0 - 3.0
0 - 3.0
0 - 3.0
Brake
Integrated
Integrated
Integrated
Frame
12-Gauge Steel
12-Gauge Steel
12-Gauge Steel
Front Tires (in)
11 x 4-5
11 x 4-5
11 x 4-5
Front Axle
Steel Fixed
Steel Fixed
Steel Fixed
Rear Tires (in)
18 x 6.5-8
18 x 8.5 - 8
18 x 6.5-8
Seat
Mid-Back Mesh
Mid-Back Mesh
Mid-Back Mesh
Suspension
None
None
None
Cutting Width (in)
36
44
36
Mower Deck Type
Fabricated
Stamped
Fabricated
Height-of-Cut (in)
1.5 - 4.5
1.5 - 4.5
1.5 - 4.5
Height-of-Cut Positions
7-Foot Assist
7-Foot Assist
7-Foot Assist
Number of Blades
2
3
2
Blade Engagement
Electric PTO Switch
Electric PTO Switch
Electric PTO Switch
Mower Deck Removal
Frame Mounted
Frame Mounted
Frame Mounted
Anti-Scalp Wheels
None, Rear Roller
None, Rear Roller
None, Rear Roller
Spindle
Cast-Aluminum
Cast-Aluminum
Cast-Aluminum
Cargo Bed +
N/A
Optional
N/A
Steering
Twin-Levers
Twin-Levers
Twin-Levers
Headlights
Optional
Optional
Optional
Fuel Level Indicator
Sight
Sight
Sight
Cup Holder
One / Fender
One / Fender
One / Fender
Assembled Length (in)
66
70
66
Roll Over Protection (ROPS)
N/A
N/A
N/A
Assembled Width (in)
50
54
50
Assembled Height (in)
43
43
43
Consumer Warranty (Product) **
3-Years
3-Years
3-Years
Commercial Warranty (Product) **
90-Days
90-Days
90-Days
Fabricated Mower Deck Warranty **
Lifetime
N/A
Lifetime
Rear Bumper
Standard, Tube Rear
Standard, Steel Rear
Standard, Tube Rear
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
+50 lb. capacity, do not overload; do not carry passengers. See operator’s manual for details.
**See operator’s manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Attachments
Reviews
Q&A
