Single-Stage Snow Blowers
SMALL SIZE WITH POWERFUL PERFORMANCE

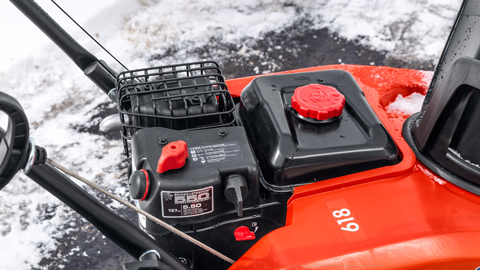

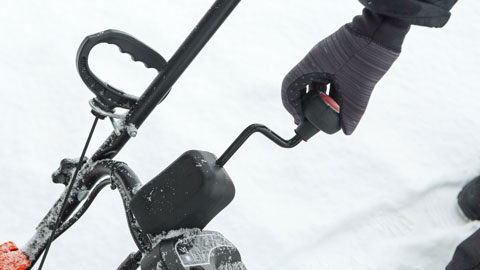

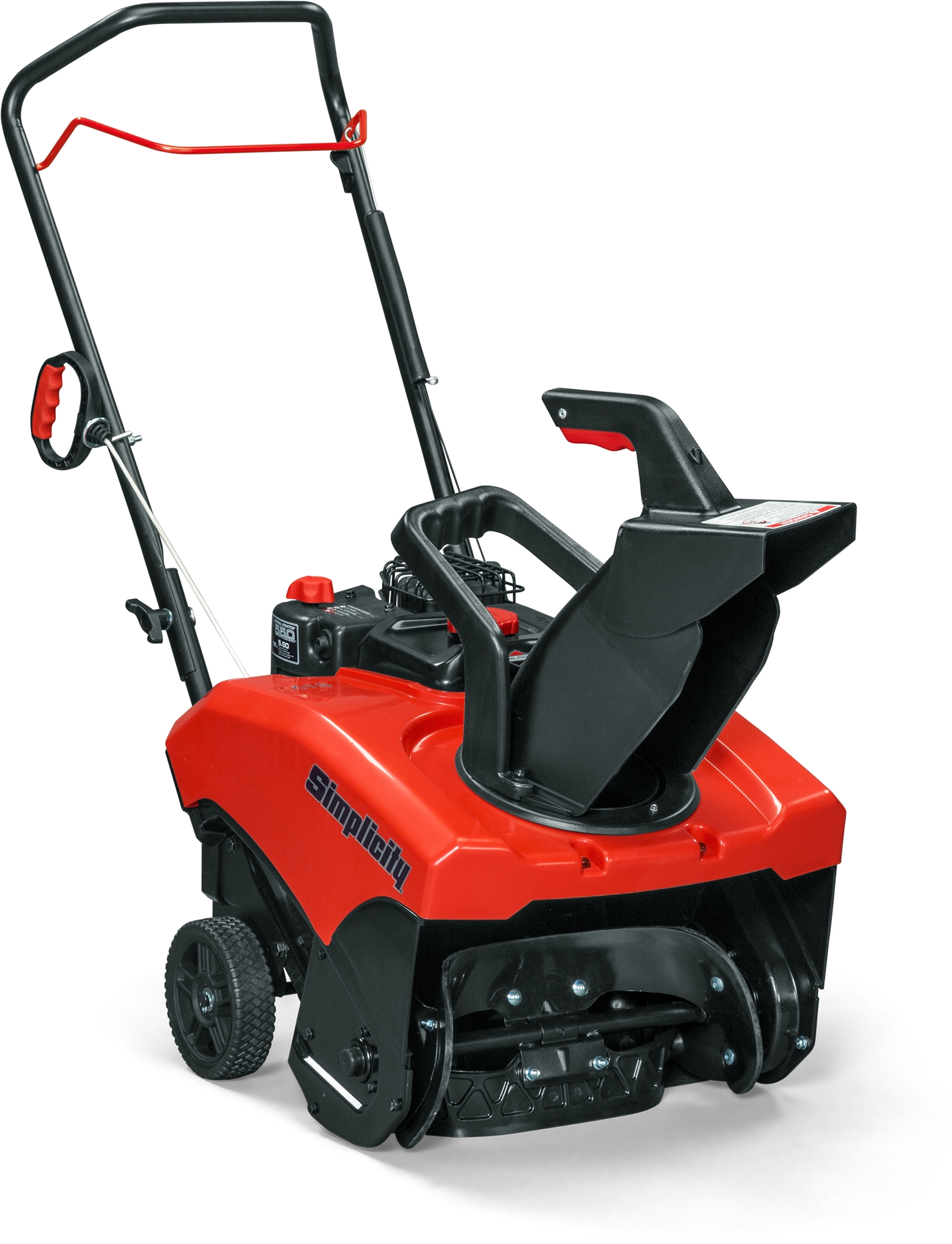

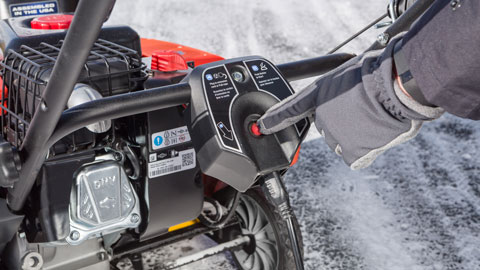

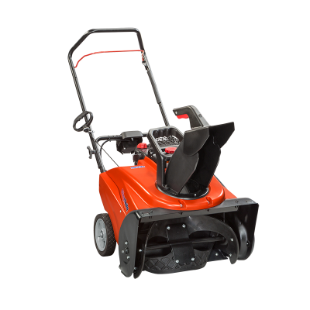

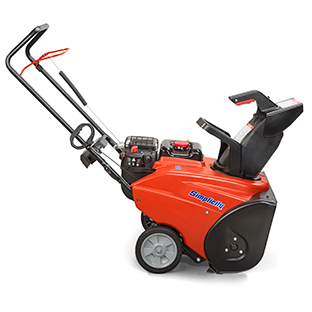

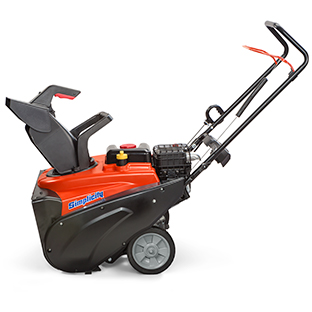

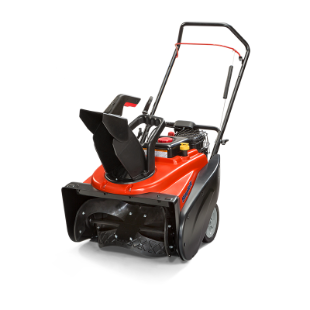

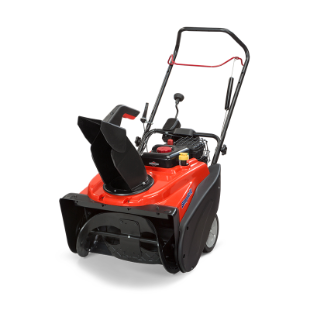

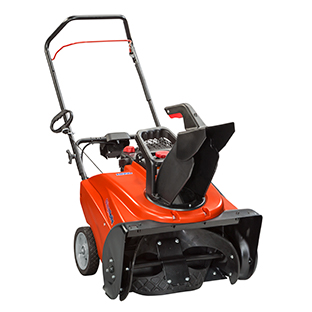

Providing efficient and easy snow removal, the Simplicity single-stage snow blower packs a powerful punch in a small machine. Light and easy to handle, this machine is auger-propelled and has convenient features like electric start (1022E model), a quick-adjust deflector handle and a chute-mounted rotation handle. Powered by the specially designed Briggs & Stratton Snow Series™ engine, this snow blower is a hassle free machine that will get you through many winters to come.
FIND A DEALERPRODUCT RATINGS
Product Details
| Model | 1696714 |
| Marketing Model | 1022E |
| Clearing Width (in) | 22 |
| Throwing Distance (ft)** | 30 |
| Intake Height (in) | 12.5 |
| Auger Type | Thermal Plastic Urethane |
| Auger Gear Case Material | NA |
| Auger Diameter (in) | 10 |
| Number of Impeller Blades | NA |
| Skid Shoes | NA |
| Engine Brand | Briggs & Stratton |
| Engine Model | 950 Snow Series™ |
| Torque (ft-lbs, gross)* | 9.50 |
| Engine Displacement | 208 |
| Fuel Tank Capacity (qts) | 3.2 |
| Starter | Electric with Recoil Back-up |
| Chute Material | Plastic |
| Chute Rotation | 200° Manual |
| Chute Deflector | Quick Deflector |
| Drive Type | Auger-Propelled |
| Ground Speed-FWD (mph) | NA |
| Ground Speed-REV (mph) | NA |
| Tire Size/Thread (in) | 8 x 2 |
| Panel Type | NA |
| Free Hand™ Control | NA |
| Heated Hand Grips | NA |
| Headlight | NA |
| Storage Cover | NA |
| Clear Out Tool | NA |
| Drift Cutters | NA |
| Snow Cab | NA |
| Tire Chains | NA |
| Consumer Warranty (Product) *** | 3-Year |
| Commercial Warranty (Product) *** | 90-Days |
| Blower Type | Single-Stage |
*All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.
**Capacity and throwing distances can be affected greatly by conditions.
***See Operator's manual for complete warranty details
****MAP Price is Market Advertised Price. Prices vary by dealer. Taxes, freight, set-up and delivery not included.
| Model | 1696753 |
| Marketing Model | 1022 |
| Clearing Width (in) | 22 |
| Throwing Distance (ft)** | 30 |
| Intake Height (in) | 12.5 |
| Auger Type | Thermal Plastic Urethane |
| Auger Gear Case Material | NA |
| Auger Diameter (in) | 10 |
| Number of Impeller Blades | NA |
| Skid Shoes | NA |
| Engine Brand | Briggs & Stratton |
| Engine Model | 950 Snow Series™ |
| Torque (ft-lbs, gross)* | 9.50 |
| Engine Displacement | 208 |
| Fuel Tank Capacity (qts) | 3.2 |
| Starter | Recoil |
| Chute Material | Plastic |
| Chute Rotation | 200° Manual |
| Chute Deflector | Quick Deflector |
| Drive Type | Auger-Propelled |
| Ground Speed-FWD (mph) | NA |
| Ground Speed-REV (mph) | NA |
| Tire Size/Thread (in) | 8 x 2 |
| Panel Type | NA |
| Free Hand™ Control | NA |
| Heated Hand Grips | NA |
| Headlight | NA |
| Storage Cover | NA |
| Clear Out Tool | NA |
| Drift Cutters | NA |
| Snow Cab | NA |
| Tire Chains | NA |
| Consumer Warranty (Product) *** | 3-Year |
| Commercial Warranty (Product) *** | 90-Days |
*All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.
**Capacity and throwing distances can be affected greatly by conditions.
***See Operator's manual for complete warranty details
****MAP Price is Market Advertised Price. Prices vary by dealer. Taxes, freight, set-up and delivery not included.
