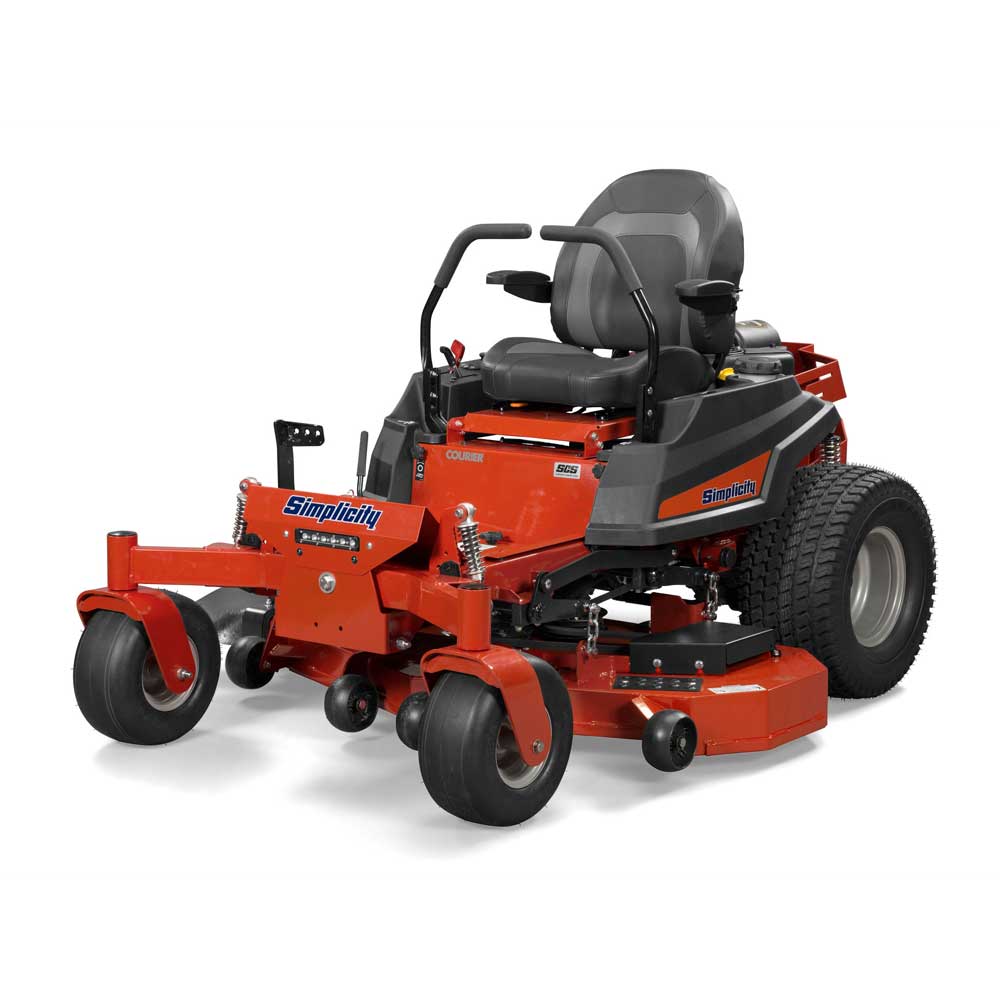

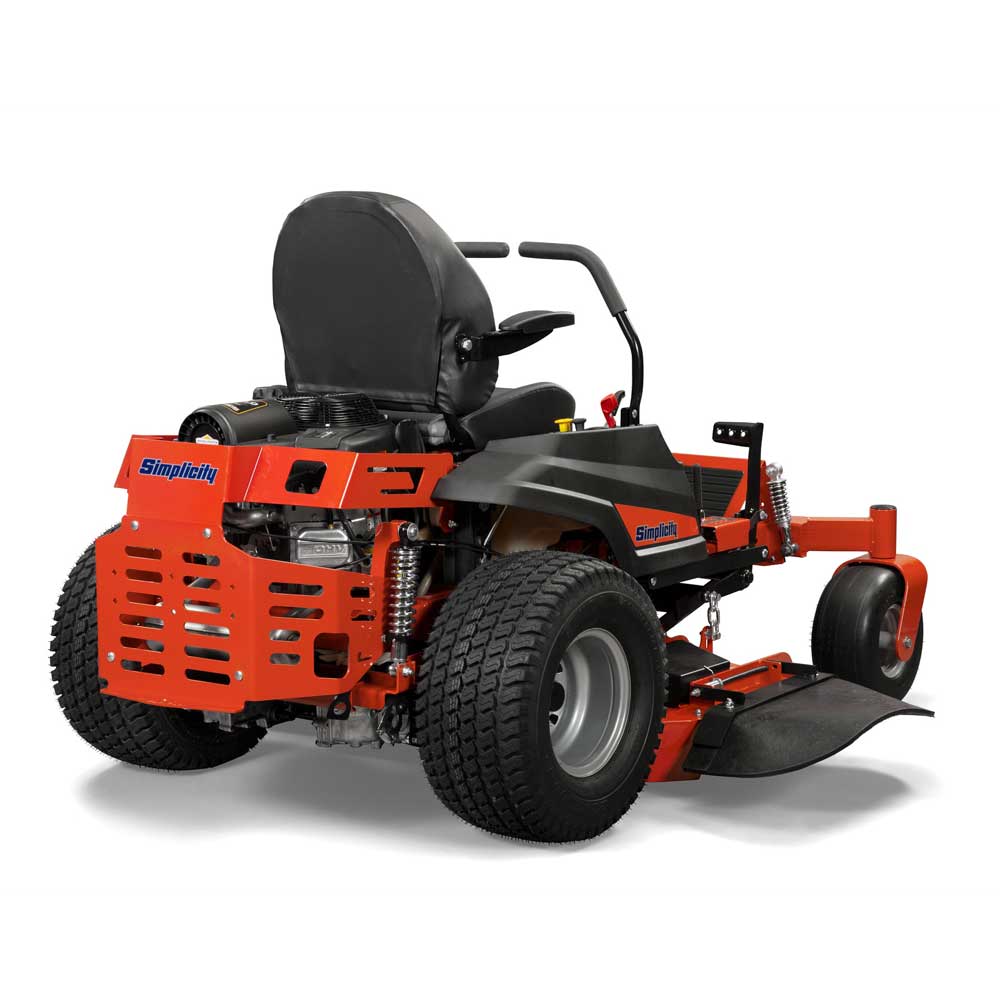

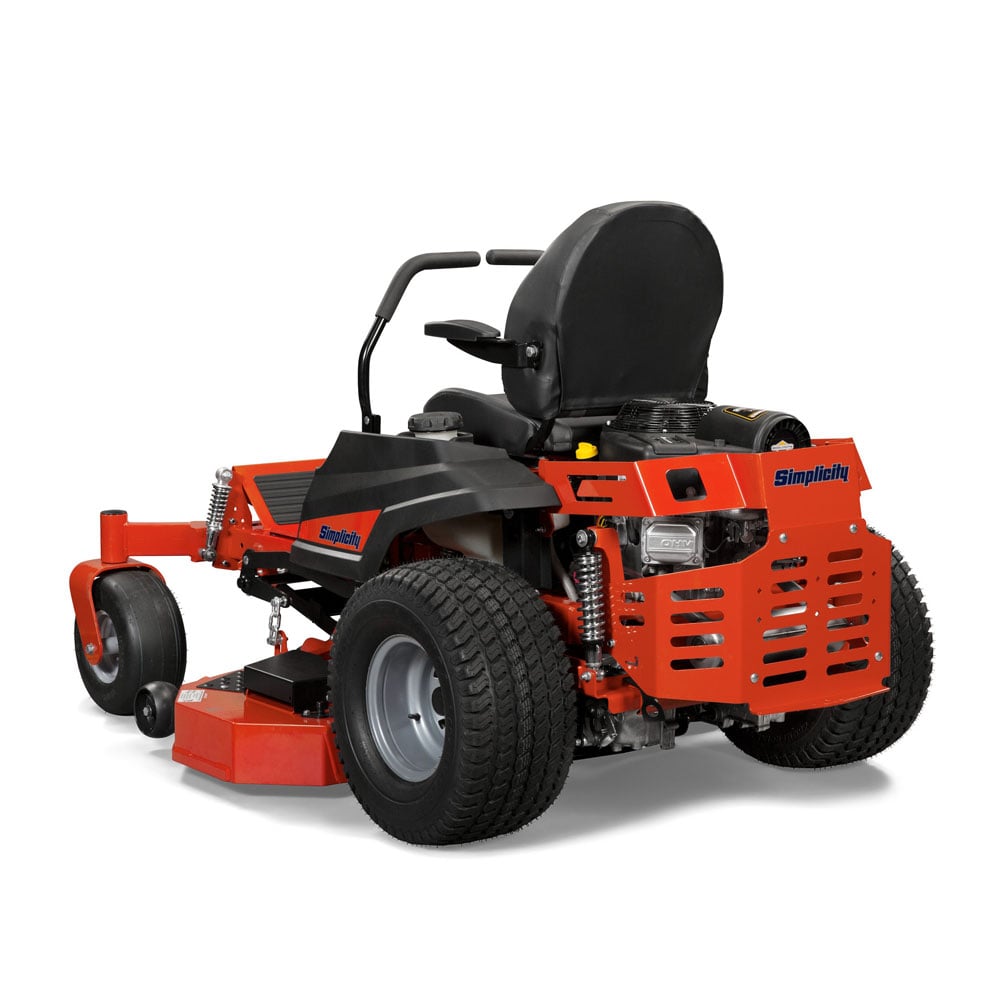

Courier™ XT Zero Turn Mower
THE NEXT GENERATION OF PREMIUM MOWING
Simplicity's newest zero turn, the Courier™ XT, gives you a bigger deck option and a commercial engine so you can manicure your lawn in less time. The luxury touches that Simplicity is famous for make mowing with the Courier XT so enjoyable that you may want to keep on going.
Features

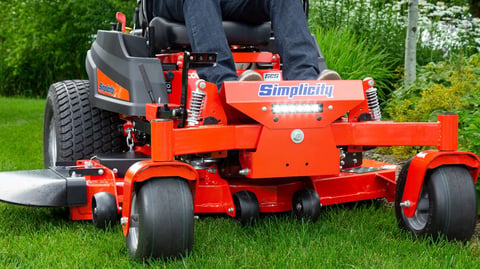

SCS
The exclusive Suspension Comfort System with pivoting front axle means an operator feels 25% less impacted1 than a mower without suspension.

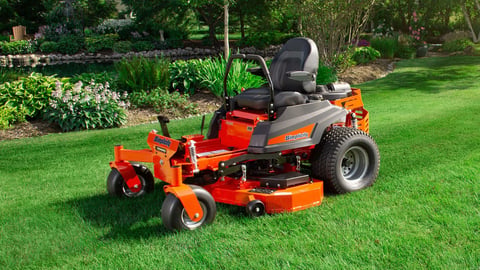

ENHANCED COMPONENTS
Confidently mow day or dusk with the standard integrated LED headlight, premium 18-inch cut & sew seat and improved engine protection.

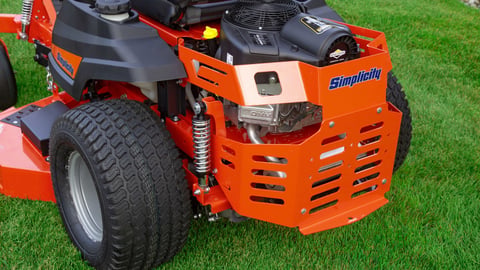

COMMERCIALLY-INSPIRED
22-inch rear tires and large front caster wheels add stability and traction, while the charge pumped Hydro-Gear® ZT-3100® transaxle delivers reliable power.

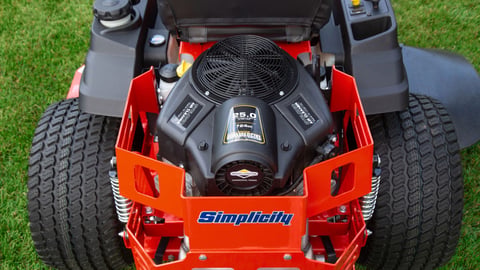

CXI SERIES™ ENGINE
Designed to perform under harsh, demanding conditions. With its patented five-step integrated cyclonic air management system, the Briggs & Stratton® CXi Series™ Engine provides ultimate dust and debris protection for extended engine life.

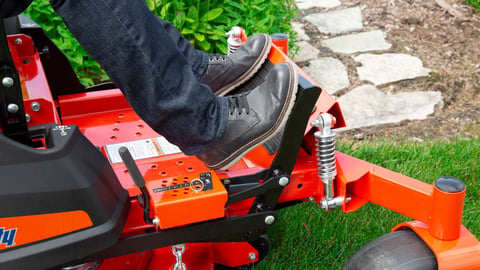

FOOT-OPERATED HEIGHT-OF-CUT
Easily adjust between 13 different height-of-cut positions from 1.5 to 4.5 inches.

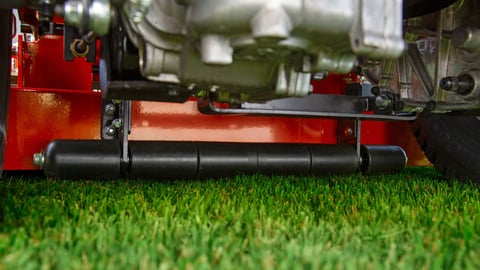

STRIPE LAYING ROLLER
Deck mounted rollers bend the grass to give a ballpark-like striped look that will turn heads in your neighborhood.
Specifications
| 2691814 | 2691815 | 2691952 | |
| US MSRP | $6,899.00 | $7,699.00 | $6,599.00 |
| CAN MSRP | $8,999.00 | $9,999.00 | $8,549.00 |
| Engine Brand | Briggs & Stratton® | Briggs & Stratton® | Briggs & Stratton® |
| Engine Model | Commercial Series V-Twin, Cyclonic & EFM Technology | Commercial Series V-Twin, Cyclonic & EFM Technology | Commercial Series V-Twin, Cyclonic & EFM Technology |
| Start Type | Electric, Key | Electric, Key | Electric, Key |
| Power Rating ** | 25 | 25 | 25 |
| Cylinders | 2 | 2 | 2 |
| Engine Displacement (cc) | 724 | 724 | 724 |
| Choke/Throttle | Separate Choke, Single Lever | Separate Choke, Single Lever | Separate Choke, Single Lever |
| Fuel Tank Capacity (gal) | 3 | 3 | 3 |
| Battery (cca) | 230 | 230 | 230 |
| Transmission Type | Hydro-Gear® ZT-3100® w/ Charge Pumps | Hydro-Gear® ZT-3100® w/ Charge Pumps | Hydro-Gear® ZT-2800® w/ Charge Pumps |
| Ground Speed-Fwd (mph) | 0 - 8.5 | 0 - 8.5 | 0 - 8.5 |
| Ground Speed-Rev (mph) | 0 - 4 | 0 - 4 | 0 - 4 |
| Brake | Internal | Internal | Internal |
| Frame Steel | 12-Gauge | 12-Gauge | 10-Gauge, Doubler Plate |
| Front Axle | Steel Pivoting | Steel Pivoting | Steel Pivoting |
| Front Tires (in) | 13 x 6.5-6 / 4-Ply Smooth | 13 x 6.5-6 / 4-Ply Smooth | 13 x 6.5-6 / 4-Ply Smooth |
| Rear Tires (in) | 22 x 11-10 / Turf | 22 x 11-10 / Turf | 22 x 10.0-10 / Turf |
| Anti-Scalp Wheels | 4-Front | 4-Front | 2-Front |
| Seat | 18" Premium Cut & Sew | 18" Premium Cut & Sew | 18" Premium Cut & Sew |
| Suspension | SCS, Front & Rear | SCS, Front & Rear | SCS, Front & Rear |
| Mower Deck Type | Fabricated | Fabricated | Fabricated |
| Cutting Width (in) | 52 | 61 | 48 |
| Number of Blades | 3 | 3 | 3 |
| Height-of-Cut (in) | 1.5 - 4.5 | 1.5 - 4.5 | 1.5 - 4.5 |
| Height-of-Cut Positions | 13 | 13 | 13 |
| Blade Engagement | Electric PTO Switch | Electric PTO Switch | Electric PTO Switch |
| Mower Deck Removal | Mechanical, Foot Pedal | Mechanical, Foot Pedal | Mechanical, Foot Pedal |
| Spindle | Aluminum w/ Grease Zerk | Aluminum w/ Grease Zerk | Aluminum w/ Grease Zerk |
| Headlights | Standard, LED | Standard, LED | Standard, LED |
| Cup Holder | Standard, 2 | Standard, 2 | Standard, 2 |
| Roll Over Protection (ROPS) | N/A | N/A | N/A |
| Bumper | Steel, Enhanced Design | Steel, Enhanced Design | Steel, Enhanced Design |
| Assembled Length (in) | 78.5 | 80 | 78.5 |
| Assembled Width (in) | 64 | 74 | 59 |
| Assembled Height (in) | 48 | 48 | 49 |
| Consumer Warranty (Product) *** | 3-Years | 3-Years | 3-Years, Unlimited Hours |
| Commercial Warranty (Product) *** | 90-Days | 90-Days | 90-Days |
| Operator's Manuals |
Fine Print
*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices are show in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
