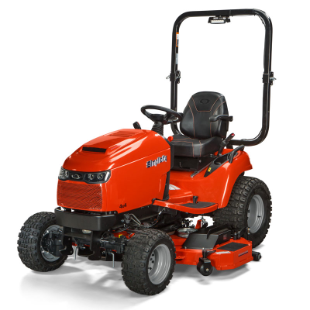

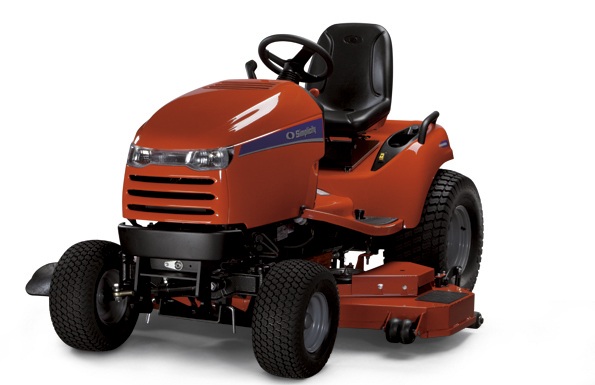

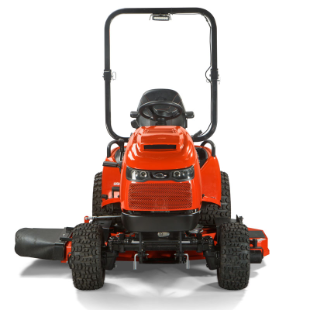

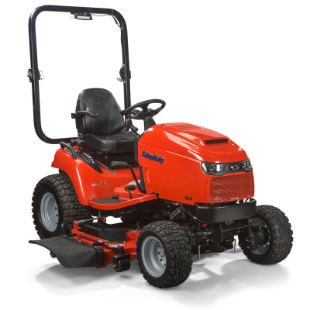

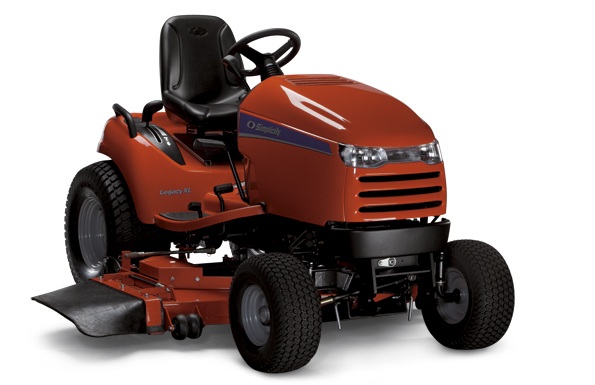

Legacy XL™ Subcompact Garden Tractor

A day's work doesn't have to take all day. The Legacy XL™ combines the toughness of a compact tractor with the comfort and control of a garden tractor, giving you the power and reliability you need to get tough landscaping jobs done with one machine. Shift between 2WD and 4WD on-the-go, and choose from a long list of tractor attachments available at your neighborhood Simplicity® dealer to accomplish any task. The front quick-connected hydraulics and category 1 (modified), 3-point hitch make attaching attachments to the 540rpm PTO a snap. The exclusive Free Floating Mower Deck™ gives you the beautiful lawn you've come to expect from Simplicity® Mowers. (Note: Photos shown without Roll Over Protection Structure (ROPS) – Comes standard on Legacy XL™ Mowers.)

FIND A DEALER

Lawn Tractors Reviews

Product Details

KAWASAKI® LIQUID-COOLED V-TWIN ENGINE

The 27-gross hp** liquid-cooled V-twin engine has low operating temp, is smooth running and it delivers reliability and power you need for tough jobs

TRANSMISSION

At the heart of the Legacy XL™ is the Tuff Torq™ K92 transmission. With 8-cc charge pump that delivers 5.3 gallons of oil flow per minute. That's plenty of hydraulic capacity for powering the tractor and tractor attachments.

ACT

With Automatic Controlled Traction™ (ACT), drive power is continuously supplied to both rear tires maintaining superior traction and lessening turf damage.

TOUGH FRONT & REAR AXLE

A tough cast-iron axle to handle heavy front tractor attachments plus large 1.19-inch diameter rear axles handle up to 1,800 lbs. of axle weight.

4WD

Reach new performance levels with a shaft-driven front axle for reliability and traction. Shift between 2WD and 4WD on-the-go so it's there when you need it.

FOLDABLE ROPS

Fold over ROPS (roll-over protection structure) with retractable seat belt comes standard.

FABRICATED MOWER DECK

The rugged 61" shaft-driven fabricated mower deck is made with 10-gauge steel with reinforced side skirts, overlapped welded corners and a steel reinforced edge to ensure duability for the toughest yard conditions. Includes a limited lifetime warranty.+

**Only Kawasaki Critical Power engines listed in this brochure have been tested in accordance with SAE J1995, verified by TÜV Rheinland Group, horsepower-rated in accordance with SAE J2723, and certified by SAE International. Torque ratings of these engines were not certified by SAE. Actual power and torque output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
+Suggested prices will vary by market. Prices in U.S. dollars. Set-up, delivery, documentation, and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice. Not all models available in California.

Legacy XL™ Subcompact Garden Tractor
Engine Brand Kawasaki®
Engine Model V-Twin
Start Type Key
Power Rating * 27
Cylinders 2
Engine Displacement (cc) 745
Choke/Throttle Separate Choke & Throttle
Fuel Tank Capacity (gal) 6
Battery (cca) 500
Transmission Type Tuff Torq® K92
Ground Speed-Fwd (mph) 0-9.0
Ground Speed-Rev (mph) 0-5.5
Automatic Controlled Traction™ Standard
Brake Internal Wet Disc
Frame Steel 7-Gauge
Front Axle Cast-Iron
Front Tires (in) 18 x 8.5/Field Trac
Rear Tires (in) 26 x 12/Field Trac
Attachment Lift Hydraulic
Seat 18" High-Back
Suspension N/A
Cutting Width (in) 61 (sold separately)
Mower Deck Type Fabricated
Height-of-Cut (in) 1.5-4
Height-of-Cut Positions Infinite/Electric
Number of Blades 3
Blade Engagement Electric PTO Switch
Rear Rollers Full-Width Striping
Mower Deck Removal 2-Quick Pins
Spindle Commercial Aluminum
Mower Steel Gauge 10-Gauge
Washout Port N/A
Cruise Control Standard
Steering Power
Headlights Halogen
Hour Meter Standard
12 Volt DC Outlet Yes
Cup Holder Standard
Hand Grips Standard
Deluxe Instrument Panel N/A
Turning Radius (in) 35 (2WD) / 55 (4WD)
Assembled Length (in) 81
Assembled Width (in) 45
Assembled Height (in) 51
Consumer Warranty (Product) ** 3-Years
Commercial Warranty (Product) ** 90-Days
Fabricated Mower Deck Warranty ** Lifetime
MAP (Minimum Advertised Price) † "$11,699.00 "
Type Differential Hydro w/ Differential Lock
Fuel Gauge Location Standard Gauge/On Dash
4Wheel Drive Standard

*Only Kawasaki Critical Power engines listed in this brochure have been tested in accordance with SAE J1995, verified by TÜV Rheinland Group, horsepower-rated in accordance with SAE J2723, and certified by SAE International. Torque ratings of these engines were not certified by SAE. Actual power and torque output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
†Suggested prices will vary by market. Prices in U.S. dollars. Set-up, delivery, documentation, and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice. Not all models available in California.

TURBO COLLECTION SYSTEM*

The turbo blower tractor attachment easily attaches to the mower and gets power directly from the mower rather than an expensive auxiliary engine design.

WIDE BODY CART COLLECTOR

The 17-bushel hopper tilts for easy emptying; swivel-wheel design makes yard cleanup easy!wild-body-cart



DUMP CART

This sturdy, 10-cu. ft., multi-purpose cart is great for yard chores and easy to attach.

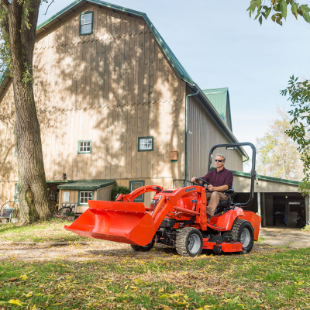

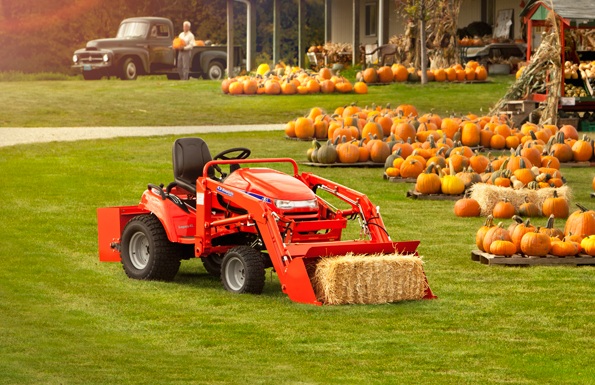

FRONT-END LOADER

Features a 500-lb. lift capacity, a “walk on/off” design and the loader operates with the mower installed. (Note: an additional kit is required to use with 61” mower deck)

FRONT CARRIER AND WEIGHTS

Maintain responsive handling and traction with heavy, rear-mounted attachments.

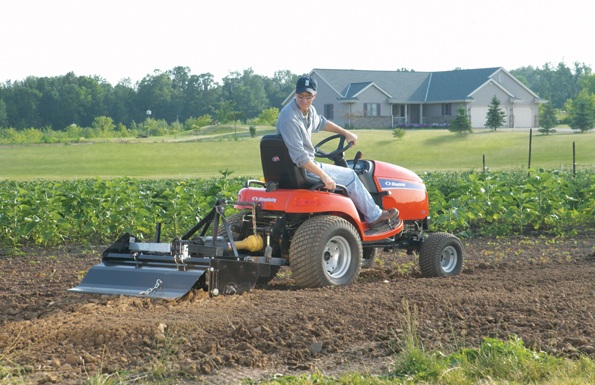

BOX SCRAPER/SCARIFIER

Prepares and levels soil for smoother landscaping. (3-point hitch)

POST HOLE DIGGER

This post hole digger attachment has a 3-point hitch and rear PTO drive a 6" diameter auger.

CLEAN SWEEP™ TRIPLE GRASS CATCHER

Collect up to 10-bushels of grass clippings in three removable bags.

60" SNOW/DOZER BLADE

Heavy-gauge steel, hydraulic lift blade is spring-loaded to absorb shock. Available with multi-position hydraulic angling.

50" TILLER

Featuring a heavyduty gearbox and side shift positioning. This heavy-duty tiller has a cultivating depth up to 7".

TRACTOR TIRE CHAINS, REAR WEIGHTS & CARRIER

Weight carrier and weights install easily. Weights (33- or 50-lbs each) enhance traction on your mower with front tractor attachments or on slippery ground.

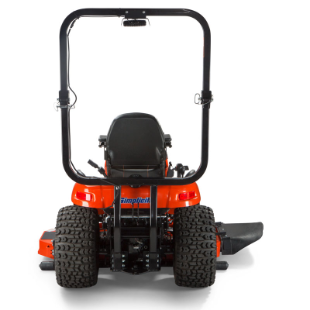

3-POINT HITCH ATTACHMENT CATEGORY 1 (MODIFIED)

Category 1, (modified) and 540 rpm PTO allows operation of heavy rear tractor attachments such as a tiller, cultivator or disk.

60" (HYDRAULIC) ROTARY BROOM

26″ diameter heavy-duty brush, hydraulic or manual angling; shaft driven with quick-coupler design.

SNOW CAB-SOFT SIDE

The snow cab snow blower attachment is made of vinyl with clear, shatterproof, non-fogging Lexan windows. (Broadmoor shown; Cab may vary from model shown.)

47" TWO-STAGE SNOWTHROWER ATTACHMENT

Make heavy-duty snow removal easy with a two-stage snow blower attachment.

SWEEPER

Quickly sweeps clippings and leaves into a high-capacity hooper.  30'' and 36'' models available.

PLUG AERATOR

Aerate 48'' wide and up to 3'' deep. Allows for fertilizing roots in the fall and a quick start for seed in the spring.

MULCHING KIT

Our innovative system reduces grass clippings and returns them to your lawn.

FLAIL MOWER

Rough cut fields. Shaft driven, it handles the toughest brush and overgrown areas. (3-point hitch)

DISK HARROW

52” swath; sixteen 11” disk blades have rugged pulling power to pulverize soil after cultivating. (3-point hitch)

TOW-BEHIND ROTARY MOWER

Shaft-driven, heavy-duty 60” wide mower. Handles field grass and rough terrain.

MOLDBOARD PLOW

Heavy-duty blade produces a fresh planting area. Its 3-point hitch allows for more adjustments and ease of hookup and disconnect.

REAR GRADER BLADE

Category 1, 3-point hitch rear scraper grader blade in 60″ width.
