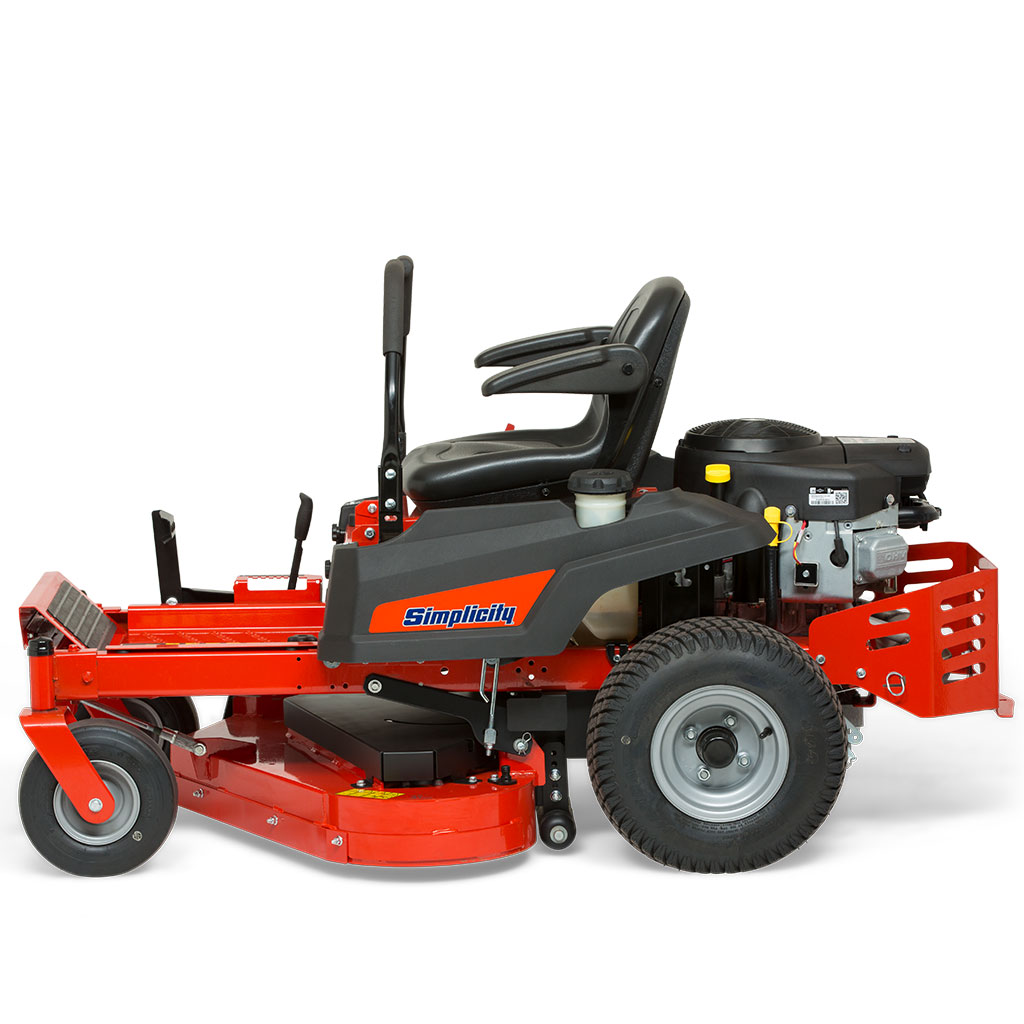

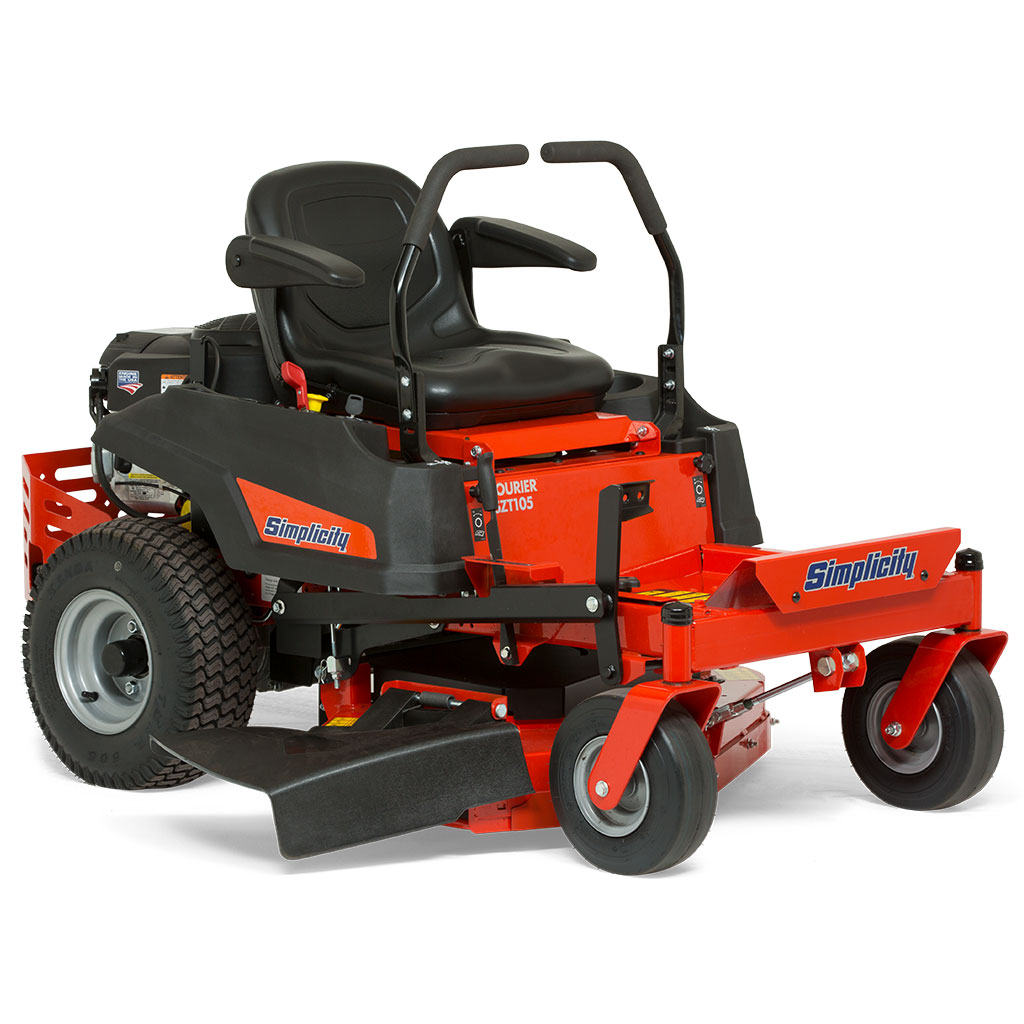

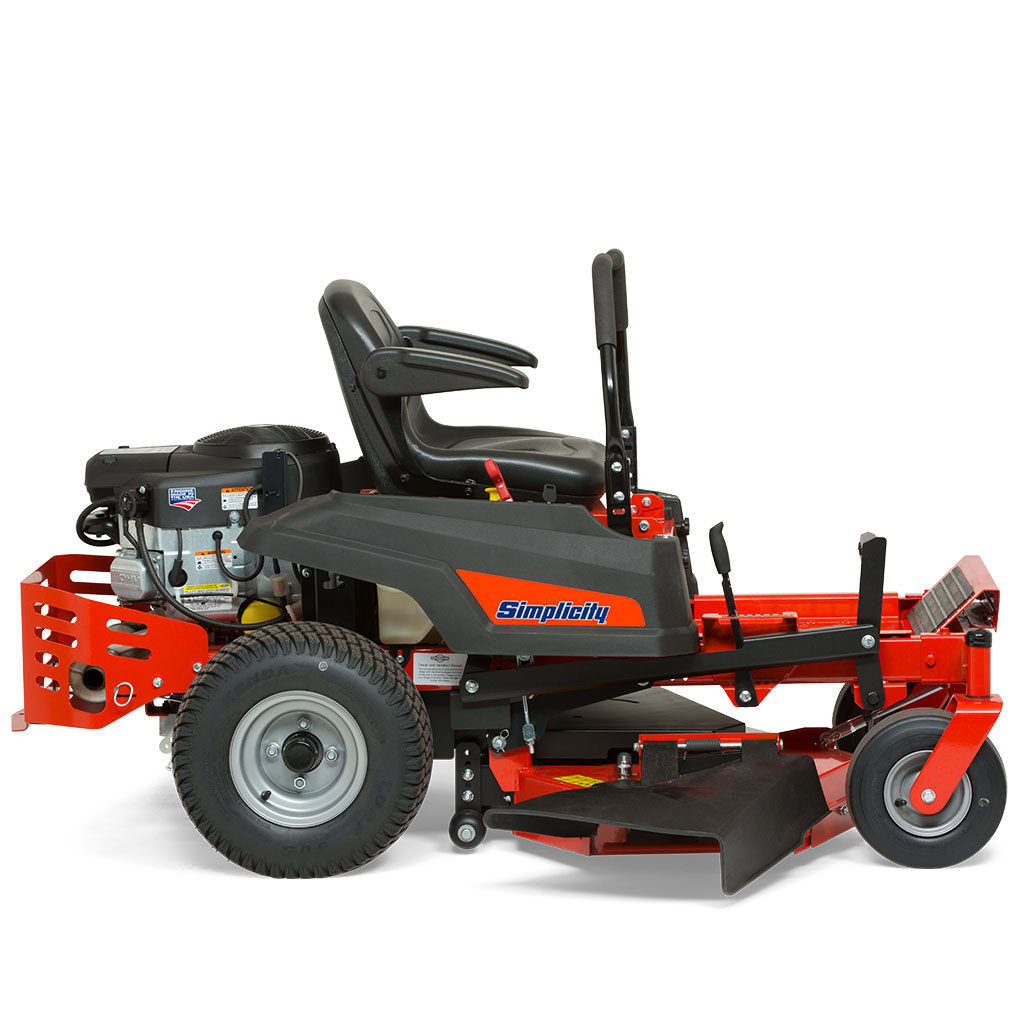

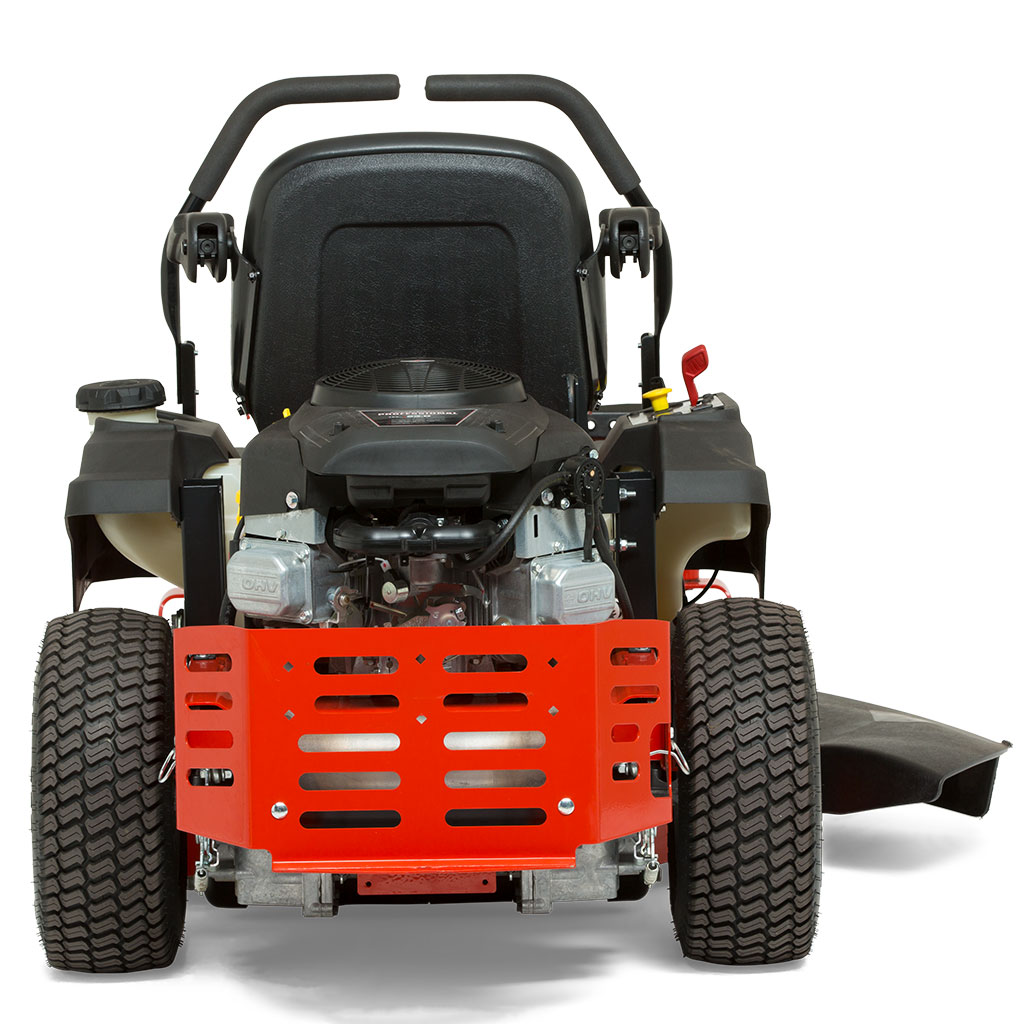

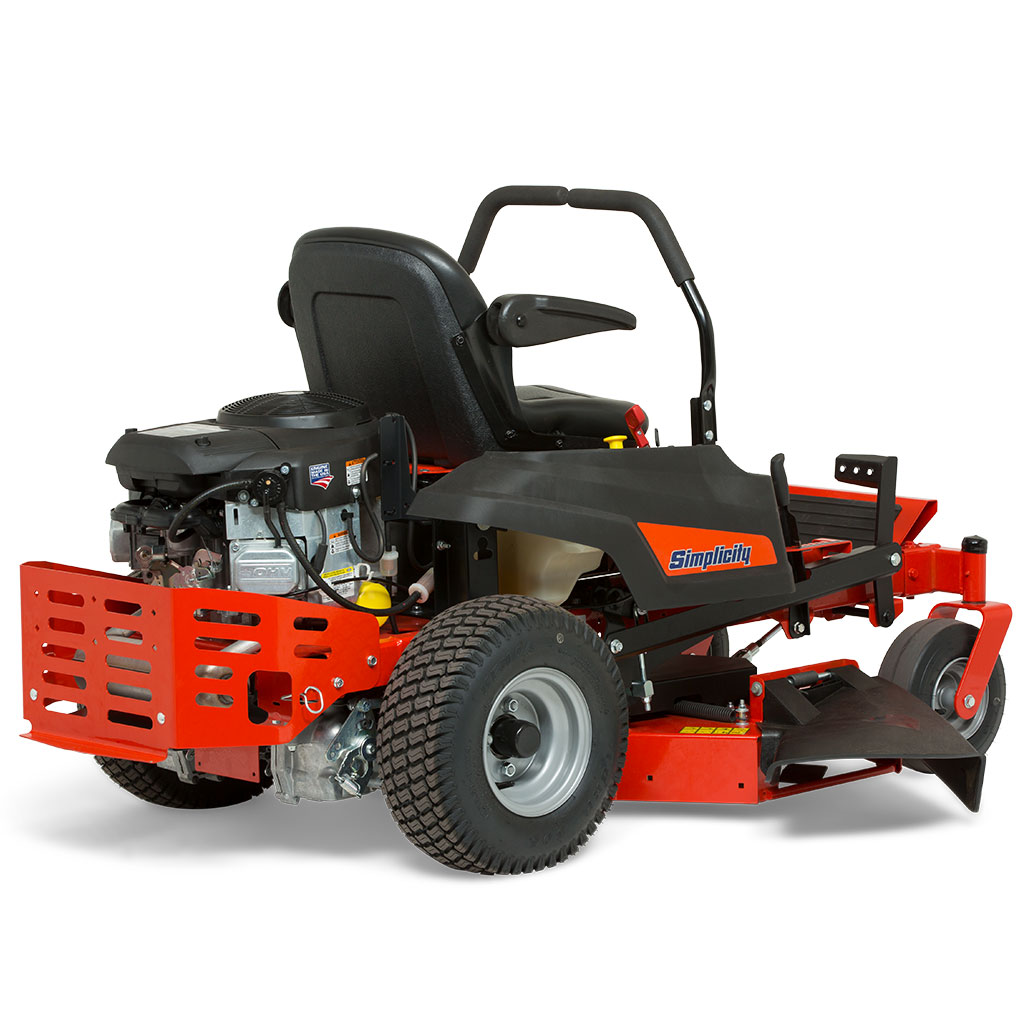

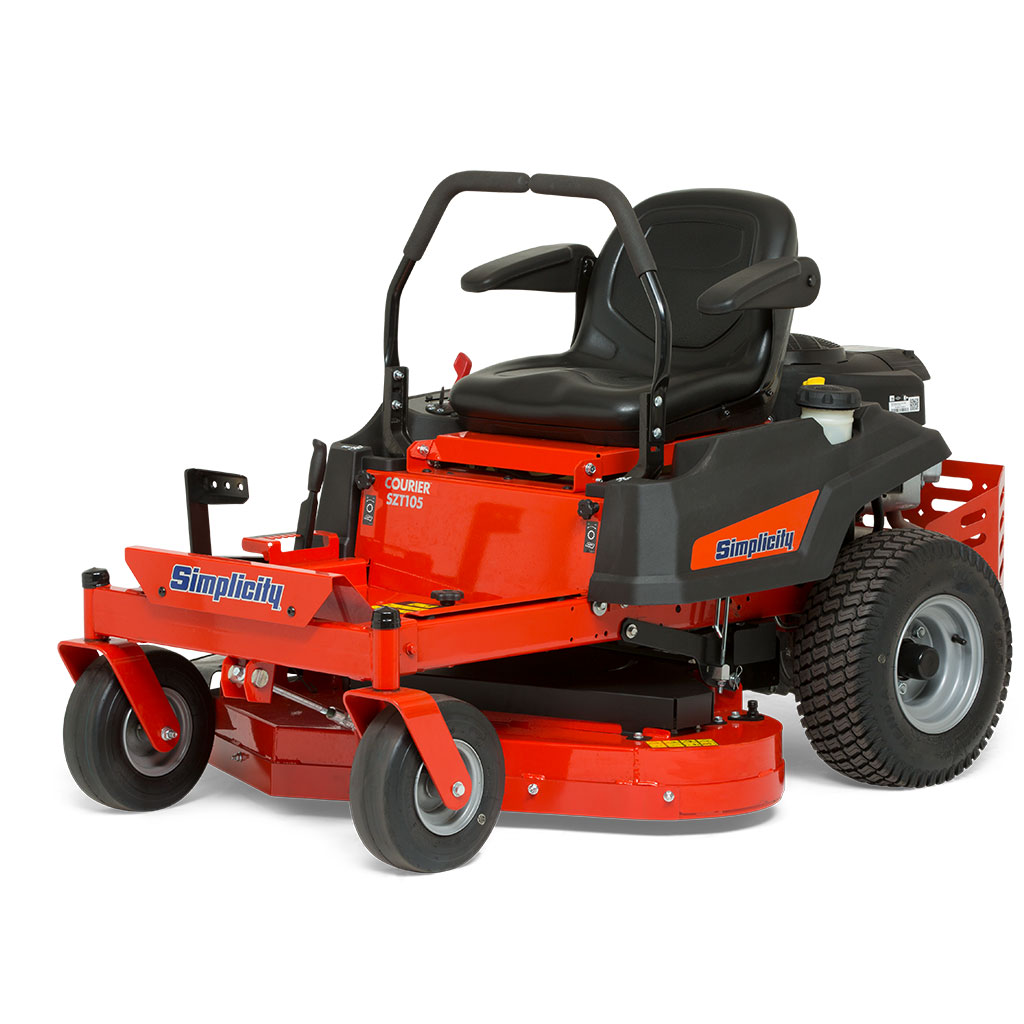

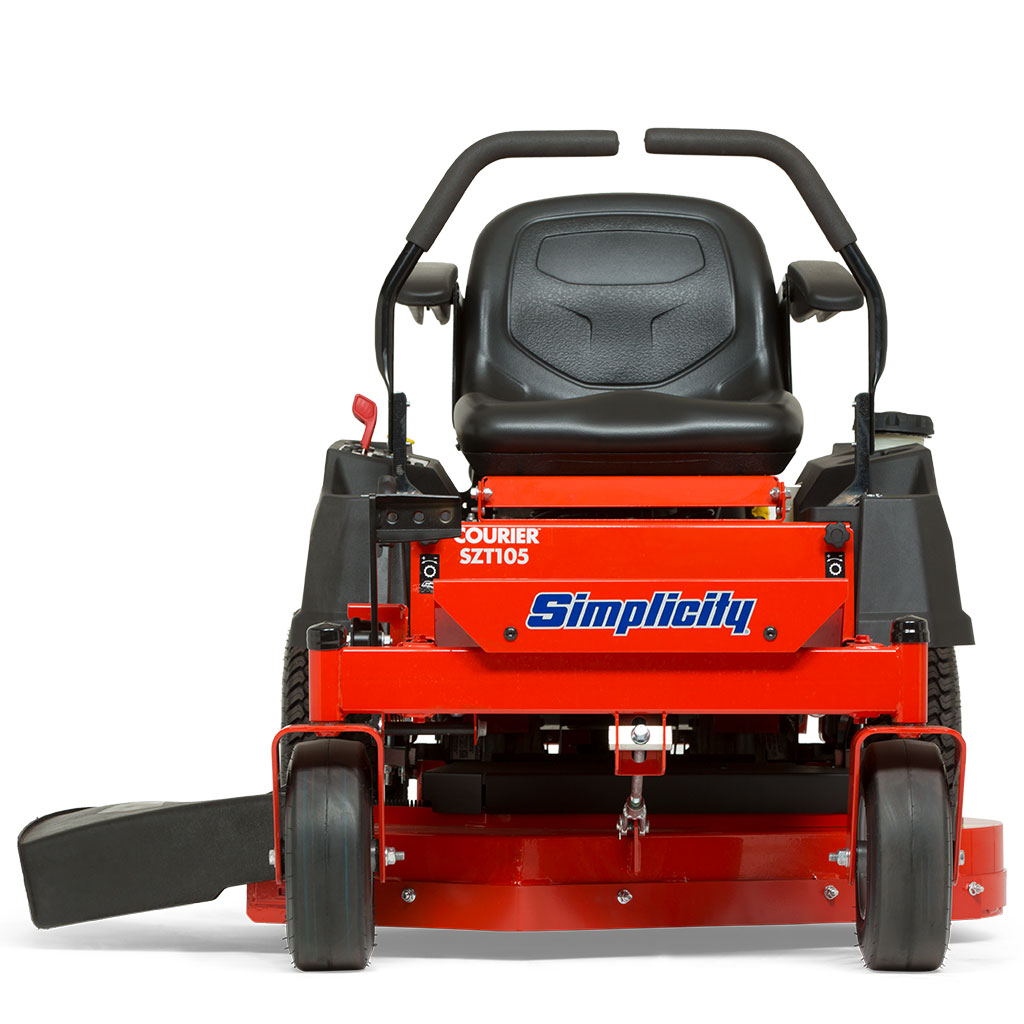

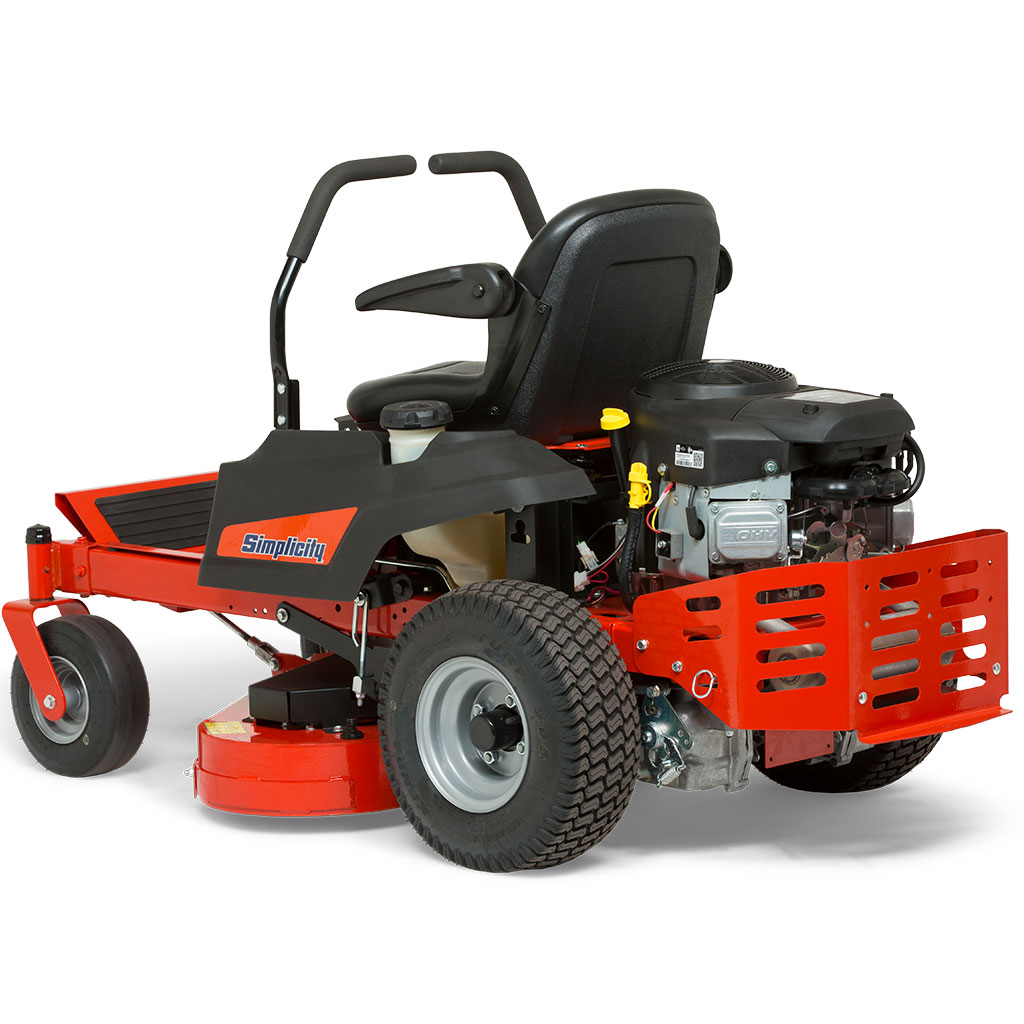

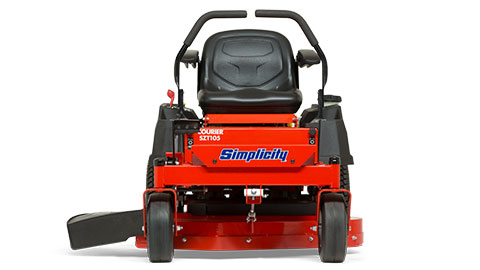

Courier™ SZT105

Click and drag image to rotate.

Courier™ SZT105

Designed for maximum garden access.

The SZT105 brings a whole new level of performance to the comprehensive Courier™ zero turn range. Designed for maximum garden access, this compact zero turn mower get’s to places other zero turns cannot go. It’s compact size makes it easy to navigate even the tightest parts of your lawn and takes up less space when in storage.

KEY FEATURES

• Twin-lever steering controls with tracking adjustment for comfortable operation
• Fabricated steel mower deck
• Mid-back seat
• Electric blade engagement
• Integrated parking brake
• Foot operated mower deck lift

Click and drag image to rotate.

Features

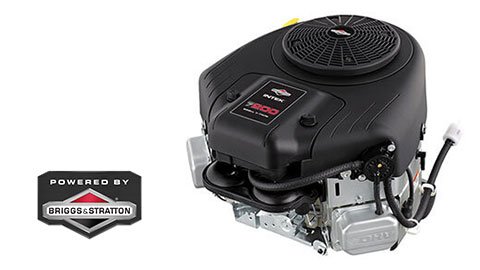

BRIGGS & STRATTON® ENGINE

The Briggs & Stratton® engines provide consistent starting and guarantees durable performance.

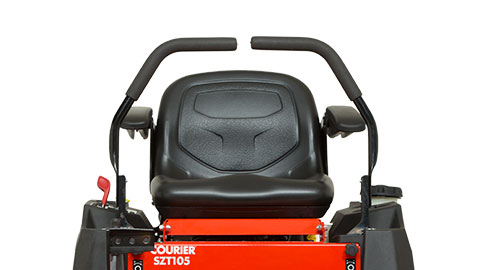

USER COMFORT GUARANTEED

A compact zero turn with high levels of comfort. A big seat with armrests and lot’s of legroom.

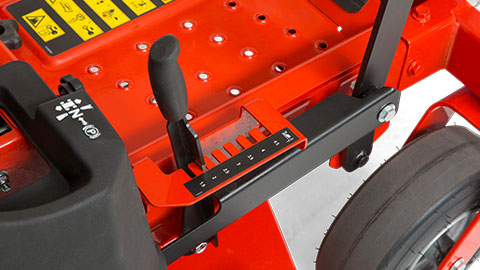

HEIGHT-OF-CUT POSITIONS

Easily choose your preferred cutting height with help of the foot operated deck lift mechanism.

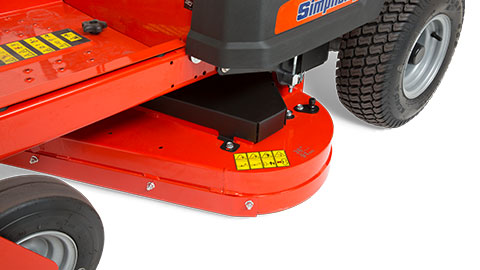

COMPACT DESIGN

The high quality 91 cm compact mower deck is the smallest in it’s class and delivers unparralleled garden access.

FABRICATED MOWER DECK

The fabricated mower deck with reinforced top, side skirts, corners and a steel front edge ensures durability and a quality cut for years to come.

Specifications

Model Name

SZT105

Engine Brand

Briggs & Stratton

Engine Model

Intek™ Series 7200 EXi V-Twin OHV

Cylinders

Starting

Electric, Key Start

Fuel Tank Capacity (l)

Transmission Brand

Hydro-Gear® EZT®

Ground Speed - Fwd (km/h)

0 - 8,0

Ground Speed - Rev (km/h)

0 - 4,0

Frame

Steel

Front Axle

Steel Fixed

Front Tyres (in)

11 x 4

Rear Tyres (in)

18 x 6,5

Turning Radius (cm)

Seat

Mid-Back, Adjustable, with Armrests

Suspension

Cutting Width

36” (91cm)

Mower Deck

Frame Hung

Mower Configuration

Side Discharge

Mower Deck Type

Fabricated Steel

Deck / Attachment Lift

Mechanical

Blade Engagement

Electric

Rear Rollers

Mower Deck Removal

Frame Mounted

Number of Blades

Deck Support Wheels

Cutting Height (cm)

3,8 - 10,8

Cutting Height Positions

10 / Manual

Washout Port

Standard

Hour Meter

Yes

Fuel Gauge

Cargo Bed *

Optional

Length (cm)

178

Width (cm)

125

Height (cm)

107

Wheelbase (cm)

112

Weight (kg)

231

Residential Warranty (Product) **

3-Year Limited

Legacy Material Number

2691691

^{* Measured with deflector down.
** 22,7 kg. capacity, do not overload; do not carry passengers. See operator’s manual for details.
*** See operator's manual or dealer for complete warranty details.}

Accessories

MULCH KIT

Mulch grass clippings back into the lawn and improve lawn quality. (1697102)

TWIN BAG COLLECTOR

Easily collect grass clippings into a double bag collector. (1697100)

Requires: Deck Boot Adapter (1697101)

CARGO BED*

On-the-go versatility and convenience for working in the yard (1696711).

CARGO BED RHINO GRIPS (pair)

Easily mount additional garden tools on your zero turn (1687855YP).

CARGO BED RHINO GRIPS WITH RATCHET (pair)

Increased cushioning and gripping power for items with a diameter from 1"/2,5 cm to 4"/10 cm (1687856YP).

LIGHT KIT

Two LED headlights for when you could use some extra light. (1697104)
