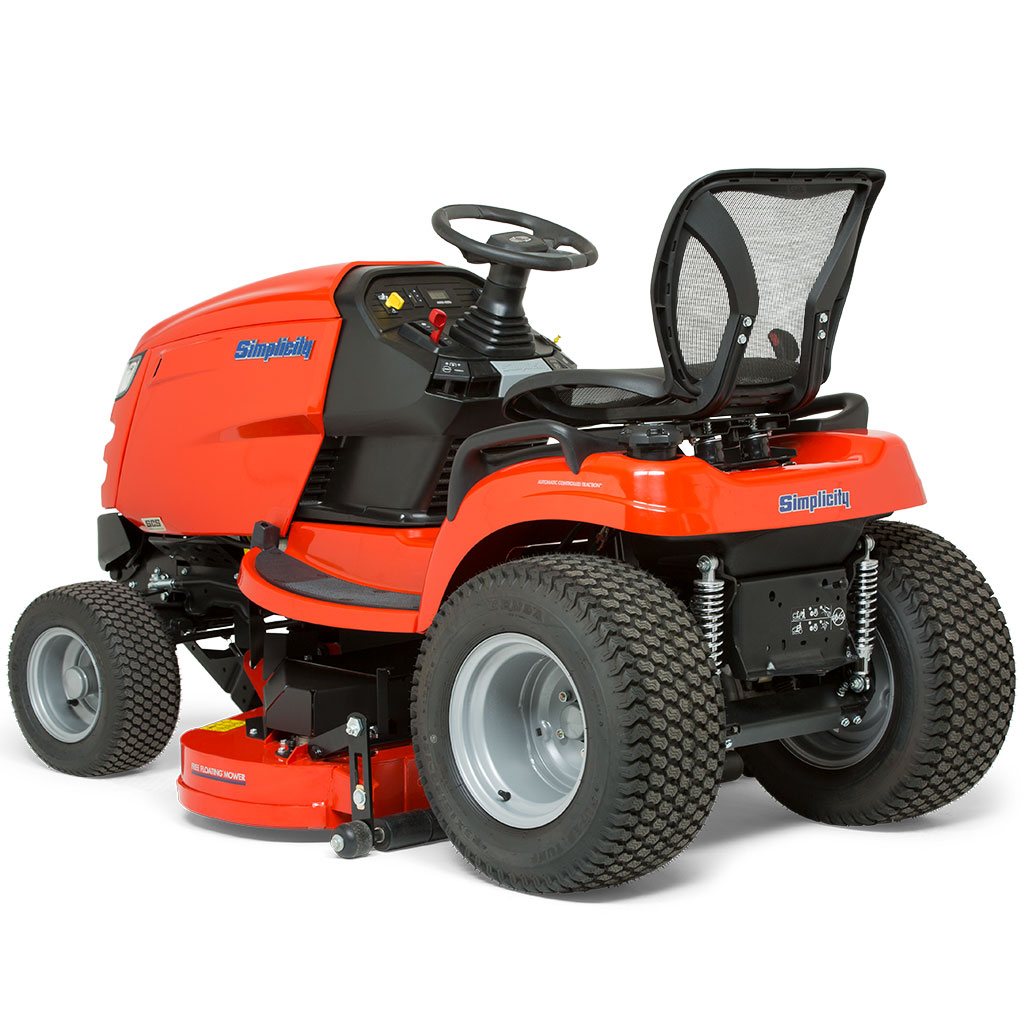

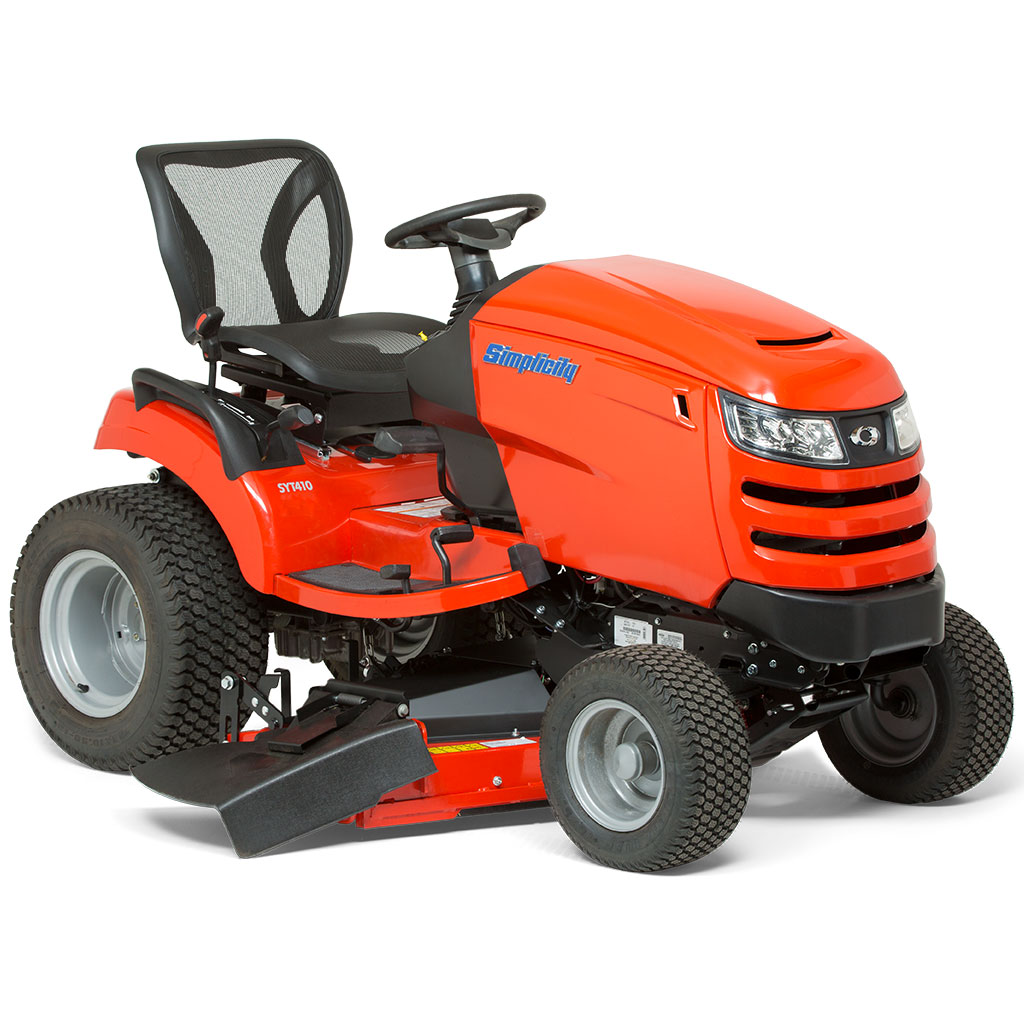

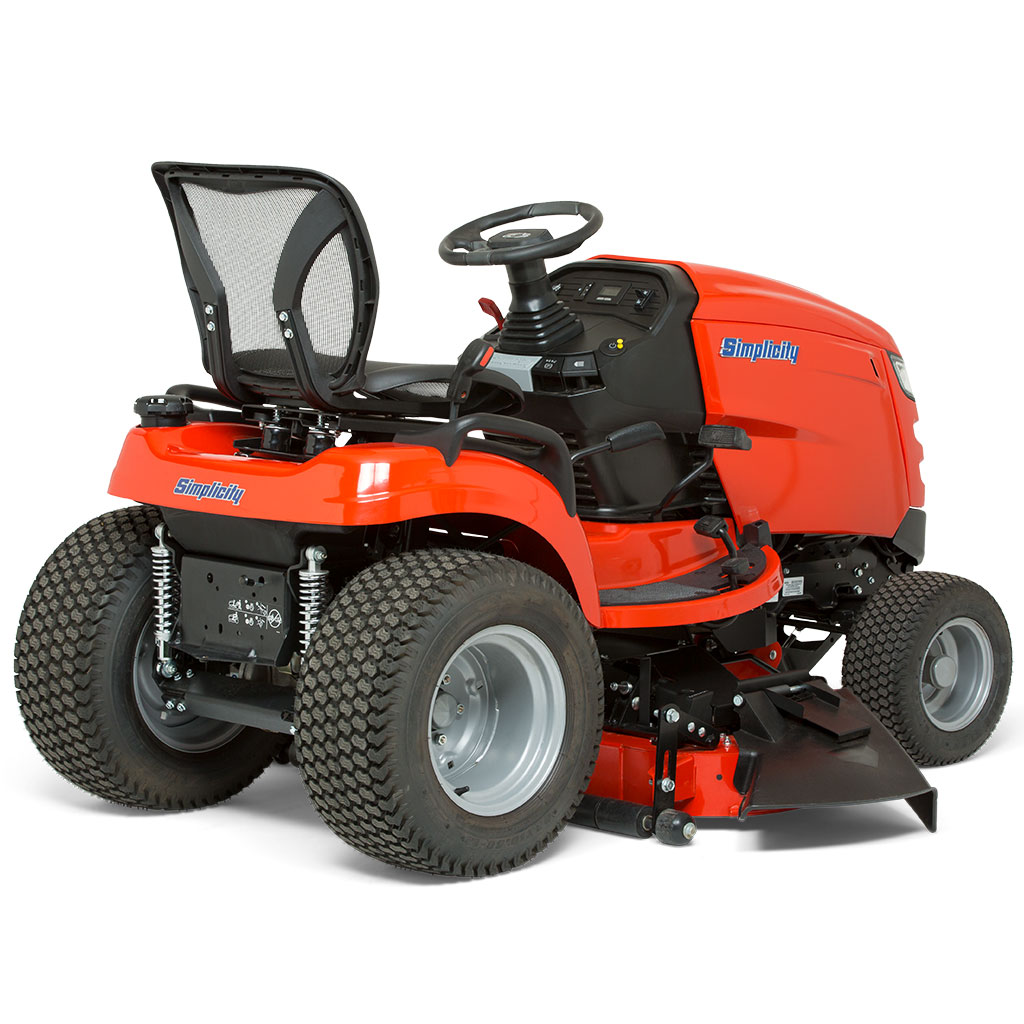

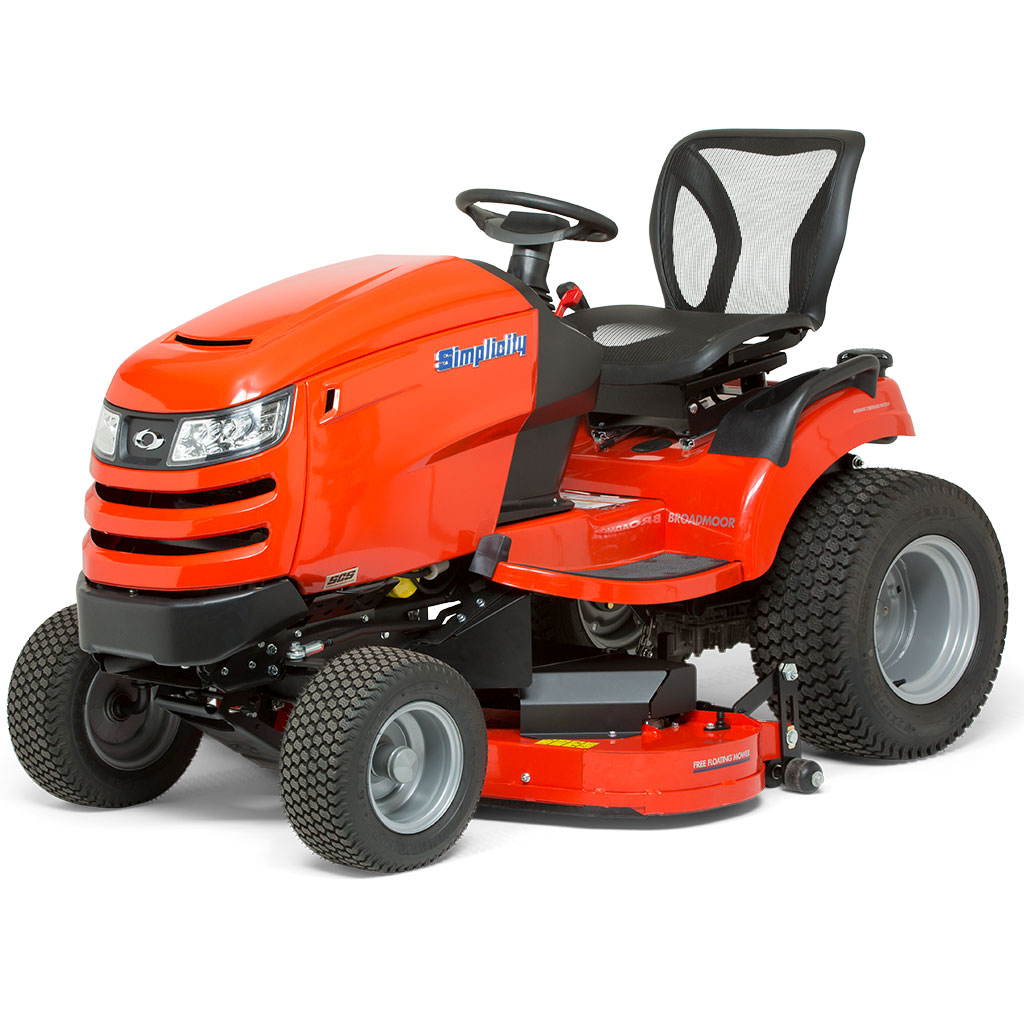

Simplicity Broadmoor™ Lawn Tractor

Features

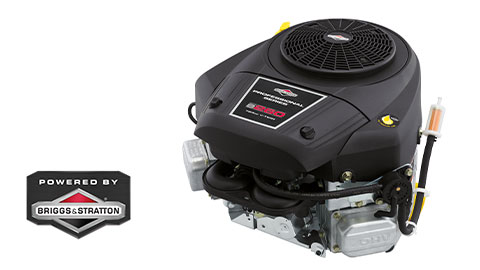

BRIGGS & STRATTON® ENGINE

The Briggs & Stratton Professional Series™ V-Twin engine features Electronic Fuel Management (EFM) providing consistent, automotive-style starting and proven performance.

HIGH SPEED TRANSMISSION

The Tuff Torq® high speed transmission offers a hydrostatic drive for an automotive-like feel and allows you to operate the machine at higher speeds.

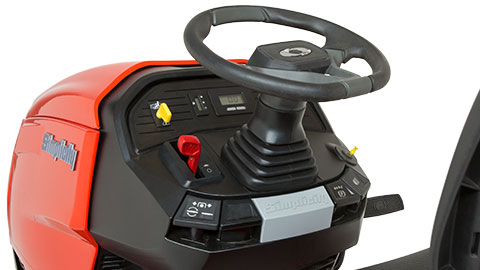

CONTROL PANEL

The panel includes push button starting, fuel gauge and maintenance reminders providing a premium experience.

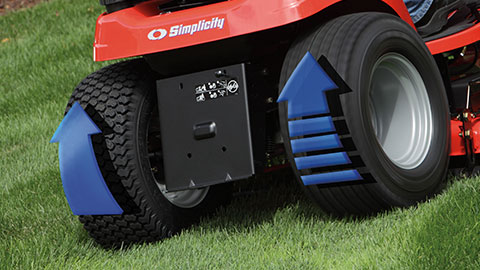

ACT™

With Automatic Controlled Traction™ (ACT), drive power is continuously supplied to both rear tyres maintaining superior traction and lessening turf damage.

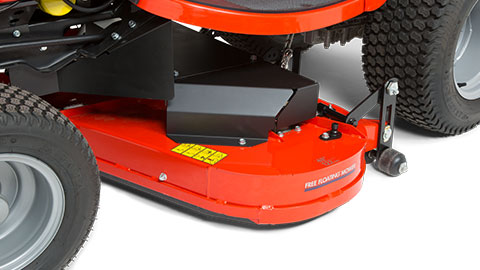

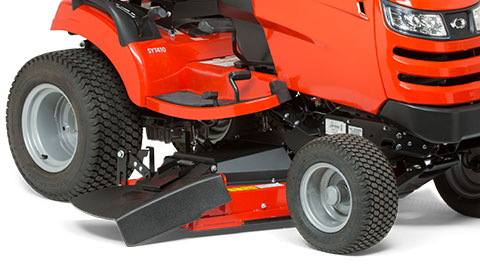

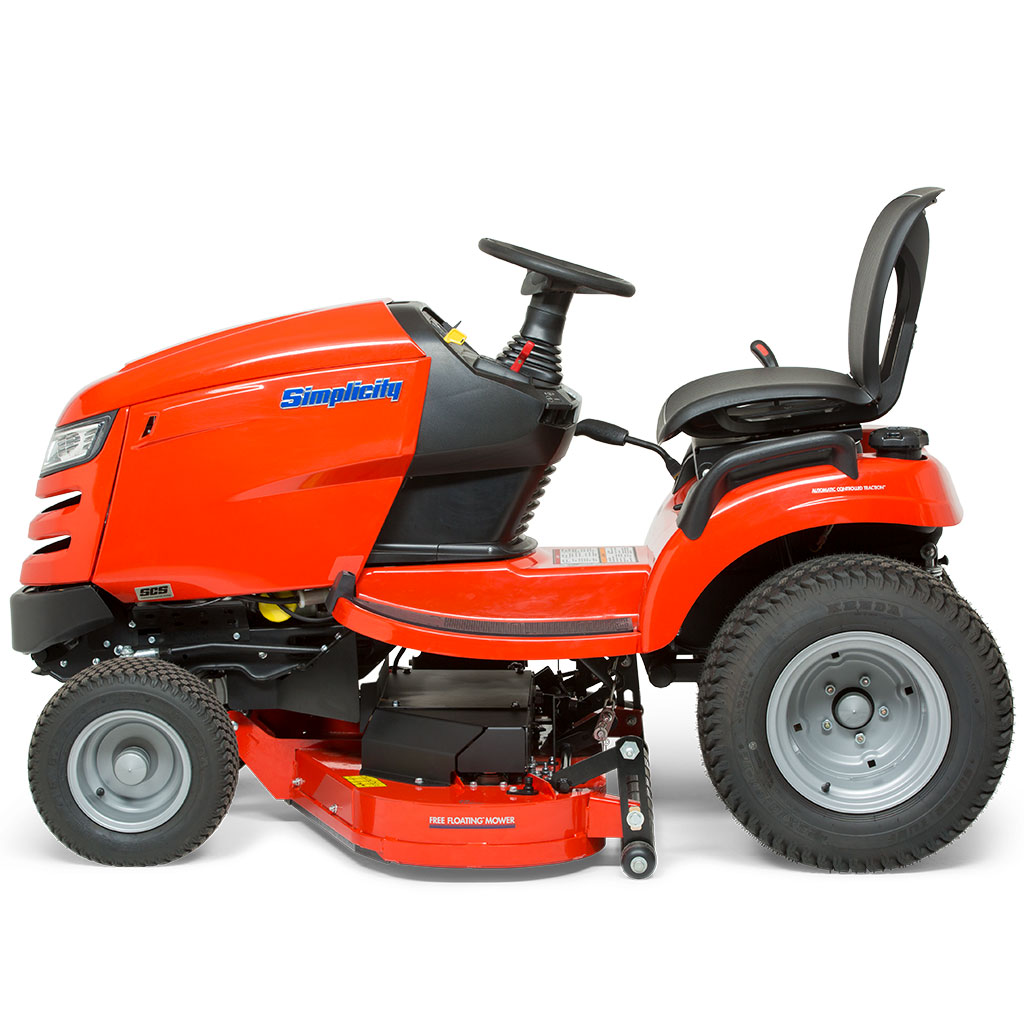

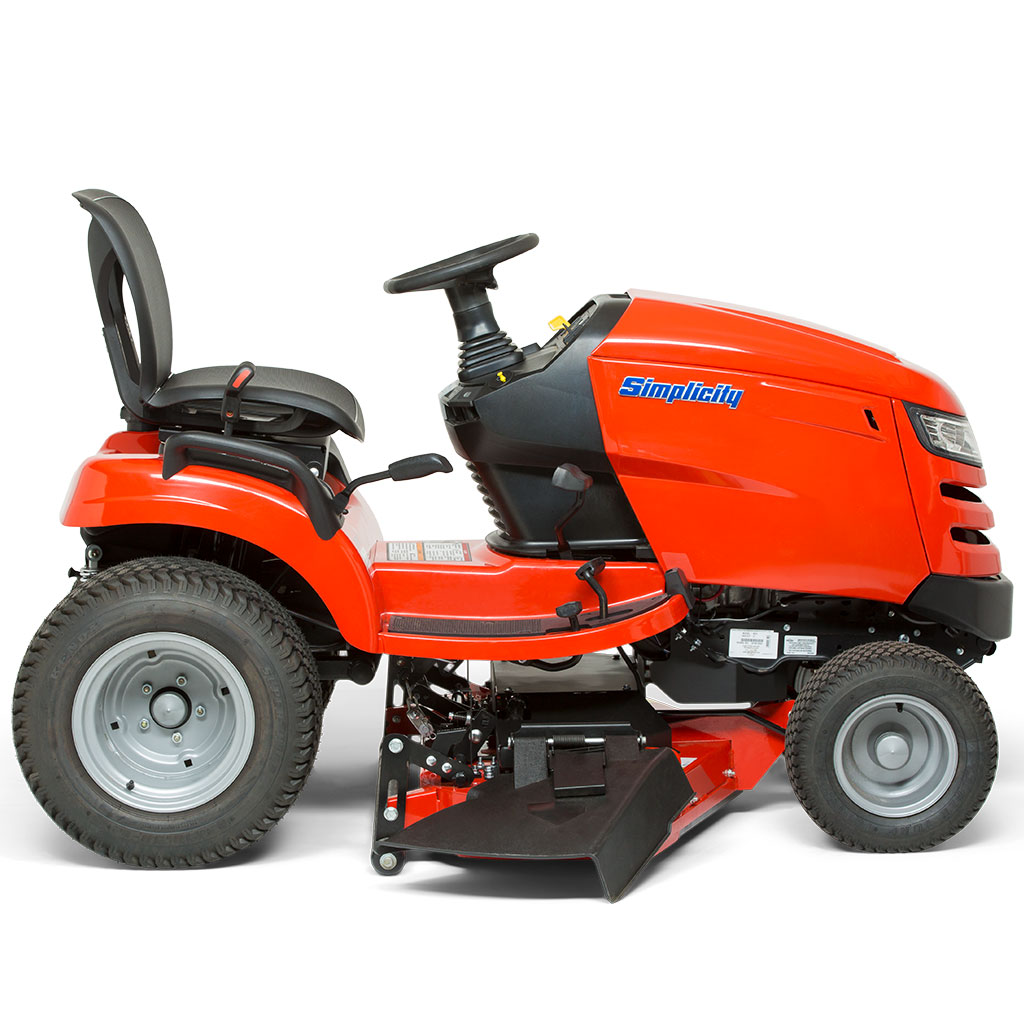

FREE FLOATING™ MOWER DECK

Simplicity’s signature Free Floating™ mower deck allows the deck to follow the contours of your lawn giving a scalp-free cut. The full-width rear rollers provide a smooth finish allowing you to create stripes.

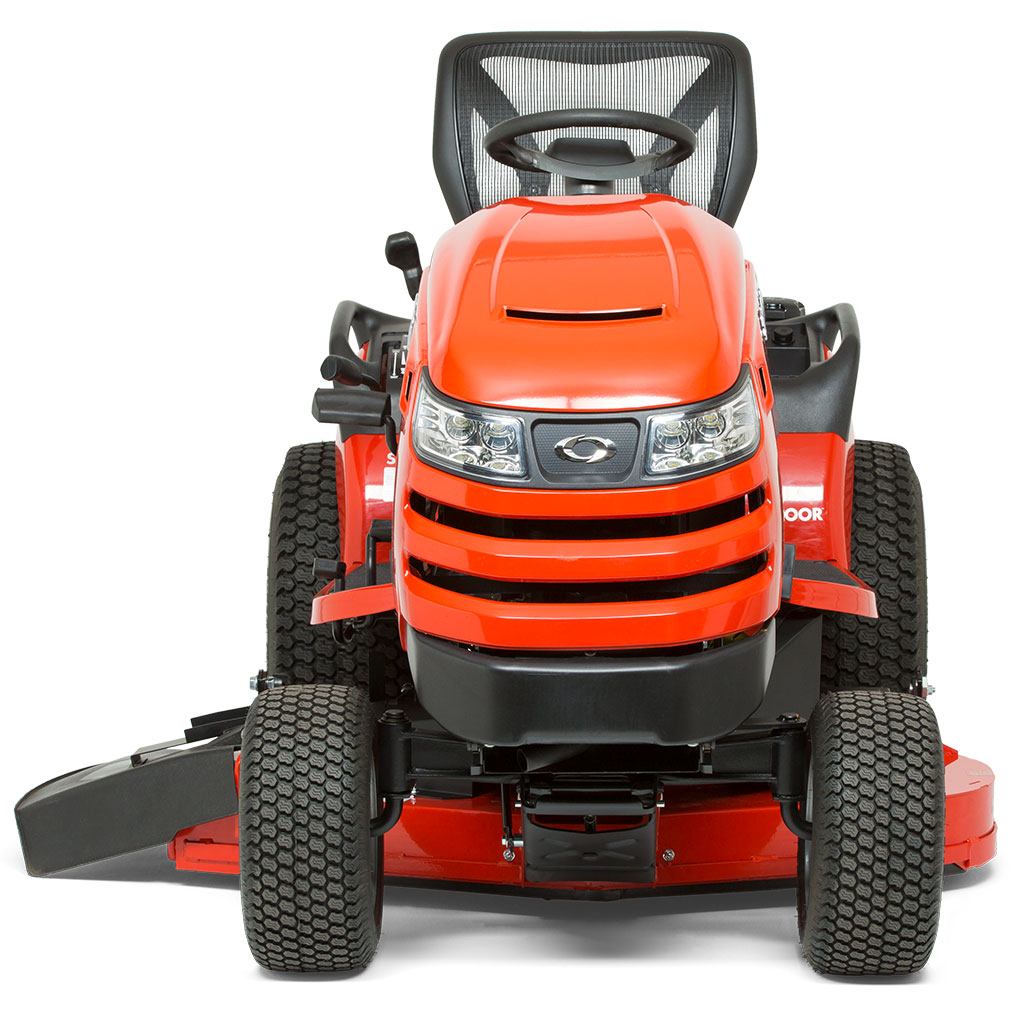

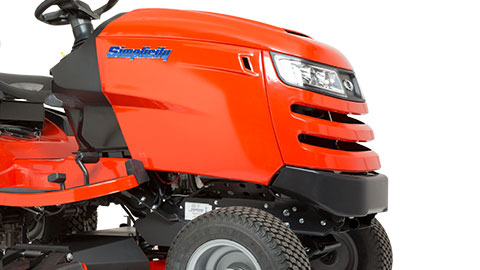

STEEL BUMPER & LED LIGHTS

The steel bumper adds extra durability to the lawn tractor while the powerfull LED headlights light your path.

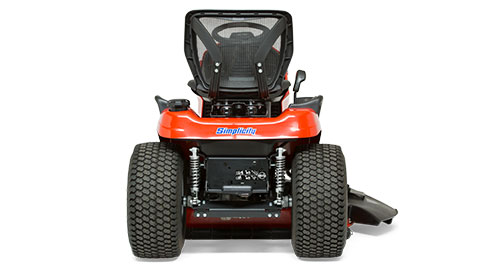

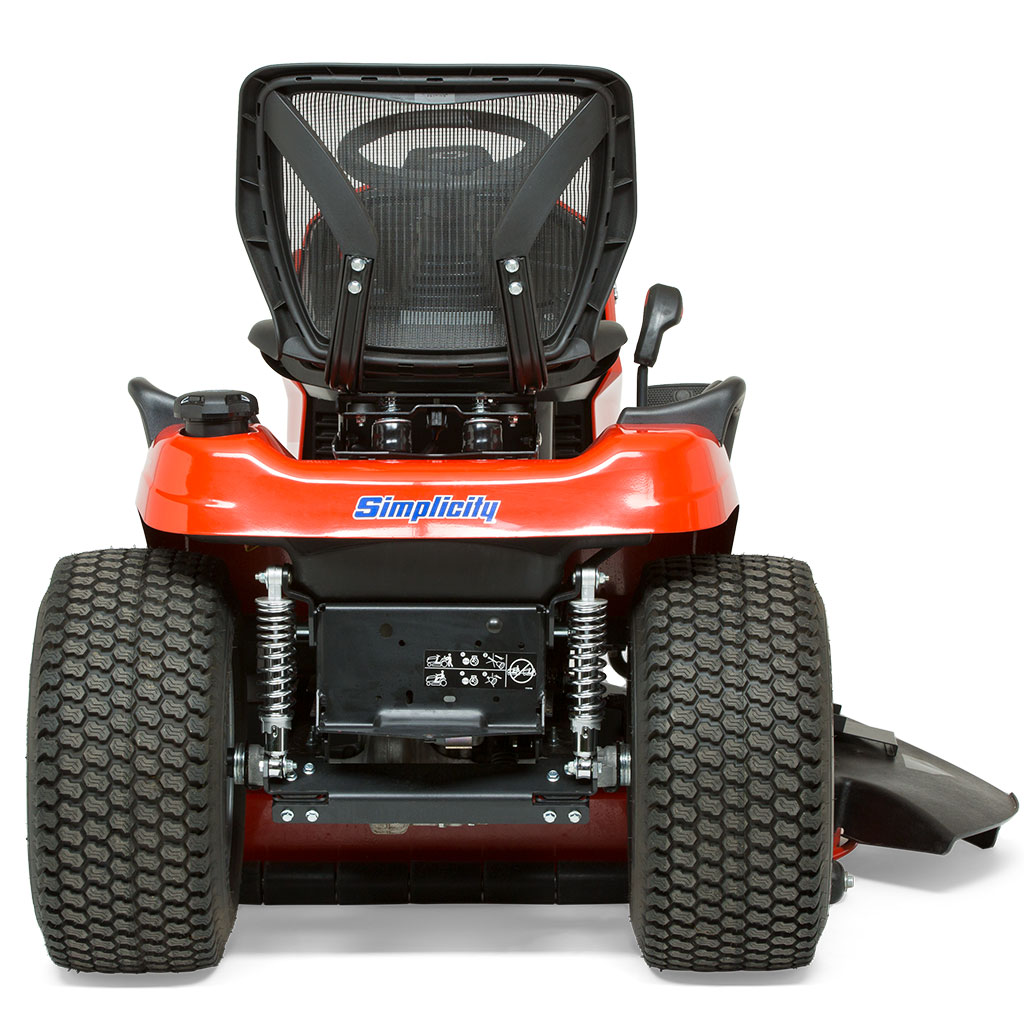

SCS SYSTEM

The exclusive Suspension Comfort System™, complete with rear shock absorbers, provides 25% less impact felt than a tractor without suspension, giving you more comfort at a consistent speed. Results of suspension depend on lawn conditions.

Specifications

Model Name

SYT410

Engine Brand

Briggs & Stratton

Engine Model

Professional Series™ 8260 PXi V-Twin OHV, EFM

Cylinders

Starting

Electric, Push Button Start

Fuel Tank Capacity (l)

Transmission Brand

Tuff-Torq® K62 High Speed

Transmission Type

Hydro with ACT™

Ground Speed - Fwd (km/h)

0 - 9,7

Ground Speed - Rev (km/h)

0 - 6,1

Frame

Steel

Front Axle

Cast Iron

Front Tyres (in)

16 x 6,5

Rear Tyres (in)

22 x 10

Turning Radius (cm)

Seat

High-Back Mesh, Adjustable

Cutting Width

48” (122cm)

Mower Deck

Free Floating™

Mower Deck Type

Fabricated Steel

Deck / Attachment Lift

Mechanical

Blade Engagement

Electric

Rear Rollers

Full-Width Rollers

Number of Blades

Cutting Height (cm)

3,2 - 10,2

Cutting Height Positions

Infinite / Electric

Washout Port

Standard

Headlights

Standard (LED)

Cruise Control

Yes

Hour Meter

Yes

Mulch Kit/Plug

Optional

Length (cm)

198

Width (cm)**

150

Height (cm)

119

Wheelbase (cm)

131

Weight (kg)

328

Residential Warranty (Product) ***

3-Year Limited

Mower Deck Removal

Quick Hitch™

Fuel GaugeLocation

Yes, electronic in dash

Automatic Controlled Traction

Yes

Rear Suspension

SCS™ - Rear

Power Steering

Electric

Maintenance Monitor

Yes

*Results of suspension depend on lawn conditions.

**Measured with deflector down.

***Applies to residential use only. See operator’s manual for complete warranty details (www.simplicitymfg.eu).

Accessories

MULCH KIT WITH ELIMINATOR® BLADES***

The Eliminator® mulching blades*** provide superior cutting performance and more versatility (1696909).

TRIPLE BAG COLLECTOR

Easily collect grass clippings into a triple bag collector. (1696358)

Requires: Deck Boot Adapter (1696672)

TURBO FAN

Turbo Fan (1696750)

WEIGHT CARRIER, FRONT

Weight Carrier, Front (1694155SM)

Requires: Weight, 33Lbs, 15 kg (1691319SM) - Weight, 50Lbs, 22 kg (1692939SM)

WEIGHT CARRIER, REAR

Weight Carrier, Rear (1696323YP)

Requires: Weight, 33Lbs, 15 kg (1691319SM) - Weight, 50Lbs, 22 kg (1692939SM)

WHEEL WEIGHTS

Wheel Weights, 14 kg. Needs 2 (1696352YP)

DOZER BLADE

Dozer Blade, 42” (1695939)

Requires: Wheel Weights, 14 kg (1696352YP) - Tyre Chains (1695092SM)

TYRE CHAINS, 22"X 10" TYRES

Tyre Chains, 22” x 10” Tyres (1695092SM)

Broadmoor™ SYT410
